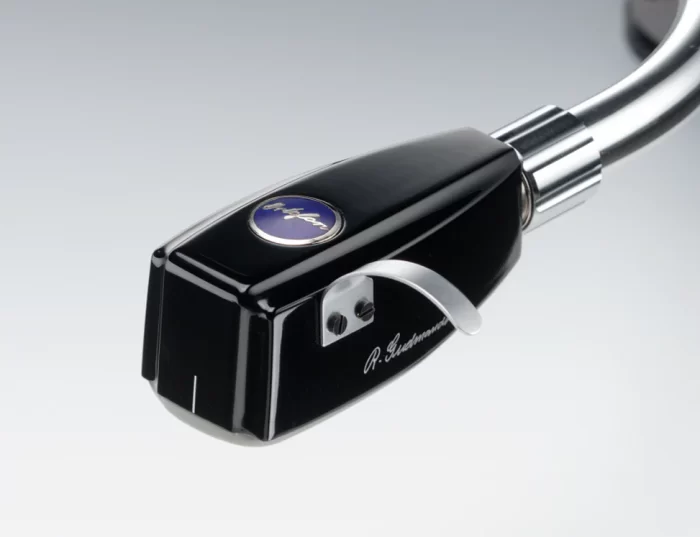

Ortofon SPU Meister Silver G MkII
![The Ortofon SPU Meister Silver G MkII has been improved on coil winding material, stylus, and magnet. The masterpiece of Mr. Robert Gudmandsen, the SPU Meister Silver was introduced in 1996 as a technological improvement of great importance. Ortofon has succeeded in having the purest silver wire ever produced for the coil winding process.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Ortofon-SPU-Meister-Silver-G-MkII-400x307.webp)
Ortofon SPU Meister Silver G MkII
Η Ortofon SPU Meister Silver G MkII έχει βελτιωθεί σε υλικό περιέλιξης πηνίου, βελόνα και μαγνήτη. Το αριστούργημα του κ. Robert Gudmandsen, η κεφαλή κινητού πηνίου SPU Meister Silver παρουσιάστηκε το 1996 ως μια τεχνολογική βελτίωση μεγάλης σημασίας. Η Ortofon πέτυχε να έχει το πιο καθαρό ασημένιο σύρμα που έχει παραχθεί ποτέ για τη διαδικασία περιέλιξης πηνίου.
Ortofon SPU Meister Silver G MkII
The Ortofon SPU Meister Silver G MkII has been improved on coil winding material, stylus, and magnet. The masterpiece of Mr. Robert Gudmandsen, the SPU Meister Silver was introduced in 1996 as a technological improvement of great importance. Ortofon has succeeded in having the purest silver wire ever produced for the coil winding process.
The SPU Meister Silver GM MkII has been improved on coil winding material, stylus and magnet.
The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.
The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
Ortofon SPU Meister Silver G MkII Technical data
Output voltage at 1000 Hz 5cm/sec – 0,3 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency response 20 – 20 kHz +2/-1 dB
Tracking ability at 315 Hz at recommended tracking force *) > 70 μm
Compliance, dynamic, lateral – 8 μm/mN
Stylus type – Nude elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 3.0-5.0 g (30-50 mN)
Tracking force recommended – 4.00 g (40 mN)
Tracking angle – 20º
*) Typical value
Internal impedance, DC resistance – 3 ohm
Recommended load impedance > 10 ohm
Coilwire material – Silver, 6-nines
Cartridge body material – Ground wood and resin composite
Cartridge colour – Shiny black
Cartridge Weight – 30 gram
