Audio-Technica AT-OC9XEN

Περιγραφή

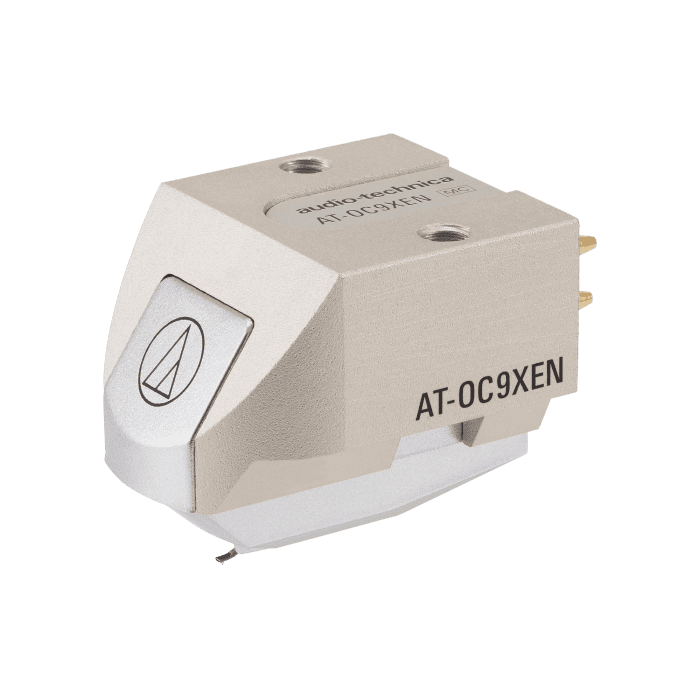

Audio-Technica AT-OC9XEN

Η κεφαλή Audio-Technica AT-OC9XEN είναι κεφαλή κινητού πηνίου -mc- με βελόνα Elliptical Nude και 0.35 mV έξοδο, με διαχωρισμό καναλιών 25 dB (1 kHz) και απόκριση συχνότητας 20 – 30,000 Hz.

• Overview AT-OC9XEN
  The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
• The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
• Specifications Cartridge & Stylus
  Frequency Response 20 – 30,000 Hz
  Channel Separation 25 dB (1 kHz)
  Vertical Tracking Angle 20 degrees
  Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
  Stylus Construction Nude square shank
  Recommended Load Impedance Min 100 Ohms
  Coil Impedance 12 Ohms (1 kHz)
  DC Resistance 12 Ohms
  Coil Inductance 25 μH (1 kHz)
  Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
  Output Channel Balance 1.5 dB (1 kHz)
  Stylus Shape Elliptical Nude
  Cantilever Aluminium pipe
  Static Compliance 20 x 10 – 6 cm / dyne
  Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
  Mounting 1/2” centers / Threaded inserts
  Cartridge Weight 7.6 g
  Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
  Accessories Included 1 non magnetic screw driver
  1 brush
  2 washers
  4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
  1 plastic protector
  Body Material Aluminium
  Model AT-OC9XEN
  Stylus Size 0.3 x 0.7 mil
  Terminal Pins Brass
  Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
