Audio-Technica VM510CB
Η κεφαλή Audio-Technica VM510CB είναι κεφαλή κινητού μαγνήτη -mm- με σφαιρική βελόνα και 5.0 mV έξοδο με μεγάλο διαχωρισμό καναλιών 25 dB (1 kHz) και απόκριση συχνότητας 20 – 20,000 Hz.
- Overview VM510CB

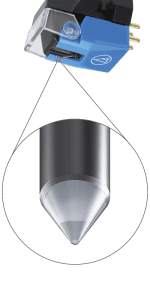

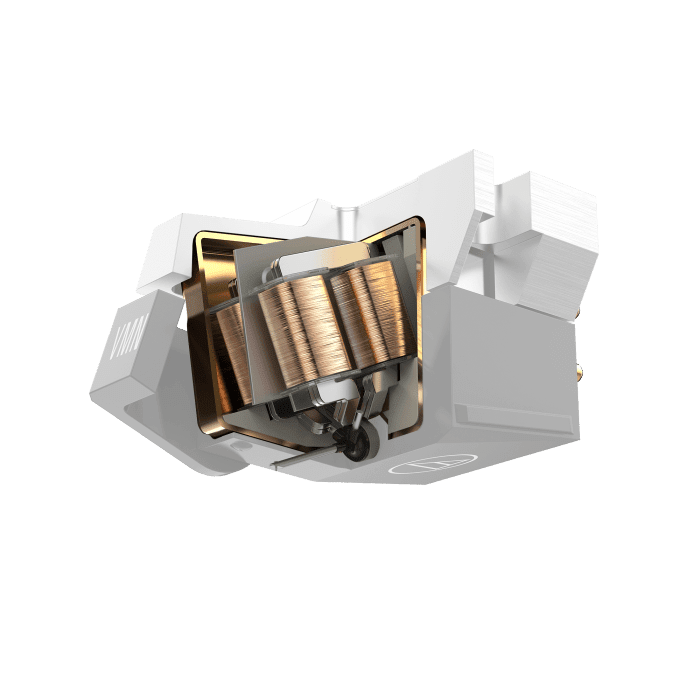

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware. - Features VM510CB
The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware. - Specifications Cartridge & Stylus
Frequency Response 20 – 20,000Hz
Channel Separation 25dB (1kHz)
Vertical Tracking Angle 23˚
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000Ω
Coil Impedance 2,700Ω (1kHz)
Output Voltage 5.0mV (1kHz, 5cm/sec.)
Output Channel Balance 1.5dB (1kHz)
Stylus Shape Conical Bonded
Cantilever Aluminium Pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
Mounting 1/2” centres
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance 100 – 200pF
Replacement Stylus VMN10CB
Stylus Size 0.6 mil
Type VM Type
Weight 6.4g
