Περιγραφή

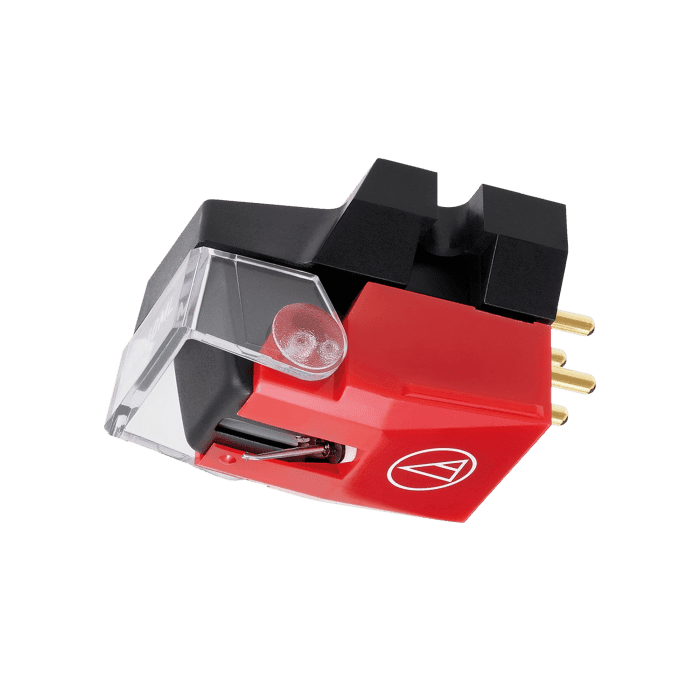

Audio-Technica VM540ML
Η κεφαλή Audio-Technica VM540ML είναι κεφαλή κινητού μαγνήτη -mm- με Nude Square Shank βελόνα και 4.0 mV έξοδο με μεγάλο διαχωρισμό καναλιών 28 dB (1 kHz) και απόκριση συχνότητας 20 – 27,000 Hz.
- Overview VM540ML

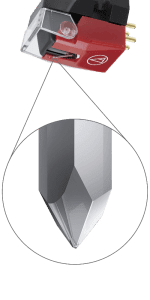

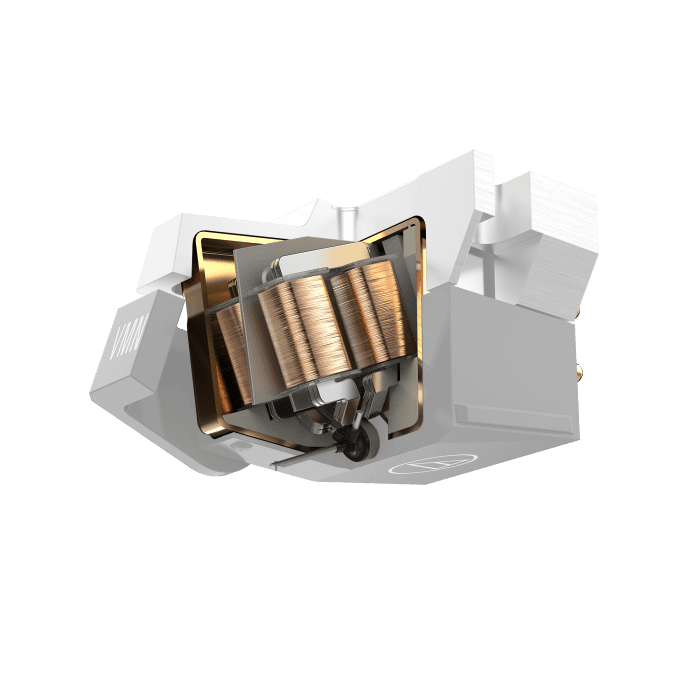

The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware. - Features
The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware. - Specifications Cartridge & Stylus
Frequency Response 20 – 27,000Hz
Channel Separation 28dB (1kHz)
Vertical Tracking Angle 23˚
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Nude Square Shank
Recommended Load Impedance 47,000Ω
Coil Impedance 2,700Ω (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Output Channel Balance 1.0dB (1kHz)
Stylus Shape Microlinear
Cantilever Aluminium Tapered Pipe
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Mounting 1/2” centres
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
Recommended Load Capacitance 100 – 200pF
Replacement Stylus VMN40ML
Stylus Size 0.12 x 2.2 mil
Type VM Type
Weight 6.4g
Audio-Technica VM540ML
