Ortofon MC Verismo

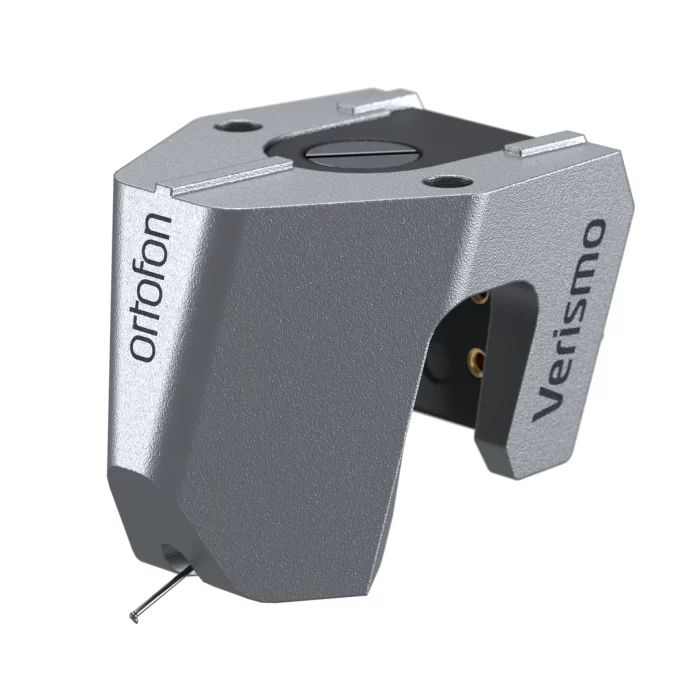

![Ortofon MC Verismo. This moving coil head from Ortofon has a 0.2 mV output, Special polished Nude Ortofon Replicant 100 needle and Diamond cantilever and offers top sound quality.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Ortofon-MC-Verismo-400x297.webp)
Ortofon MC Verismo
Η σειρά Ortofon Exclusives των κεφαλών Moving Coil με την υψηλότερη απόδοση έχει πλέον επεκταθεί για να συμπεριλάβει ένα νέο κορυφαίο μοντέλο – την MC Verismo. Η MC Verismo έχει αναπτυχθεί με βάση την εκτεταμένη γνώση μας σχετικά με τις ιδιότητες των κραδασμών, τα διαφορετικά σχήματα και τα χαρακτηριστικά των υλικών, καθώς και τις ικανότητες στον μαγνητισμό, τη μηχανική σχεδίαση και τις τεχνολογίες. Η MC Verismo θα προσφέρει αναμφίβολα ήχο που απλά πρέπει να βιώσετε.
Ortofon MC Verismo
The Ortofon Exclusives Series of highest performing Moving Coil cartridges has now been expanded to include a new premier model – the MC Verismo. The MC Verismo has been developed based on our extensive knowledge of vibration properties, different shapes and materials characteristics, as well as competences in magnetism, mechanical design and technologies. The MC Verismo will undoubtedly provide sound which simply has to be experienced.
The search for realism
Accuracy level
The name Verismo is derived from the Italian “vero”, meaning “true”, and is Italian for “realism”. Versimo was a post-Romantic operatic genre that had its origins in an Italian literary movement in the late 19th and early 20th centuries. Verismo’s operatic tradition is associated with Italian composers such as Pietro Mascagni, Ruggero Leoncavallo, Umberto Giordano, Francesco Cilea, and Giacomo Puccini, who sought to portray the world with greater realism.
At Ortofon, our ultimate purpose is to continually raise the bar for true, faithful, and accurate reproduction of the recorded sound. It is to provide the ultimate musical experience through a mixture of innovation and technical expertise, creating unique value for all listeners by allowing them to reveal music’s true inner emotions.
Ortofon Replicant 100
Stylus
One of the preconditions for linear reproduction with a wide frequency range and optimal tracking performance is a diamond – the shape of which is as close as possible to the original cutting stylus.
As in all Exclusives series cartridges, the MC Verismo makes use of the Ortofon’s Replicant 100 diamond. This Line Contact type stylus distinguishes itself by having a narrow and long contact surface, which is as close as possible to the original cutting stylus. This ensures the most accurate reproduction, lowest distortion, and extended frequency range.
Advanced technology
Cartridge body
The housing of the Verismo cartridge is made in Titanium with the Selective Laser Melting (SLM) technique pioneered by Ortofon. This technique allows for precise control of the density of the body material, allowing for extremely high internal damping.
The SLM technology and high precision process is considered an engineering breakthrough, the SLM process welds fine particles of Titanium together, layer-by layer, to construct a single piece body devoid of extraneous material.
A perfect match
Compatibility
In the MC Verismo, the cartridge’s contact with the tonearm takes place through three well-defined contact points placed on the top side of the cartridge. This means that the mechanical integration of the cartridge and the tonearm arm is always absolutely perfect and will result in a significant and breathtaking increase in dynamics, resolution, and richness in detail.
With optimized weight and moderate compliance to suit the majority of modern tonearms, the MC Verismo is easily compatible with an endless array of contemporary high-end turntable equipment.
Redefined boundaries
Cantilever
The addition of a solid Diamond cantilever provides the best possible interface between the stylus and armature, owing to its hardness and crystal structure. The improvements found in the use of a Diamond cantilever have redefined the boundaries of analog reproduction, presenting greater inner detail, subtlety, and depth like never before.
Higher efficiency magnet system
Magnet system
The magnet system is based on an extremely strong, compact neodymium magnet, which makes the generator system both compact and lighter through its minimal dimensions.
Much like its predecessors, the MC A95 and the MC Windfeld Ti, the MC Verismo employs the special designed armature comprised of a metal alloy which is less magnetic than normal iron. This provides noteworthy benefit to the dynamic capabilities of the cartridge.
The new armature achieves extreme precision in each coil turn in all layers. This enables the MC Verismo to abtain a higher degree of channel separation, while simultaneously offering lower distortion and better channel balance.
Using Ortofon’s Aucurum coils of gold-plated, 6NX oxygen-free copper allows for zero-loss transmission of the diamond’s movements via its Diamond cantilever. This combination makes use of low moving mass and an extremely high degree of rigidity.
Ortofon MC Verismo Specifications
Output voltage at 1 kHz, 5cm/sec 0.2 mV
Channel seperation at 1 kHz 25 dB
Channel seperation at 15 kHz 20 dB
Frequency response 20 Hz – 20 kHz +2 dB/-1 dB
Tracking ability at 315Hz at recommended tracking force 80 μm
Compliance, dynamic, lateral 13 μm/mN
Stylus type Special polished Nude Ortofon Replicant 100 on Diamond cantilever
Stylus tip radius r/R 5/100 μm
Tracking force range 2.5 – 2.8 g (25-28 mN)
Tracking force, recommended 2.6 g (26mN)
Tracking angle 23°
Internal impedance, DC resistance 7 Ω
Recommended load impedance 10 Ω
Cartridge body material SLM Titanium
Cartridge colour Silver
Cartridge weight 9.5 g
