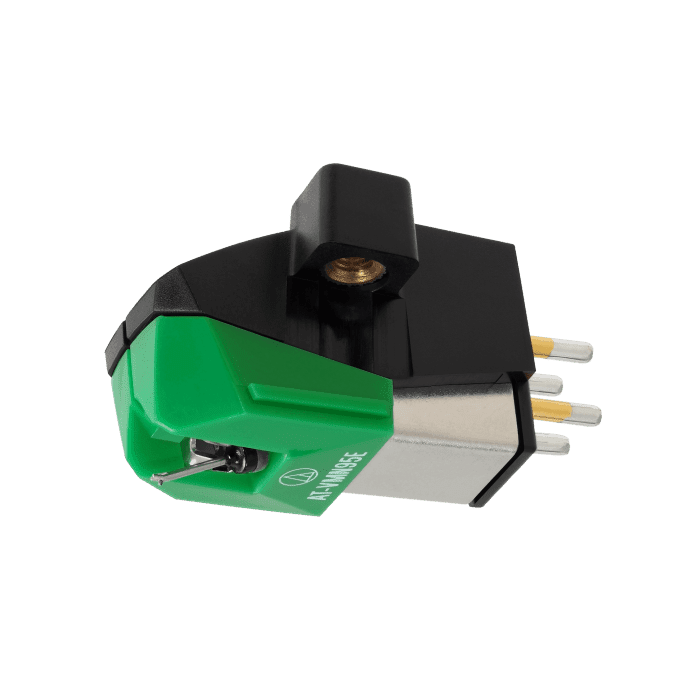

Audio Technica AT-VM95E

Περιγραφή

Audio Technica AT-VM95E

Η κεφαλή Audio Technica AT-VM95E είναι κεφαλή κινητού μαγνήτη -mm- με ελλειπτική βελόνα και 4.0 mV έξοδο με μεγάλο διαχωρισμό καναλιών 20 dB (1 kHz) και απόκριση συχνότητας 20 – 22,000 Hz. Η κεφαλή δέχεται ανταλλακτική βελόνα.

• Overview
  AT-VM95E
  This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
• Features
  This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
• Specifications
  Cartridge & Stylus
  Frequency Response 20 – 22,000 Hz
  Channel Separation 20 dB (1 kHz)
  Vertical Tracking Angle 23°
  Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
  Stylus Construction Bonded Round Shank
  Recommended Load Impedance 47,000 Ω
  Coil Impedance 3.3 kΩ (1 kHz)
  DC Resistance 485 Ω
  Coil Inductance 550 mH (1 kHz)
  Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
  Output Channel Balance 2.0 dB (1 kHz)
  Stylus Shape Elliptical
  Cantilever Aluminium Pipe
  Static Compliance 17 x 10 – 6 cm / dyne
  Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
  Mounting 1/2” centres
  Cartridge Weight 6.1g
  Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
  Accessories Included Two 11 mm installation screws;
  Two 8 mm installation screws;
  Two washers
  Model AT-VM95E
  Recommended Load Capacitance 100-200 pF
  Replacement Stylus AT-VMN95E
  Stylus Size 0.3 x 0.7 mil
  Type VM Stereo Dual Magnet
  Wire Used for Coil T.P. Copper
