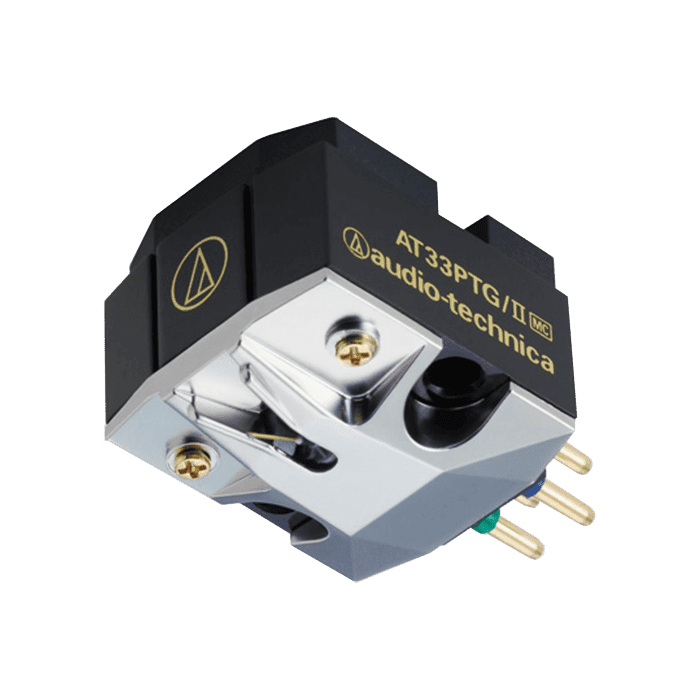

Audio-Technica AT-33PTG II
Η κεφαλή Audio-Technica AT-33PTG II είναι κεφαλή κινητού πηνίου -mc- με βελόνα Microlinear, Gold-plated solid boron cantilever και 0.3 mV έξοδο, με διαχωρισμό καναλιών 30 dB (1 kHz) και απόκριση συχνότητας 15 – 50,000 Hz.
Overview AT33PTG II Moving Coil Cartridge
AT33PTG II Moving Coil Cartridge. Advanced nude tapered boron and weight reduction, Coil impedance refined from 17W to 10W. High performance and long-life Microlinear stylus with an Average product lifetime of around 1000 hours. Better high range perform
- Features AT33ptg II Moving Coil Cartridge

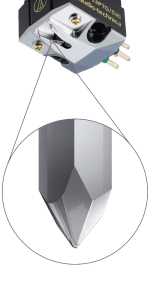

Advanced nude tapered boron and weight reductionThis model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17Ω to 10Ω. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge. High performance and long-life Microlinear stylusMicrolinear (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.
- “Outstanding Magnetic properties”
Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke with high saturation flux density and outstanding magnetic properties.
- “Enables purer transmission”
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission.
- “Limits unnecessary vibration”
The VC mould that affixes the coil is made with hard synthetic resin containing potassium titanate to make it strong and rigid.
- Specifications Cartridge & Stylus
Frequency Response 15 – 50,000Hz
Channel Separation 30dB (1kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude Square Shank
Recommended Load Impedance Min 100Ω
Coil Impedance 10Ω (1kHz)
DC Resistance 10Ω
Coil Inductance 22µH (1kHz)
Output Voltage 0.3mV (1kHz and 5cm/sec.)
Output Channel Balance 1dB (1kHz)
Stylus Shape Microlinear
Cantilever Gold-plated solid boron
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Mounting 1/2″ Centers
Accessories Included 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
Body Material Aluminium/Synthetic Resin
Stylus Curvature Radius Micro linear
Terminal Pins Brass
Type Dual Moving Coil
