Περιγραφή

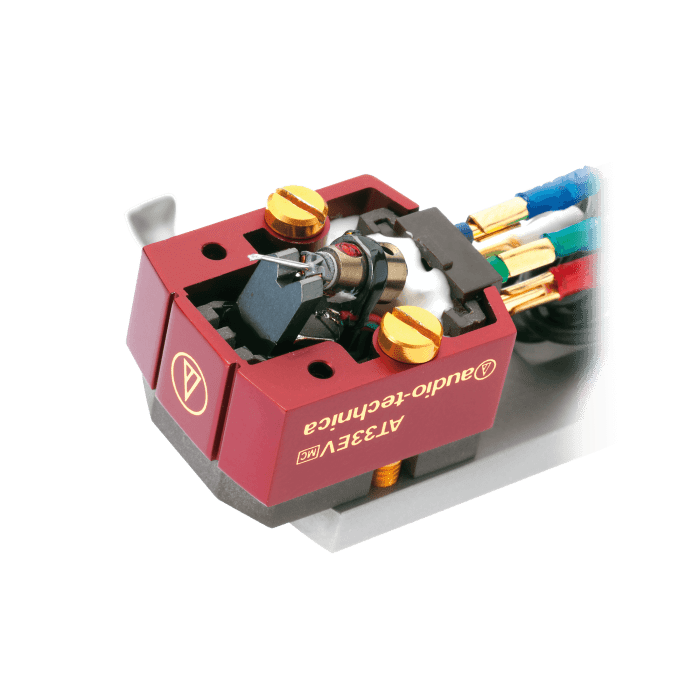

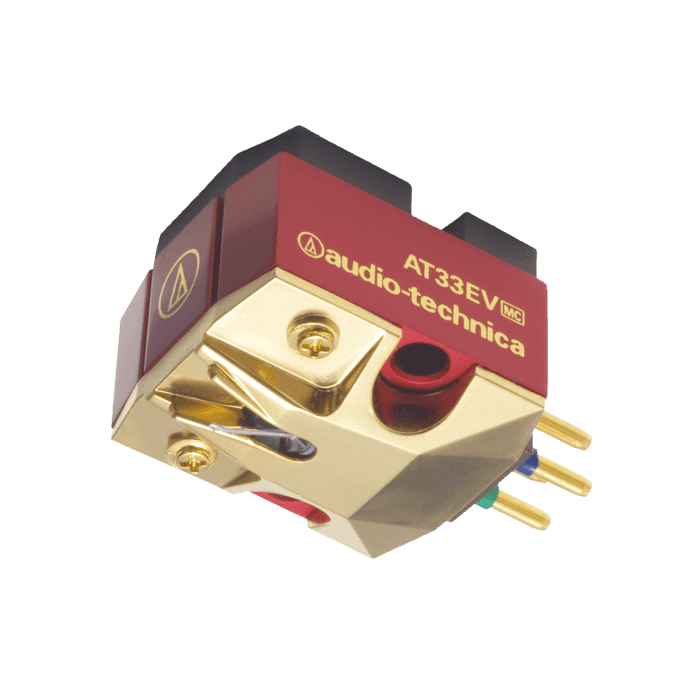

Audio-Technica AT-33EV
Η κεφαλή Audio-Technica AT-33EV είναι κεφαλή κινητού πηνίου -mc- με βελόνα Elliptical, Duralumin cantilever και 0.3 mV έξοδο, με διαχωρισμό καναλιών 30 dB (1 kHz) και απόκριση συχνότητας 15 – 50,000 Hz.
- Features
The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission. - Specifications Cartridge & Stylus
Frequency Response 15 – 50,000Hz
Channel Separation 30dB (1kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude Square Shank
Recommended Load Impedance More than 100Ω (when head amp connected)
Coil Impedance 10Ω (1kHz)
DC Resistance 10Ω
Coil Inductance 22µH (1kHz)
Output Voltage 0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance 0.5dB (1kHz)
Stylus Shape Elliptical
Cantilever Duralumin
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Mounting 1/2″ Centers
Dimensions H16×W16.6×D26.5mm
Accessories Included Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material Aluminium/Synthetic Resin
Stylus Curvature Radius 0.3 x 0.7 mil
Terminal Pins Brass
Type Dual Moving Coil
Weight 6.9g
Audio-Technica AT-33EV
