Ortofon SPU Classic GM MK II

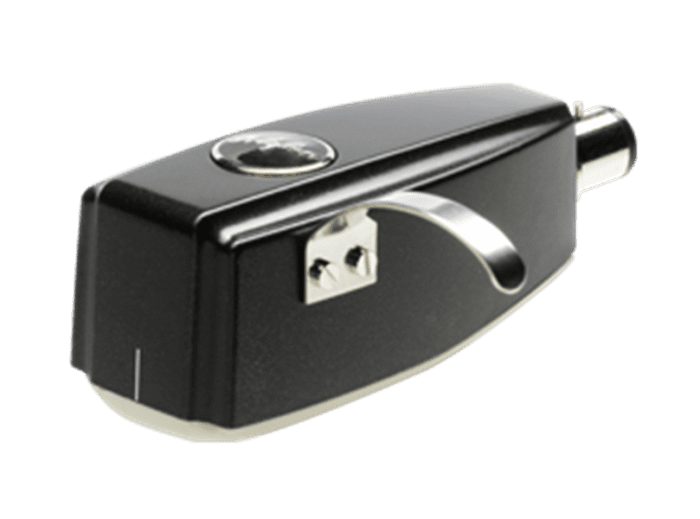

![The Ortofon SPU Classic GM MK II is a Moving Coil cartridge with an 18 µm spherical stylus profile. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Ortofon-SPU-Classic-GM-MK-II-400x297.png)
Ortofon SPU Classic GM MK II a moving coil cartridge with spherical stylus
Η κεφαλή Ortofon SPU Classic GM MK II είναι μια κεφαλή Moving Coil με σφαιρικό προφίλ βελόνας 18 μm. Η σειρά SPU Classic ενσωματώνει την ουσία των αυθεντικών Moving Coils και είναι μια τέλεια λύση για την αναπαραγωγή τόσο πρώιμων όσο και σύγχρονων και σύγχρονων στερεοφωνικών ηχογραφήσεων.
Ortofon SPU Classic GM MK II
The Ortofon SPU Classic GM MK II is a Moving Coil cartridge with an 18 µm spherical stylus profile. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GM MkII is known for its dynamic and powerful sound reproduction
The SPU Classic GM MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The ST-7 transformer is a perfect match for the SPU Classic GM MkII cartridge.
Ortofon SPU Classic GM MK II Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0.2 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency response – 20-20.000 Hz + 3/- 3 dB
Tracking ability at 315Hz at recommended tracking force *) > 65 µm
Compliance, dynamic, lateral – 8 µm/mN
Stylus type – Nude Spherical
Stylus tip radius – R 18 µm
Tracking force range – 3.0-5.0 g (30-50 mN)
Tracking force, recommended – 4.0 g (40 mN)
Tracking angle – 20°
*) Typical value
Internal impedance, DC resistance – 2 ohm
Recommended load impedance > 10 ohm
Cartridge body material – Ground wood and resin composite
Coilwire material – High Purity Copper (OFC)
Cartridge colour – Black matte
Cartridge weight – 30 g
