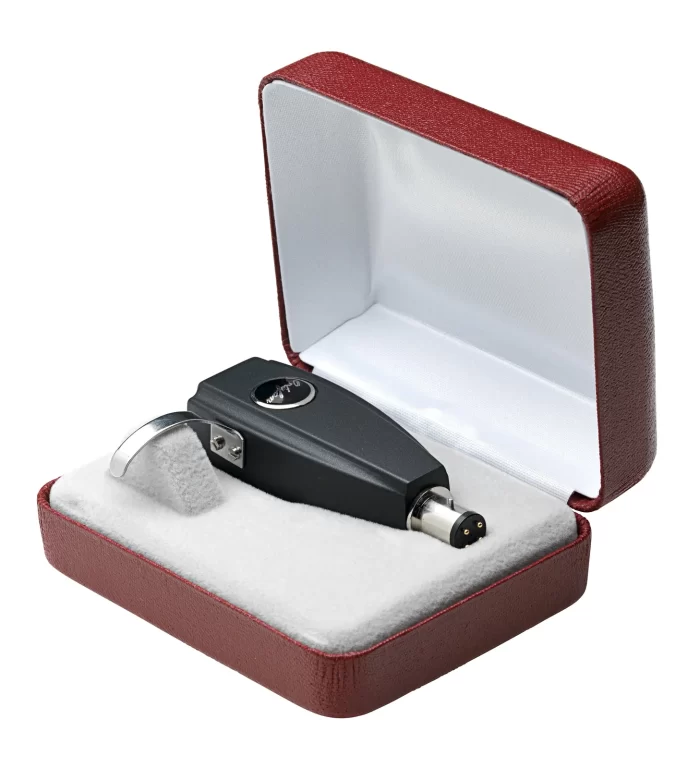

Ortofon SPU 1 E

Περιγραφή

Ortofon SPU 1 E

Ortofon SPU 1 E

Τα μοντέλα Ortofon SPU 1 E και S αποτελούν μια αξιοσημείωτη ενσωμάτωση της κλασικής τεχνολογίας Moving Coil, προσφέροντας μια ιδανική λύση για την αναπαραγωγή μιας μεγάλης γκάμα στερεοφωνικών ηχογραφήσεων, από τα πρώτα κλασικά έως τα μοντέρνα και σύγχρονα κομμάτια, με εξαιρετική τιμή-σε- αναλογία απόδοσης. Η SPU  1 E διαθέτει ελλειπτική γραφίδα, με προφίλ που παρέχει πιο λεπτομερή αναπαραγωγή ήχου και εκτεταμένη απεικόνιση.

Ortofon SPU 1 E

The SPU 1 E and S models are a remarkable embodiment of the classic Moving Coil technology, offering an ideal solution for playing back a wide range of stereo recordings, from the early classics to modern and contemporary pieces, with an outstanding price-to-performance ratio.

The SPU 1 E features an elliptical stylus, with a profile providing more detailed sound reproduction and expansive imaging.

Features
Crafted with precision, the housing of the SPU #1 cartridges is constructed from a combination of grinded wood and resin composite and features High Purity Copper armature windings and terminal leads, ensuring pristine signal transmission.

The SPU 1 E model takes sound reproduction to the next level with its elliptical stylus profile, providing a more detailed sound reproduction and expansive imaging.

Perfect solution for stereo recordings

Compatibility
With their universal connector, the SPU 1 models ensure the ability to mount the units in a wider range of tonearms with universal (SME) mount, e.g., the Ortofon Reference tonearms. The combination of SPU #1, the ST-7 Moving Coil transformer and Ortofon Reference tonearms gives a supreme experience. Sonically, the SPU #1 models are genuine SPUs, known for their full-bodied and powerful music image, minimum of intermodulation distortion, and an impressive channel separation, a perfect solution for the playback of stereo recordings.

Ortofon SPU 1 E Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 0.18 mV
Channel seperation at 1 kHz 20 dB
Channel seperation at 15 kHz 10 dB
Frequency response 20 Hz – 20 kHz 3 dB
Tracking ability at 315Hz at recommended tracking force 60 µm
Compliance, dynamic, lateral 10 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force, recommended 4.0 g (40 mN)
Tracking angle 20°
Internal impedance, DC resistance 2 ohm
Recommended load impedance 10 ohm
Coil wire material High Purity Copper (OFC)
Cartridge body material Ground wood and resin composite
Cartridge colour Black matte
Cartridge weight 28 g
