Fyne Audio F700

Περιγραφή

Fyne Audio F700

Fyne Audio F700

Αυτό το κομψό, μοντέρνο ραφιού βιβλιοθήκης ενσωματώνει τα καλύτερα από τις νέες τεχνολογίες και την τεχνογνωσία της Fyne Audio στην συμπαγή σχεδίαση ηχείων. Κατασκευασμένο στο Ηνωμένο Βασίλειο και με τεχνολογία trickle down από τη σειρά Flagship F1, το F700 διαθέτει σημειακή πηγή IsoFlare 150 mm με διαχύτη BassTrax LF με το port των χαμηλών συχνοτήτων να εκτονώνεται κάτω από το ηχείο. Η Luxury υψηλής γυαλάδας λάκα πιάνου που εφαρμόζεται σε καπλαμά μαύρου, λευκού ή καρυδιάς είναι η τελευταία πινελιά στις χειροποίητες καμπίνες του F700. Εκλεπτυσμένο, αρθρωτό και ισχυρό το F700 αναδημιουργεί έναν πραγματικά φυσικό ήχο σε μια γοητευτική και συμπαγή καμπίνα. Το τέλειο ηχείο HiFi για audiophile’s με περιορισμένο χώρο.

Fyne Audio F700

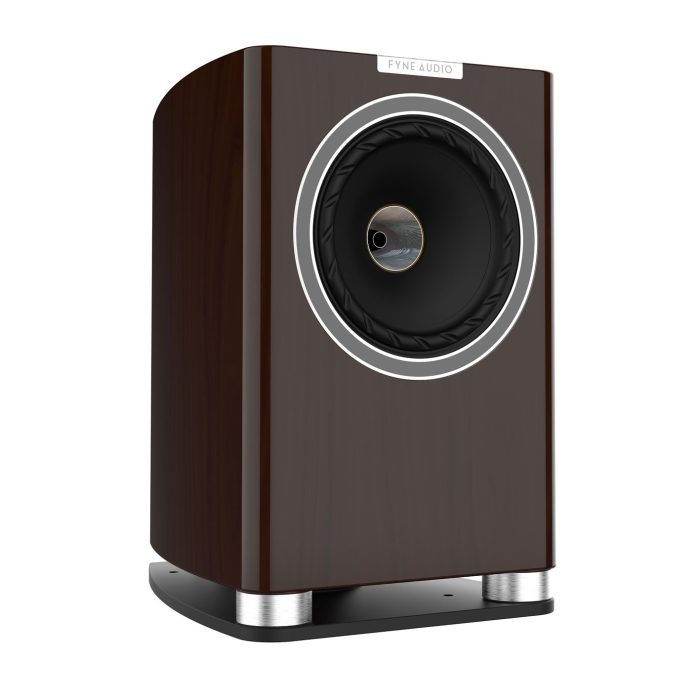

This elegant, contemporary bookshelf loudspeaker distils the best of Fyne Audio’s new technologies and expertise into a compact bookshelf design. Built in the UK and featuring trickle down technology from our Flagship F1 series, the F700 features a 150mm IsoFlare point source driver with a BassTrax LF diffuser integrated into the down firing port. Luxury high gloss piano lacquer applied to black, white or walnut veneer is the finishing touch to the F700’s handcrafted cabinets. Refined, articulate and powerful the F700 recreates a truly natural sound in a charming compact cabinet. The perfect HiFi speaker for audiophile’s with limited space.

MEET THE F700 SERIES
Refined, elegant and powerful, the Fyne Audio F700 series sets new benchmarks in loudspeaker performance and aesthetic design. Built in the UK with Fyne’s innovative point source IsoFlare drivers and BassTrax tractrix diffuser system, the five strong F700 range distils trickle-down technology from the flagship Fyne Audio F1 Series into a more affordable high-end design for the contemporary home.

Isotropic energy radiating point source drivers, magnesium compression tweeters, neodymium motors and Cryo-Lite process all hint at a range of extreme technologies at work on the inside. Curved, twin cavity tuned enclosures built from the finest birch ply, massive all metal plinths with integrated tractrix profile diffusers and lavish piano lacquer finishes craft understated luxury on the outside.

The result is an outstanding series of contemporary hi-fi speakers with unrivalled specification, breath taking aesthetics and performance that leverages the Fyne Audio teams’ decades of the expertise in designing some of the world finest loudspeakers.

CABINET
The F700 Series’ hand crafted cabinets have a uniquely sculpted shape designed to appeal to both the ear and the eye. The curve of each panel is precisely calculated to diffuse standing waves, allowing the finest musical details to shine through, while extensive internal bracing reinforces the sonic neutrality of the enclosure. Formed from high density birch plywood, chosen for its extremely low sonic colouration, the cabinet construction features a complex, twin cavity tuning system. Each cabinet is meticulously built to exacting quality standards inside and out. Luxury, high gloss piano lacquer, available in black, white or walnut veneer, is the finishing touch to the F700 Series sumptuous aesthetic.

CROSSOVER
The F700 Series crossover is the result of sourcing the very best audio components from around the world and Fyne’s extensive experience in network design. The result is a crossover of incredible neutrality, combining low loss inductors, Claritycap high grade capacitors and Van den Hul® high purity silver plated internal wiring, enhanced by our in-house Cryo-Lite process to create the cleanest signal path possible. This super-freezing and slow thawing process relieves microstress in components wiring, maximising signal transfer and delivering greater transparency to the sound. The bi-wired terminal panel uses gold plated link cables and premium quality gold plated binding posts. A fifth terminal is provided for grounding, further preventing radio frequency interference from masking fine detail.

BASSTRAX PORT SYSTEM
Fyne Audio’s flagship BassTrax Tractrix diffuser bass porting system is integrated into all F700 models. Using a large, downfiring port with a mathematically derived tractrix profile conical diffuser creates a true 360 degree LF wavefront. The result is unrivalled bass integration in any room, offering the depth and scale of a large, ported cabinet loudspeaker without the potential bass bloom caused by typical port/room interactions. The clever design makes F700 Series far less sensitive of room position than traditional Hi-Fi loudspeakers, enabling easy in room placement for aesthetic or practical reasons.

DRIVER TECHNOLOGY
IsoFlare point source drivers are at the heart of every F700 model. Benefitting from Fyne’s Flagship F1 Series technology, the IsoFlare units feature a 25mm magnesium diaphragm compression tweeter mounted coaxially into the heart of a potent MF/LF driver featuring a rigid multi-fibre cone and FyneFlute roll surround.

The high powered compression HF drivers give true point source isotropic radiation for unsurpassed imaging and even frequency response. Neodymium motors with vented rear chambers and a metal pole piece to transfer heat and ensure outstanding power handling. Direct output from the diaphragm has been expertly tuned with an HF waveguide with unique geometry that proved an incredibly flat frequency response to over 30kHz.

The IsoFlare’s bass/midrange section and the auxiliary drivers in the floorstanding models, use Fyne’s proprietary multi-fibre cone with its extremely natural sounding midrange and fast transient attack. The unique FyneFlute roll surround is shaped to more effectively terminate cone energy, eliminating unwanted resonances from colouring bass and midrange micro-detail. The massive motor assembly includes a flux focusing magnet for increased LF sensitivity, resulting in a driver that can comfortably deliver the dynamics of high energy instruments.

High power handling and high efficiency are hallmarks of the IsoFlare point source design. The F700 Series’ potent 200mm and 250mm IsoFlare drivers comfortably deliver on the promise of live music dynamics and real world sound pressure levels across the range.

PLINTH
Machined from aluminium, the striking F700 Series plinth offers unrivalled stability and a solid platform for Fyne’s patent pending BassTrax LF diffuser. Twin 8mm thick plates are separated by aluminium spacers with sturdy floor coupling spikes and their large, knurled lock rings feature on floorstanding models to provide easy levelling. Machined aluminium cups are provided to protect wooden floors. The lower plate supports the tractrix cone diffuser part of Fyne’s patent pending BassTrax porting system. Finished in satin black and polished aluminium to complement all three loudspeaker finishes, the F700 Series plinth is a work of art in its own right.

Fyne Audio F700 SPECIFICATIONS

System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS) 30 – 150
Peak power handling (Watt) 300
Continuous power handling (Watt RMS) 75
Sensitivity (2.83 Volt @ 1m) 89dB
Nominal impedance 8 Ohm
Frequency response (-6dB typical in room) 40Hz – 34kHz
Drive unit complement 1 x 150mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system
Crossover frequency 1.7kHz
Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated.
Dimensions – HxWxD 348mm x 224mm x 337mm (13.7 x 8.8 x 13.3”)
Net Weight – Each 9.0kg (19.8lbs)
Finishes Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
