Tsakiridis Devices AEOLOS Plus

Περιγραφή

Tsakiridis Devices AEOLOS Plus

Tsakiridis Devices AEOLOS Plus

Class AB1 2x45W

Ο Aeolos είναι ένας ολοκληρωμένος ενισχυτής με 4 εισόδους και μία έξοδο προενισχυτή.
Η σχεδίασή του είναι μια διαμόρφωση push-pull με 2 λυχνίες ισχύος 6550 – ανά κανάλι σε τάξη AB1 και τροφοδοτικό dual-mono.
Όλα τα ηλεκτρονικά εξαρτήματα στην πλακέτα είναι κολλημένα στο χέρι.
Ο Aeolos χρησιμοποιεί τους χειροποίητους μετασχηματιστές εξόδου 8 στρώσεων για εξαιρετική ποιότητα ήχου.

Tsakiridis Devices AEOLOS Plus

Class AB1 2x45W

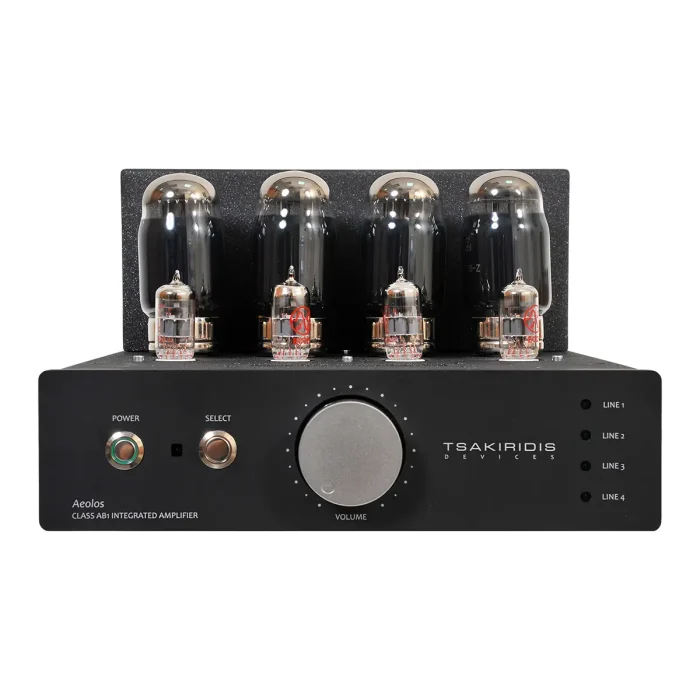

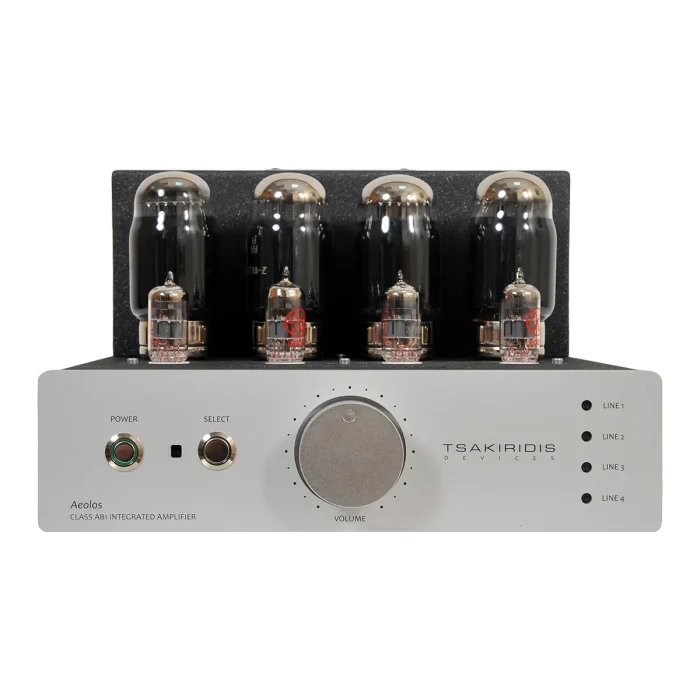

Aeolos Plus is an Integrated amplifier with 4 inputs and one pre output.
It’s design is a push-pull configuration implementing 2 power tubes per channel in class AB1 operation and dual-mono power supply.
All electronic components are through hole type soldered by hand.
Aeolos Plus utilizes our 8 layer handmade output transformers for superb sound quality.

Aeolos is our best selling integrated amplifier. It offers everything the user needs in a compact and classic design. The push – pull configuration draws enough power from the output tubes to drive a wide range of loudspeakers.

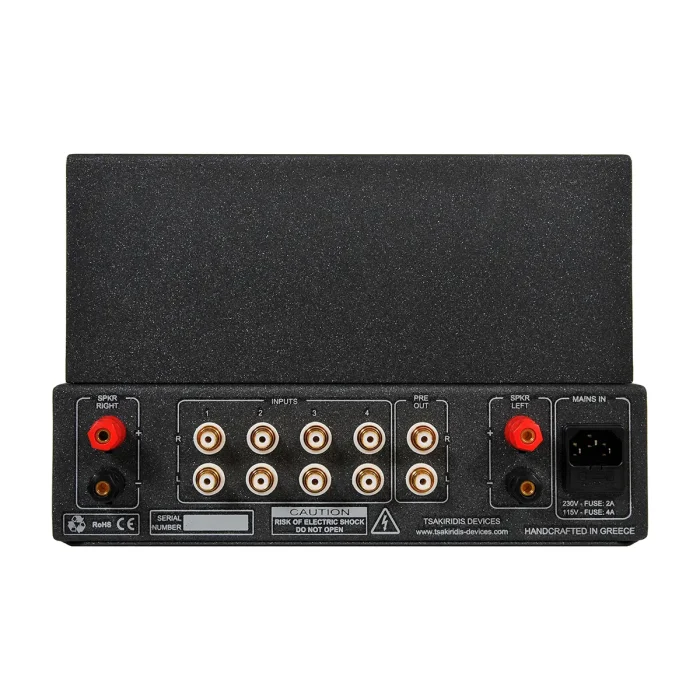

Gold plated RCA connectors are implemented for the signal inputs/output and high quality binding posts for the loudspeakers. For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Aeolos integrated amplifier. Volume control, input selection, mute and power tubes bias mode.

Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Tsakiridis Devices AEOLOS Plus Features
Inputs: 4 line inputs
Outputs: 1 pre output
Input selection: High grade signal relays
Input/Output connectors: RCA gold plated
Speaker connectors: Ultimax
Remote control: Yes
Volume control: Blue Alps
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Non inductive polypropelene film capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 300W
Output transformer: Handmade 8 layer windings
Driving stage tubes: 4x12AT7
Power tubes: 4×6550

Tsakiridis Devices AEOLOS Plus Specifications
Output Power: 2x45W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 85db
Channel separation: 68db
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.40%
Frequency response: -3db 15Hz-72000Hz
Power supply energy: 150Joule
Power consumption: 140W
Weight: 20kgr
Dimensions (WxDxH): (29x46x23)cm

Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.

Με εγγύηση αντιπροσωπείας. Για περισσότερες πληροφορίες ή ερωτήσεις που αφορούν την τιμή καλέστε το κατάστημα μας.
