Frankie hybrid Preamplifier Line by Serblin & Son

Frankie hybrid Preamplifier (Line)

Frankie hybrid preamplifier Line

Υβριδικός προενισχυτής Frankie
Η καρδιά του υβριδικού προενισχυτή Frankie, ο προενισχυτής γραμμής, αποτελείται από 4x  6922 / E88CC διπλοτρίοδες διαμορφωμένες ως ένα ισορροπημένο κύκλωμα SRPP. Το κύκλωμα, με μηδενική συνολική ανάδραση, επωφελείται από 4 ξεχωριστά και ρυθμιζόμενα τροφοδοτικά με διακριτά εξαρτήματα.
ΠΡΟΕΝΙΣΧΥΤΗΣ υβριδικός Tube-Fet. AIKIDO circuit design. Zero feedback.
Full Balanced, discrete FET Cascode design.
Line 2x XLR – 1 x RCA – Outputs XLR/RCA.
Shunt volume control with relay switched resistors. Android & IOS remote control App
& Infrared Remote control.

Frankie hybrid preamplifier
The beating heart of Frankie hybrid preamplifier, the line amplifier, consists of a 4 x 6922 / E88CC  double triode configured as a SRPP balanced circuitry with an active cascoded mosfet current sink.
The circuit, with zero overall feedback, benefits of 4 separate and regulated power supplies with discrete components.
The volume control is once again our “Golden Stairway”, the attenuator developed in house and used in all our products.
This attenuator, made up of fixed resistors switched by relays, has a precision and quality superior to common analogue or digital potentiometers.
In Frankie hybrid preamplifier, this attenuator works in “shunt mode”.
The preamplifier can be controlled both via iOS & Android App or via infrared remote control at the same time.
Frankie hybrid preamplifier has been designed to be the ideal partner of the Frankie monoblock power amplifier.

Frankie hybrid preamplifier technical data
Balanced SRPP triode circuitry

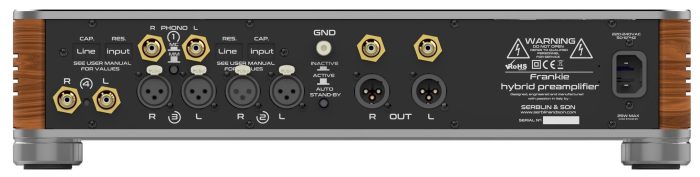

Inputs : 2x line XLR, 1x line RCA,
Outputs : 1x XLR, 1x RCA.
Auto standby after about 20 minutes of input signal absence.
This function can be enabled or disabled through a rear panel pushbutton.
Stand-by power consumption < 0.5w (complies to Ecodesign directive 2009/125/CE)

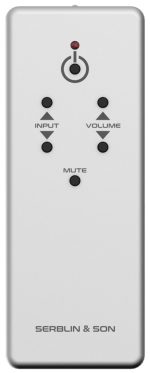

Remote control : Android & iOS App + infrared all included.
Power supply voltage (220-240v/50-60hz)
Dimensions mm : 430 x 317 x 78 (LxPxA) protruding parts included
net weight : 10kg

Η τιμή αφορά walnut ή Black φινίρισμα
