EVERSOLO Z8

Περιγραφή

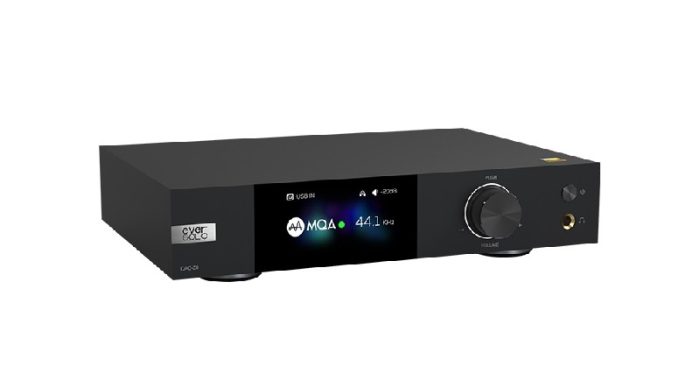

EVERSOLO Z8

EVERSOLO Z8 dac

Εξαιρετικό DAC και ενισχυτής ακουστικών. Με το κορυφαίο DAC chip ESS ES9038Pro και επεξεργαστή XMOS XU316. Μέσω USB υποστηρίζει ροές ήχου υψηλής ανάλυσης και παρέχει καθαρή και λεπτομερή αναπαραγωγή. Το DAC-Z8 προσφέρει επίσης ένα ευρύ φάσμα χαρακτηριστικών που το καθιστούν μια ευέλικτη και αποτελεσματική συσκευή.

EVERSOLO Z8

Excellent DAC and headphone amp. With the top DAC chip ESS ES9038Pro and XMOS XU316 processor. Via USB it supports high-resolution audio streams and provides clear and detailed playback. The DAC-Z8 also offers a wide range of features that make it a versatile and efficient device.

EVERSOLO Z8

Functional overview
ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.
The 3rd generation XMOS XU316 with higher performance and faster speed.
High precision, low jitter dual clock oscillators synchronous processing.
OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.
Up to DSD512 Native, PCM768KHz@32Bit decoding.
Optical, Coaxial and USB support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol.
Fully balanced audio architecture, differential amplifier circuit and professional calibration.
High-performance headphone amp output, 16-300 ohm headphone driver.
3-inch LCD screen, with diverse VU meter modes.
Low ripple power supply to ensure a purer power source.
Exclusive mobile phone controller APP for global control.

EVERSOLO Z8 SPECS
Model
EverSolo DAC-Z8
Display Screen 3-inch LCD Screen
Chassis Aviation aluminum alloy
DAC ES 9038Pro

Audio Processor XMOS XU316
OPA Chip OPA1612*10
Power Supply Low noise switching power supply
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

USB-B DAC Input Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA

USB-C DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

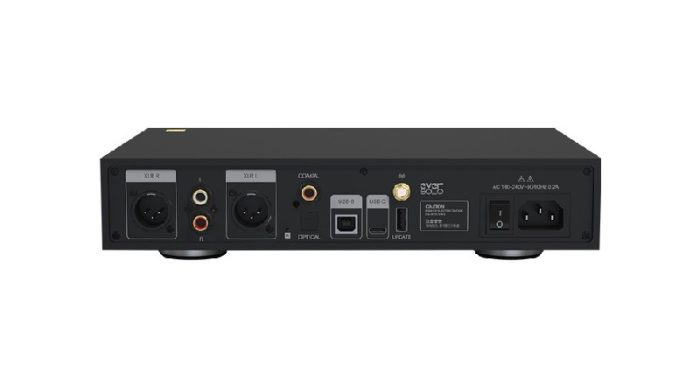

Analog Audio Output
Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended
USB Port
USB2.0*1（only for firmware upgrade）
Control Methods Remote control, mobile APP control and knob control
Headphone Impedance 16-300Ω（low gain mode:16-32Ω/high gain mode: 32-300Ω）
XLR Audio Characteristics
Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz
RCA Audio Characteristics

Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz
Headphone (low gain mode)
Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz
Headphone (high gain mode)
Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz
Power Input AC 110~240V 50/60Hz
Rated Power 9W
Dimensions 270mm(W) * 187mm(D)* 50mm(H)
Packing List Remote control*1, power cable*1, USB cable*1, product manual*1
