Monitor Audio Anthra W15

Περιγραφή

Monitor Audio Anthra W15

Monitor Audio Anthra W15

Το W15 είναι το μεγαλύτερο υπογούφερ στη σειρά Anthra. Διαθέτει μονάδας οδήγησης άκαμπτης επιφάνειας τεχνολογίας II (RST II) 15″ (38 cm) C-CAM μεγάλης διαδρομής που τροφοδοτείται από έναν ενισχυτή Class-D 1.500 Watt, που στεγάζεται σε μια πλήρως εσωτερικά ενισχυμένη, σφραγισμένη καμπίνα.

Monitor Audio Anthra W15

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Monitor Audio Anthra W15 Key Features

1 x 15” (38 cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
1 x 1,500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
RCA inputs (left/right. The left Input is LFE)
RCA outputs allows daisy chain of up to 4 Anthra subwoofers
XLR inputs for professional installation connectivity option
XLR outputs allows daisy chain of up to four Anthra subwoofers

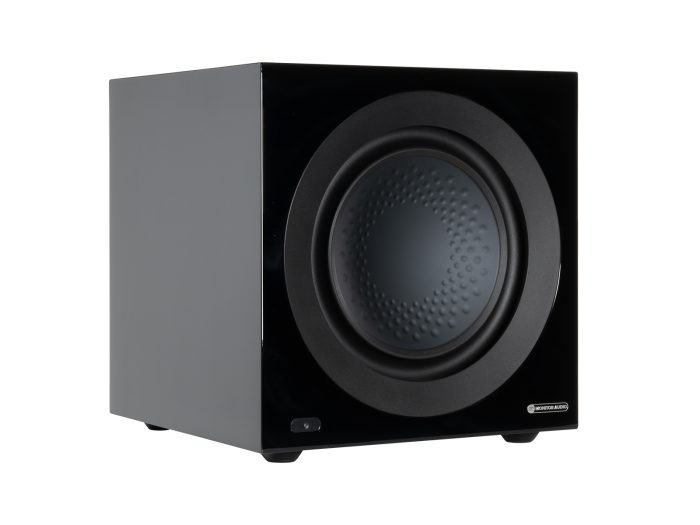

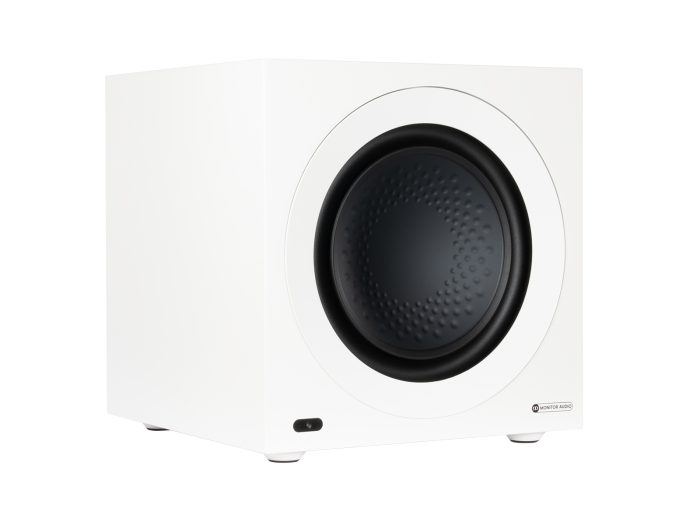

Available in Gloss Black and Satin White finishes
MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.

With its outstanding bass, the Silver W-12 provides the perfect sonic backdrop to your speaker set-up. The 500-watt amplifier gives incredible headroom, meaning more power doesn’t equal more distortion. And it’s intelligent, too, with features like Automatic Position Correction that learns the layout of the room and automatically corrects the acoustics of the music you hear. As a result, you can put your subwoofer wherever you like, with no restrictions, and still enjoy amazingly lifelike sound.

Deep, Controlled Bass. Simply.

It’s not easy making things simple. It takes effort; but it is worth it. The Anthra Subwoofer Series embraces simplicity, with three clearly defined, high-performance subwoofers that are designed to deliver deep, controlled bass with an intuitive user-experience. That’s it. It’s simplicity at its best.

The three models in the Anthra Subwoofer Series have been engineered with a focus on musicality and control. Through the expert application of sound acoustic knowledge and solid design principles, each model in this formidable range delivers devastatingly deep bass with musicality and agility.

Impeccable build quality, intuitive controls and a user-friendly app round out an exceptional package. Plus, the enhanced flexibility that the standalone Anthra range offers, enables a user to select a subwoofer independent of a speaker series, with their choice instead based on price, performance and their personal requirements.

Intuitive Setup App
Advanced features, including DSP configuration and multi-sub connectivity setup, is available via the MaestroUnite app.

Cutting-edge Drivers
All Anthra subwoofer drivers feature Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium cones (C-CAM).

Powerful Amplifiers
The amplifiers and their power supplies are designed in tandem, so they work together perfectly for better efficiency and lower distortion.

Acoustic Performance
Through the application of smart acoustic design and core Monitor Audio technologies, the Anthra Subwoofer Series can deliver the kind of deep, highly accurate bass output capable of dramatically enhancing your enjoyment of both movies and music. It’s controlled bass you can feel.

Two Channel
Subwoofers are about a lot more than adding bass effects to a movie soundtrack. The very best are also adept at adding low-end detail, atmospherics, and bass to a stereo hi-fi system; and the Anthra subs are the very best.

Home Cinema
When it comes to maximising your movie experience then a capable subwoofer is a key component. Whether it’s adding the thump of a special effect or enhancing the subtleties of a cinematic score, Anthra subwoofers maximise your enjoyment.

C-CAM
Strong and lightweight, the extremely rigid C-CAM cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range for a cleaner, clearer more precise lifelike sound presentation.

RST II
This is the first time Rigid Surface Technology II (RST II) has been applied to a Monitor Audio subwoofer cone. It significantly increases cone rigidity, allowing the radiating surfaces to resist the mechanical bending forces that can twist the shape of conventional driver cones, which can distort sound.

Class-D amplifiers
Behind each RST II C-CAM high-excursion driver lies a formidable amplifier capable of jaw-dropping power. With Class-D 425, 900 and a massive 1,400 Watts RMS at continuous levels with peak demand reaching 500, 1,700 and a massive 2,500 Watts, each amplifier ensures that the drivers are working to their optimum performance levels, no matter what the volume, allowing for an extremely accurate and clean dynamic range and a musical performance.

Cabinet strength
Anthra subwoofers utilise an extremely solid MDF cabinet, boasting up to 1.4-inch thick (36mm) external walls and 0.75-inch (19mm) thick internal walls with carefully configured bracing that has been acoustically optimised for extreme strength.

Connectivity

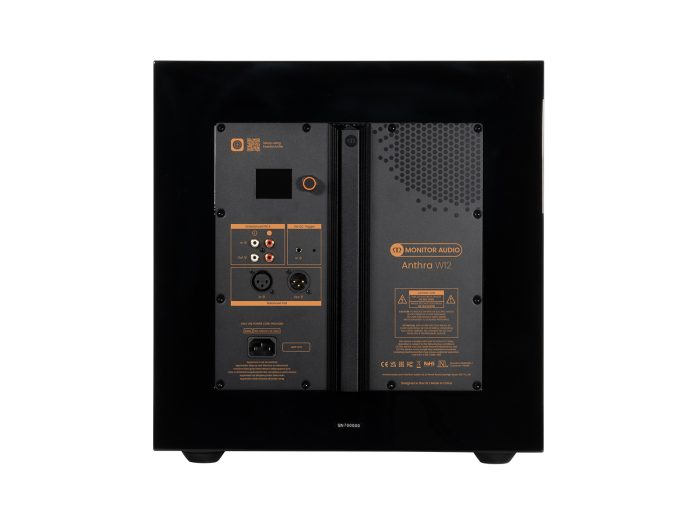

All Anthra subwoofers offer a comprehensive variety of connectivity options, such as RCA with LFE, and XLR inputs for professional installation, both of which allow multiple Anthra subwoofers to be used in a system. A full-colour display on the rear panel with rotatory dial offers access the setup selection menu, which allows consumers to not only undertake a quick setup procedure, but also to connect and integrate any Anthra subwoofer into a wider home cinema system with consummate ease.

Maestro Unite App
Using the in-house-designed MaestroUnite setup app, users can optimally configure any Anthra subwoofer to their individual tastes and system requirements. And if multiple subwoofers are used within a single system, it allows the same settings to be delivered across them all simultaneously.

Monitor Audio Anthra W15 Specification
System Format Active – Sealed Cabinet
Drive Unit Complement 1x 15″ (381 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification High-Efficiency Class-D
Lower Frequency Limit -6dB @16Hz
Upper Frequency Limit (LPF Off) -6dB @400Hz
Driver Excursion (pk-pk) 50 mm
DSP 28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 2500 W*
Continuous short-term: 1400 W**
Amplifier Output Power, 120Vac
Instantaneous: 2500 W
Continuous short-term: 1400 W
LED UI Control Brightness, On-Off
Phase Control 0-360 Degrees measured at LPF Crossover
Low Pass Filter 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD) 439 x 439 x 439 mm
Power Consumption 550 W
Cabinet Construction Braced 25 mm thick MDF with 36 mm front baffle

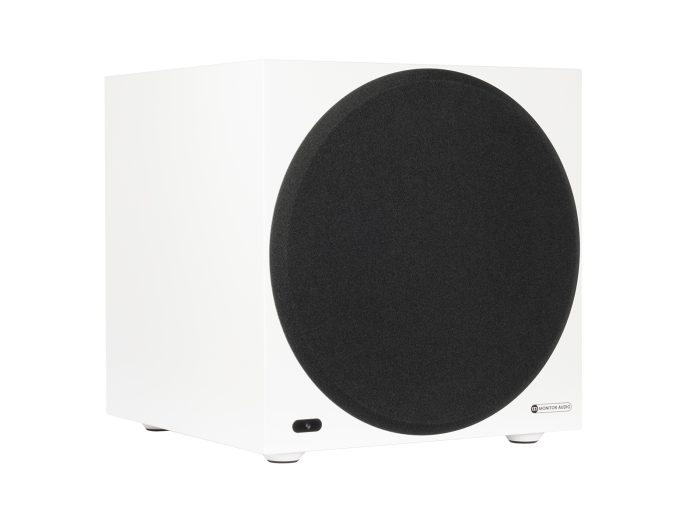

Grille Cloth covered magnetically attached Grilles
Weight 35.41 kg (78 lb 1 oz)

* Maximum RMS output for an instantaneous signal
