Περιγραφή

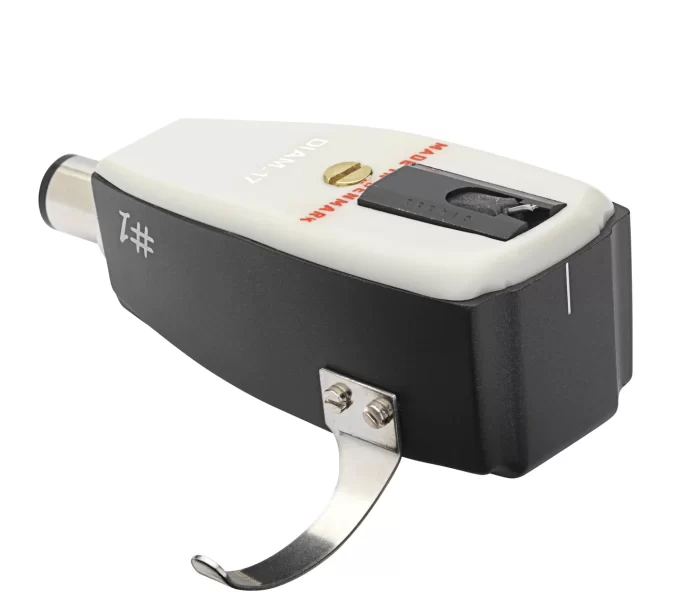

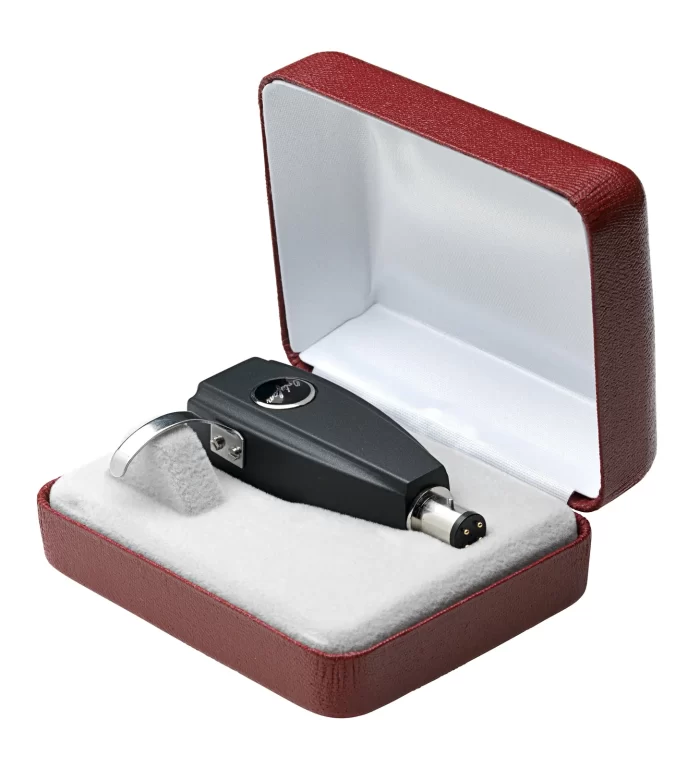

Ortofon SPU #1 S
![The SPU #1 E is a remarkable embodiment of the classic Moving Coil technology, offering an ideal solution for playing back a wide range of stereo recordings, from the early classics to modern and contemporary pieces, with an outstanding price-to-performance ratio. The SPU #1 S features a Spherical stylus. Crafted with precision, the housing of the SPU #1 cartridges is constructed from a combination of grinded wood and resin composite and features High Purity Copper armature windings and terminal leads, ensuring pristine signal transmission.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Ortofon-SPU-1-S-365x400.webp)
Ortofon SPU #1 S
Η κεφαλή Ortofon SPU #1 S είναι μια αξιοσημείωτη ενσωμάτωση της κλασικής τεχνολογίας Moving Coil, προσφέροντας μια ιδανική λύση για την αναπαραγωγή μιας μεγάλης γκάμα στερεοφωνικών ηχογραφήσεων, από τα πρώτα κλασικά έως τα μοντέρνα και σύγχρονα κομμάτια, με εξαιρετική αναλογία τιμής προς απόδοση. Η Ortofon SPU #1 S διαθέτει σφαιρική βελόνα. Τέλεια για τους νεοφερμένους στον κόσμο των SPU, κατασκευασμένη με ακρίβεια, το περίβλημα των κεφαλών SPU #1 είναι κατασκευασμένο από συνδυασμό λειασμένου ξύλου και σύνθετης ρητίνης και διαθέτει περιελίξεις οπλισμού από χαλκό υψηλής καθαρότητας και ακροδέκτες, εξασφαλίζοντας άψογη μετάδοση σήματος.
Ortofon SPU #1 S
The SPU #1 E is a remarkable embodiment of the classic Moving Coil technology, offering an ideal solution for playing back a wide range of stereo recordings, from the early classics to modern and contemporary pieces, with an outstanding price-to-performance ratio. The SPU #1 S features a Spherical stylus. Crafted with precision, the housing of the SPU #1 cartridges is constructed from a combination of grinded wood and resin composite and features High Purity Copper armature windings and terminal leads, ensuring pristine signal transmission.
Perfect solution for stereo recordings
Compatibility
With their universal connector, the SPU #1 models ensure the ability to mount the units in a wider range of tonearms with universal (SME) mount, e.g., the Ortofon Reference tonearms. The combination of SPU #1, the ST-7 Moving Coil transformer and Ortofon Reference tonearms gives a supreme experience. Sonically, the SPU #1 models are genuine SPUs, known for their full-bodied and powerful music image, minimum of intermodulation distortion, and an impressive channel separation, a perfect solution for the playback of stereo recordings.
Ortofon SPU #1 S Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 0.18 mV
Channel seperation at 1 kHz 20 dB
Channel seperation at 15 kHz 10 dB
Frequency response 20 Hz – 20 kHz 3 dB
Tracking ability at 315Hz at recommended tracking force 60 µm
Compliance, dynamic, lateral 10 µm/mN
Stylus type Spherical
Stylus tip radius R 18 µm
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force, recommended 4.0 g (40 mN)
Tracking angle 20°
Internal impedance, DC resistance 2 ohm
Recommended load impedance 10 ohm
Coil wire material High Purity Copper (OFC)
Cartridge body material Ground wood and resin composite
Cartridge colour Black matte
Cartridge weight 28 g
