Περιγραφή

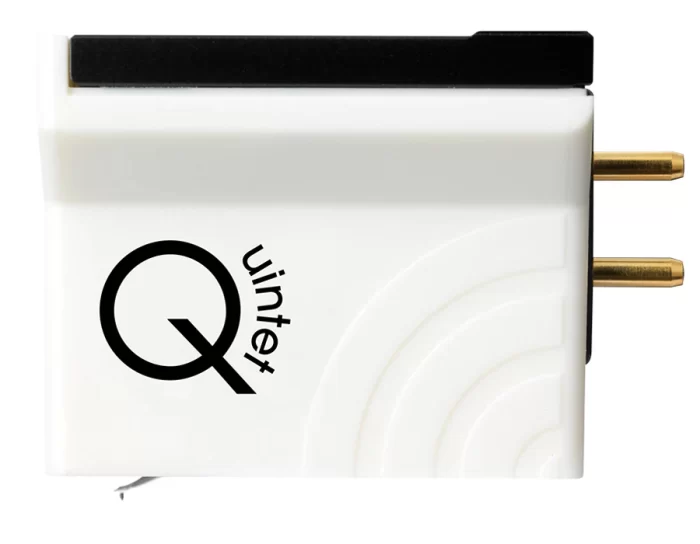

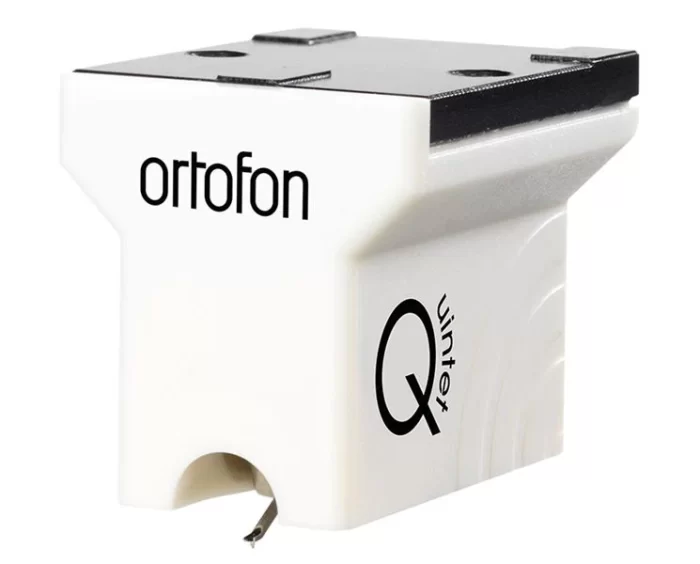

Ortofon Quintet Mono
![The Ortofon MC Quintet Mono is for playing mono microgroove vinyl records.It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Ortofon-Quintet-Mono-400x267.webp)
Ortofon Quintet Mono
Η κεφαλή Ortofon Quintet Mono διαθέτει Nude Elliptical r/R 8/18μm βελόνα που είναι μια καλή λύση για την αναπαραγωγή δίσκων βινυλίου σε mono microgroove. Η Quintet Mono παρακολουθεί τέλεια ακόμη και φθαρμένα ή κατεστραμμένα αρχεία και διασφαλίζει τον έλεγχο του θορύβου της επιφάνειας.
Ortofon Quintet Mono
The Ortofon MC Quintet Mono is for playing mono microgroove vinyl records.
It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins.
This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Accuracy level
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:
A special PC thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
Neodymium magnets are implemented to achieve an optimal output.
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
MC Quintet Mono is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
The story of Quintet
The Quintet series
Nothing demonstrates Ortofon’s long-standing resilience more than its commitment to the refinement of analog sound quality and its continued development of new cartridge models
Since 1948, Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.
Ease of use
Compatibility
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5 mm or 7 mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility, and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
Ortofon Quintet Mono Specifications
Output voltage at 1 kHz, 5cm/sec 0.3 mV
Frequency response 20 Hz – 20 kHz +/- 2.0 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 2.1-2.5 g
Tracking force, recommended 2.3 g
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 20 Ohm
Coil wire material Pure 4-nines silver/Ag
Cartridge body material PC Cartridge colour
White Cartridge weight 9 g
