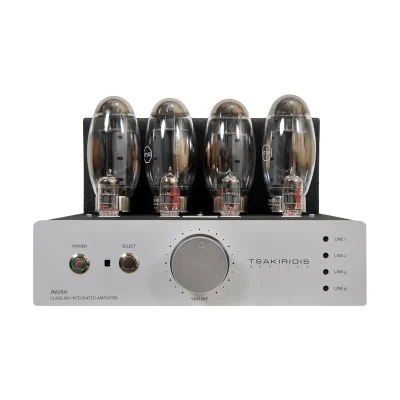

Tsakiridis Devices AEOLOS Ultra

Περιγραφή

Tsakiridis Devices AEOLOS Ultra

Tsakiridis Devices AEOLOS Ultra

Ο Aeolos είναι ο ολοκληρωμένος ενισχυτής μας με τις καλύτερες πωλήσεις. Προσφέρει όλα όσα χρειάζεται ο χρήστης σε ένα συμπαγές και κλασικό σχεδιασμό. Η διαμόρφωση push-pull αντλεί αρκετή ισχύ από τις λυχνίες εξόδου για να οδηγήσει μια μεγάλη γκάμα ηχείων. Επιχρυσωμένες υποδοχές RCA έχουν υλοποιηθεί για τις εισόδους/έξοδους σήματος και ακροδέκτες σύνδεσης WBT-0703 Next Gen για τα ηχεία. Για τον έλεγχο της έντασης ήχου χρησιμοποιείται το κλασικό μπλε Alps. Ένα κομψό τηλεχειριστήριο σε αλουμινένιο περίβλημα σας προσφέρει έλεγχο σε όλες τις λειτουργίες του ολοκληρωμένου ενισχυτή Aeolos. Έλεγχος έντασης ήχου, επιλογή εισόδου, σίγαση και λειτουργία πόλωσης των λυχνιών ισχύος.

Tsakiridis Devices AEOLOS Ultra

Class AB1 2x70W
Aeolos Ultra is an Integrated amplifier with 4 inputs and one pre output.
It’s design is a push-pull configuration implementing 2 power tubes per channel in class AB1 operation and dual-mono power supply.
All electronic components are through hole type soldered by hand.
Aeolos Ultra utilizes our 8 layer handmade output transformers with high quality core for superb sound quality.

Aeolos is our best selling integrated amplifier. It offers everything the user needs in a compact and classic design. The push – pull configuration draws enough power from the output tubes to drive a wide range of loudspeakers.
Gold plated RCA connectors are implemented for the signal inputs/output and WBT-0703 Next Gen binding posts for the loudspeakers.
For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Aeolos integrated amplifier. Volume control, input selection, mute and power tubes bias mode.

Carefully selected values and types for the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and Jantzen superior-Z signal capacitors are used in Aeolos Ultra to elevate the amplifier’s sound quality. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Tsakiridis Devices AEOLOS Ultra Features
Inputs: 4 line inputs
Outputs: 1 pre output
Input selection: High grade signal relays
Input/Output connectors: RCA gold plated
Speaker connectors: WBT-0703 Next Gen
Remote control: Yes
Volume control: Blue Alps
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Jantzen Audio Superior-Z capacitors
Power resistors: Metal film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 400W
Output transformer: Handmade 8 layer high quality core
Driving stage tubes: 4x12AT7
Power tubes: 4xKT150

Tsakiridis Devices AEOLOS Ultra Specifications
Output Power: 2x70W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 85db
Channel separation: 68db
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.38%
Frequency response: -3db 8Hz-76000Hz
Power supply energy: 200Joule
Power consumption: 220W
Weight: 22kgr
Dimensions (WxDxH): (29x46x23)cm

Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
