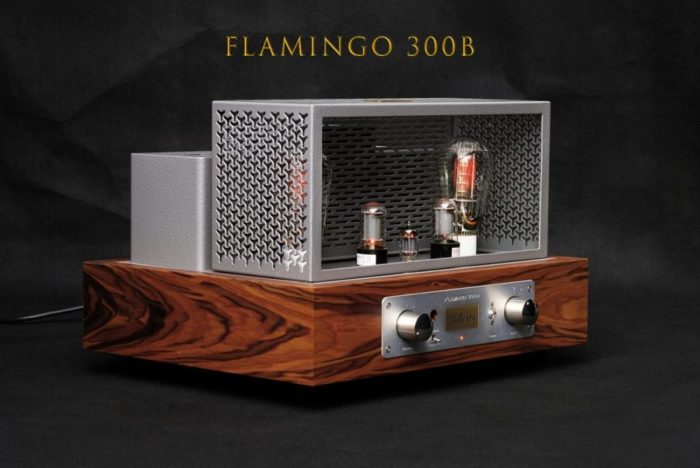

THIVANLABS FLAMINGO 300B CLASS A
Ολοκληρωμένος ενισχυτής λυχνίας σε τάξη Α single-ended για ηχεία και ακουστικά με λυχνίες 300B σε τοπολογία single ended με έξοδο 7,5 W ανά κανάλι.
- THIVANLABS FLAMINGO 300B NEW 2022
- – The source is carefully designed with 5 filter levels besides large-sized choke and oil cap. The power supply for the Power and Driver stages is separated to provide absolute stability and stillness for the amplifier.
- – Thivan’s transformer is specifically manufactured to suite the Driver and Power stages. This solution has maximized smooth sound quality of tube 300B and resulted in better sound control, especially for the transformer’s bass.
- – Thivan’s OPT sound transformer is designed to be very large (total weight of 6kg / unit – similar to those in the high-end 300B Amplifier). This is aimed to optimize sound quality of tube 300B as well as to reach its capacity of 7.5w across the 20Hz – 20 kHz frequency range.
- – The components used are of high quality and have been thoroughly tested and guaranteed from Thivan Labs to ensure stable and reliable operation.
- THIVANLABS FLAMINGO 300B SPECIFICATIONS
- Pure Class A – Zero Feed back
Inputs 1 x XRL ; 2 x RCA
Speakers 4, 6, 8, 16 Ohms
Vacuum tube complement
– Input & Driver tube 1 x 12AU7 ; 1 x 6SN7 ; 2x6V6
– Power tube 2 x 300B
Output Power 7.5W/ch
Frequency response 10 Hz – 30 kHz (-1dB) ; 20Hz – 20kHz (-0.1dB)
Input Sensitivity 600mV
Input Impedance 100 kOhms
Power Requirements 220V (possible to set 100 /110/117/240v/50-60Hz by different markets)
Power Consumption 120W
Dimensions (cm/block)
(W x D x H) 45 x 40 x 26 (cm)
