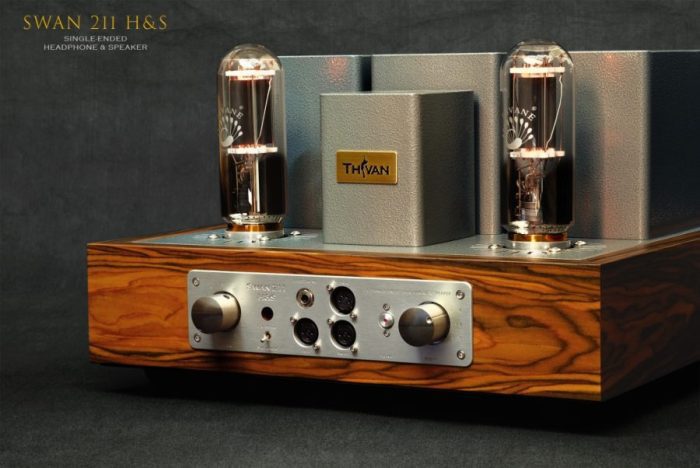

THIVAN LABS Swan 211 Integrated Amp
THIVAN LAB Swan 211 Headphones & Speakers Integrated Amp.
Ολοκληρωμένος ενισχυτής λυχνίας με τις περίφημες 211 σε καθαρή τάξη Α και τοπολογία single ended με έξοδο 25 W ανά κανάλι. Ο ενισχυτής λειτουργεί και σαν ενισχυτής ακουστικών.
- Number of amp blocks 1
Inputs 1 XLR ; 2 RCA
Speakers 4, 6, 8, 16 Ohms
Headphone Output 1/4″ (6.3mm) stereo headphone
4-pin XLR stereo headphone
Dual 3-pin XLR (left and right channel) headphone
Vacuum tube complement
– Output tubes: 211 x 2 (VT-4C)
– Pre & driver tubes: 1 x 12AU7 ; 1 x 6SN7 ; 2 x 6V6
Output Power (per channel) CLASS A – 25W RMS
Frequency response 15Hz – 38kHz (-3dB)
Input Sensitivity 600mV
Input Impedance 100kOhms
Power Requirements 230V (possible to set 100 /110/117/240v/50-60Hz by different markets)
Power Consumption 420W
Dimensions (W x D x H) 45 x 50 x 29 (cm)
Weight 55kgs
Remote control No - Swan 211 HnS amplifier can drive headphones with impedances from 8 ohms to 1200 ohms.
- Impedance Max Power (W)
8 25W
16 12W
32 6.0W
50 3.0W
64 2.3W
150 1.0W
300 500mW
600 250mW
1200 125mW
