ROTEL RA-1572MKII

Περιγραφή

ROTEL RA-1572MKII

ROTEL RA-1572MKII

Ο ολοκληρωμένος ενισχυτής ROTEL RA-1572MKII ζωντανεύει τη μουσική σας με εξαιρετική πιστότητα, αποδίδοντας ισχύ 120 Watt (τάξης AB) σε φορτίο 8 Ohm και προσφέροντας βαθιά, ελεγχόμενα μπάσα. Το DAC προδιαγραφών audiophile, οι αναλογικές και ψηφιακές είσοδοι, η συνδεσιμότητα Bluetooth (με υποστήριξη aptX™ και AAC), η θύρα PC-USB με υποστήριξη MQA και η βαθμίδα phono για κεφαλές κινητού μαγνήτη (Moving Magnet) εξασφαλίζουν εξαιρετική λεπτομέρεια και καθηλωτική ηχητική σκηνή.

ROTEL RA-1572MKII

The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptXTM and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.

ROTEL RA-1572MKII

The RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

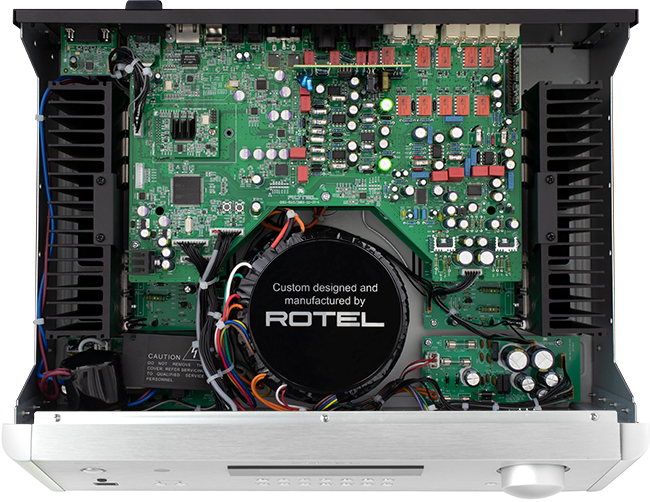

As typical of Rotel amplifiers, the RA-1572MKII utilizes an in-house manufactured oversized toroidal transformer. The toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.

The RA-1572MKII support digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favorite sources.

The RA-1572MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.

ROTEL RA-1572MKII specs

Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Damping Factor 300
Input Sensitivity
Line Level Inputs (RCA): 270mV
Line Level Inputs (XLR): 440mV
Digital Inputs: 0 dBFs
Phono Input (MM): 2.1mV
Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 32mV
Preout Level
1.5V
Output Impedance
470Ω

Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/192kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
