KONDO G-70

Περιγραφή

KONDO G-70

KONDO G-70

• Έχοντας εκλεπτυσμένο ήχο και καλές, σύγχρονες προδιαγραφές, ο G-70 χρησιμοποιεί τα καλύτερα υλικά και εξαρτήματα που επιλέχθηκαν μετά από μακροχρόνιες δοκιμές ακρόασης. Ο KONDO G-70 διαθέτει ισχυρό τροφοδοτικό, βελτιστοποιημένες καλωδιώσεις και διάταξη, νέο κύκλωμα heater κ.λπ. Όλα όσα μπορούν να γίνουν για καλύτερη ποιότητα ήχου. Το αποτέλεσμα είναι εκτός από την κορυφαία ποιότητα ήχου από έναν προενισχυτή λυχνίας, ο G-70 έχει επίσης τις προδιαγραφές για να ανταγωνιστεί τον καλύτερο προενισχυτή στερεάς κατάστασης.
• KONDO G-70
• Having elegant sound and good modern specifications, G-70 use the best components which were selected after long time listening tests. Strong power supply, optimized wirings and layout, new heater circuitry etc. All for contributing the best sound quality. Result is in addition to the best sound quality from a tube preamplifier, G-70 also has the specifications to compete with the best solid state preamplifier.
• Features
• High quality handcrafting with module style line amplifier section, best component placements, signal wiring and ground layout. Strong power supply section along with 700uF huge reservoir by combining 3 types of capacitor in individual left and right channel. Delivering natural and stress-free music over the whole frequency band. The newly developed DC heater circuit uses all premium parts selected through long time listening tests.
• Design
• Being the center of an audio system, the character of a preamplifier is very important. In addition to passing all specifications of modern amplifier, we also pursued to get refine and elegant sound quality. Main circuit is simple and direct to obtain low output impedance and music freshness. It is just a plate follower direct couple to a cathode follower. Vacuum tubes adopted are 6072. By using direct components wiring on a module board, the shortest signal paths are possible. Adopt quality parts such as SSW (silk silver wire), silver foil capacitors, original power transformer and copper chassis. Tonal quality is enhanced by the newly developed DC heater circuit. Sound quality is elegant, smooth, natural and without any coloration.

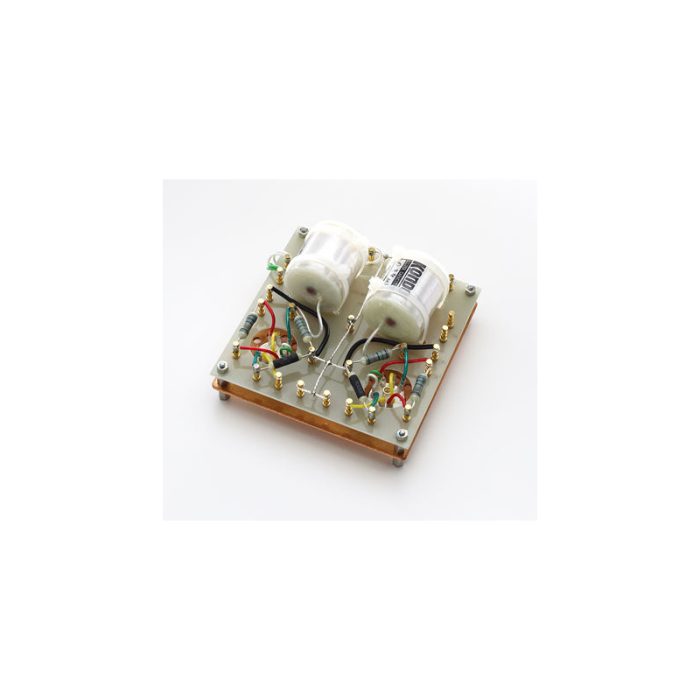

• Line Unit
• Line amplifier section is direct components wiring on a module board to get the benefit of direct wiring and shortest signal paths. Moreover, decoupling capacitors are arranged for each individual left and right channel. This keep the overall signal loops to the minimal lengths. New circuit design which had already considered to keep good low frequency performance up to 20Hz when the connecting to low input impedance solid state amplifier (e.g. 20kΩ)
• KONDO G-70 Προδιαγραφές
• Product Stereo line preamplifier
  Model G-70
  Frequency Response 10Hz ～ 240kHz (+0dB -3dB, with 100kΩ load)
  Gain 25dB
  Input / Impedance 4pairs(RCA, Unbalanced) / 100kΩ
  Output 2 pairs (RCA, over 20kΩ load)
  Noise lower than 0.15mV
  Tubes 6072 x2, 6X4 x1
  Power consumption 21W
  Dimension 303mm(W) 160mm(H) 408mm(D) (Excluding protrusions)
  Weight 17.5kg
