FiiO BR15 R2R

Περιγραφή

FiiO BR15 R2R

FiiO BR15 R2R

Το FiiO BR15 R2R είναι ένα 24bit/192kHz dac. Το FiiO BR15 R2R διαθέτει πληθώρα εισόδων: 1x Coaxial, 1x Optical, 1x USB-C, Bluetooth, αλλά και εξόδων: 1x RCA Line, 1x XLR Line, 1x Coaxial (same with input).

FiiO BR15 R2R

The FiiO BR15 R2R redefines wireless audio with a fully differential 24-bit R2R DAC, Bluetooth 6.0, and Qualcomm’s flagship QCC5181 chipset. Supporting LDAC, aptX Adaptive, and aptX Lossless codecs, it delivers CD-quality sound at up to 2.1 Mbps—letting you stream freely while preserving every musical nuance.

At its core, the quad-channel R2R DAC employs 192 precision thin-film resistors (48 per channel) with 0.1% tolerance, ensuring ultra-low noise and minimal distortion. The DAC can run in NOS (non-oversampling) or OS (oversampling) mode, giving audiophiles control over tonal character and detail retrieval.

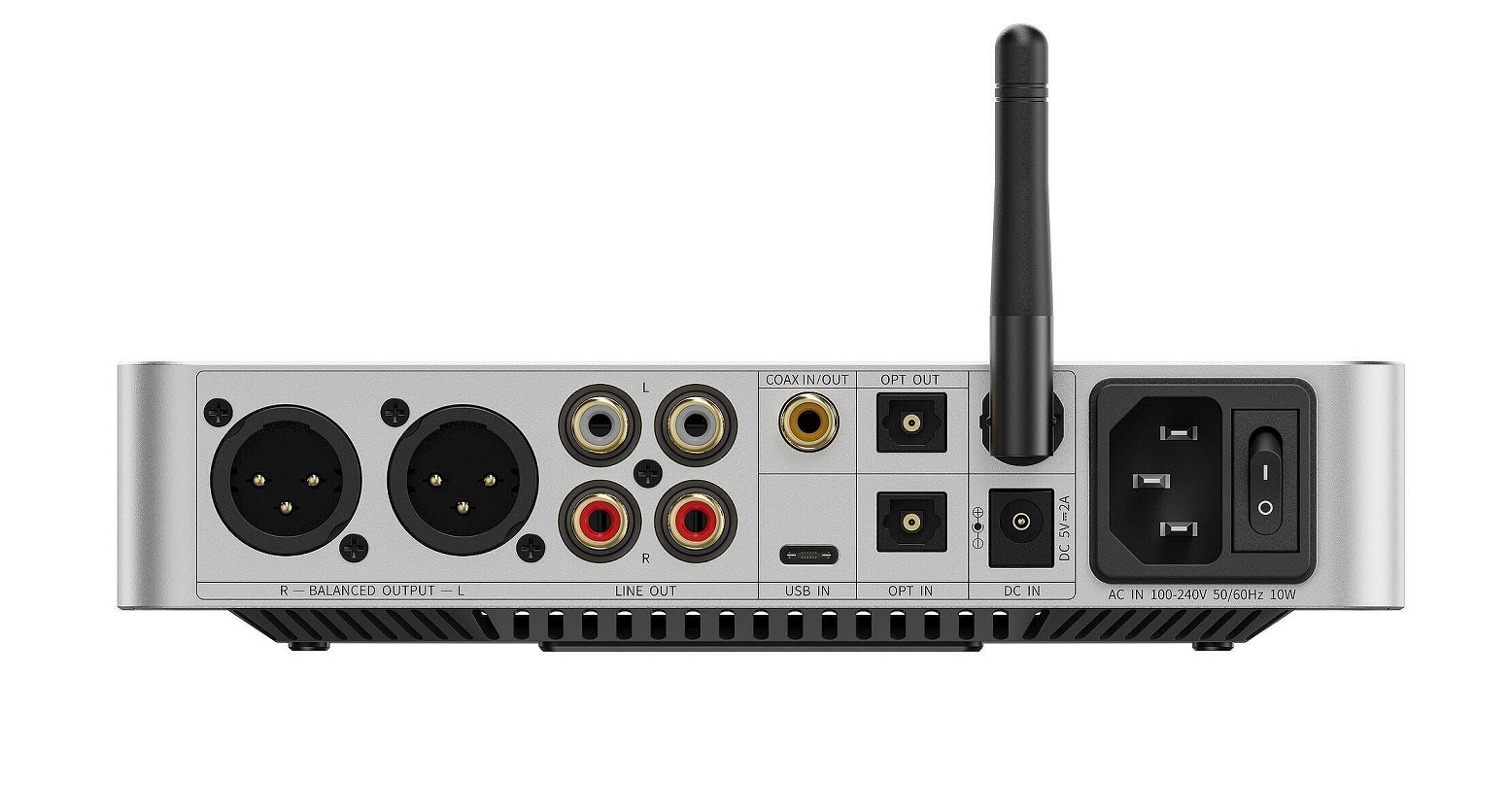

The BR15 R2R integrates seamlessly with any setup thanks to Bluetooth, USB, coaxial, and optical decoding inputs, plus RCA, XLR, and digital outputs. Whether paired with active speakers, an amplifier, or an external DAC, it adapts effortlessly to your playback chain.

Equipped with a global 10-band PEQ and AUTO EQ via the FiiO Control app, users can fine-tune the frequency response or match specific headphones. A fully balanced audio circuit, pop-noise suppression, and AC/DC dual power system ensure stable, clean performance.

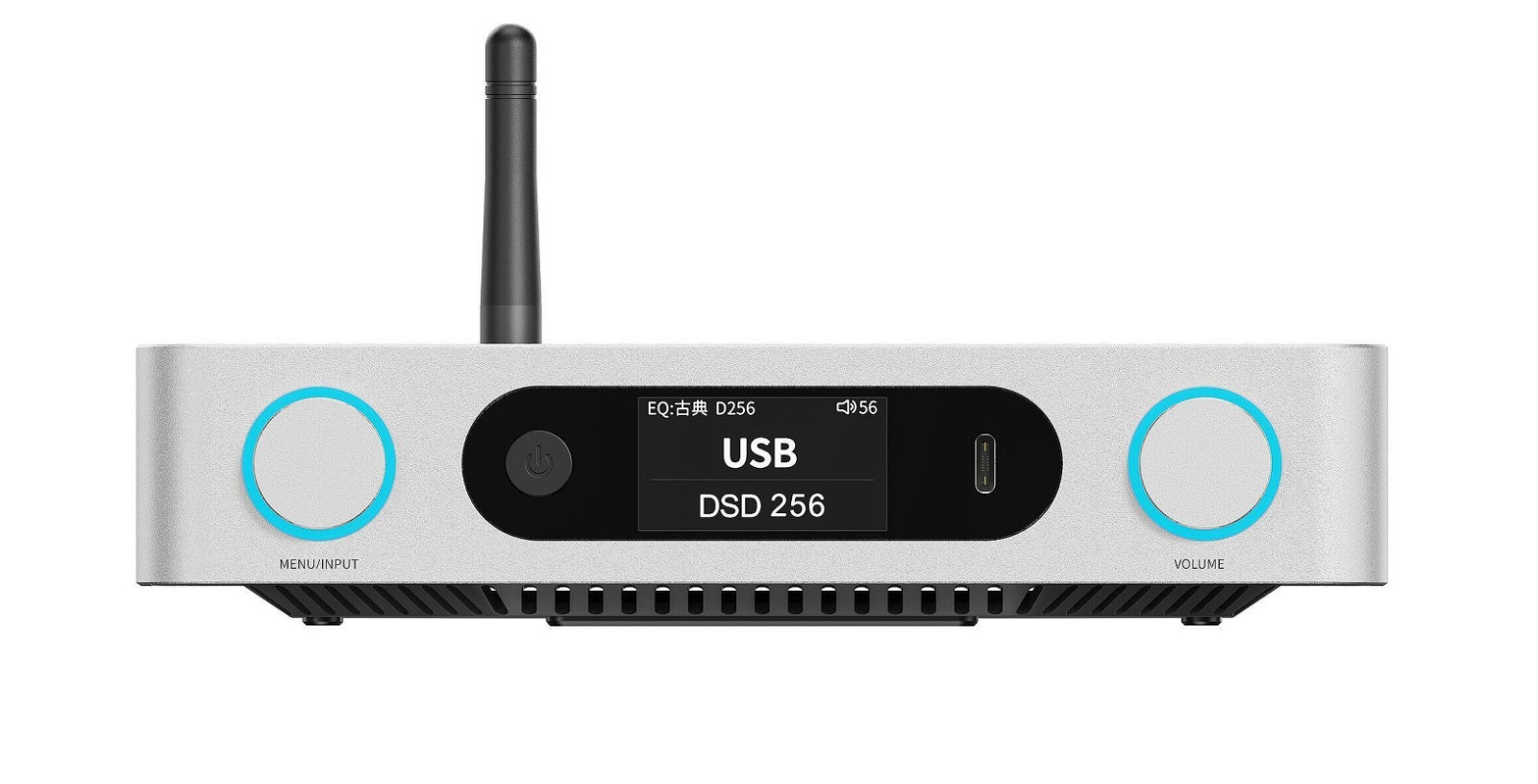

The 1.47-inch color LCD provides live feedback—volume, codec, sampling rate, EQ status—while an infrared remote and FiiO Control app offer full convenience from anywhere in the room. With its refined industrial design and Hi-Res Audio / Hi-Res Wireless certification, the BR15 R2R stands as the ultimate bridge between audiophile fidelity and wireless freedom.

FiiO BR15 R2R Specifications

Model: FiiO BR15 R2R
Bluetooth chip: Qualcomm QCC5181, Bluetooth 6.0
DAC architecture: FiiO proprietary true 24-bit R2R DAC with 192 thin-film resistors
Main controller: ESP32-S3
USB interface: XMOS XU316
Display: 1.47-inch color LCD screen
Supported Bluetooth codecs: LDAC, aptX Lossless, aptX Adaptive, aptX HD, aptX, AAC, SBC, LC3
Decoding capability:
USB: PCM up to 384 kHz / 32-bit, DSD256
Coaxial: up to 192 kHz / 24-bit, DSD64
Optical: up to 96 kHz / 24-bit, DSD64
Outputs:
RCA: 2.2 Vrms
XLR balanced: 4.4 Vrms
Optical (S/PDIF)
Coaxial (S/PDIF)
Input interfaces: Bluetooth, USB, Optical, Coaxial
Frequency response: 20 Hz – 65 kHz (attenuation < 2.9 dB)
Signal-to-noise ratio (SNR): ≥ 119 dB (A-weighted)
Noise floor: < 5.1 µV (A-weighted)
Total harmonic distortion + noise (THD+N): < 0.015% (1 kHz, 0 dB @ 10 kΩ)
PEQ: 10-band parametric EQ with AUTO EQ
Power supply: AC / DC dual supply with automatic DC priority
Dimensions (W × D × H): 210 × 188 × 42 mm
Weight: 0.76 kg
Color options: Black / Silver
Included accessories: Remote control, AC power cable, RCA cable, quick start guide, warranty card
