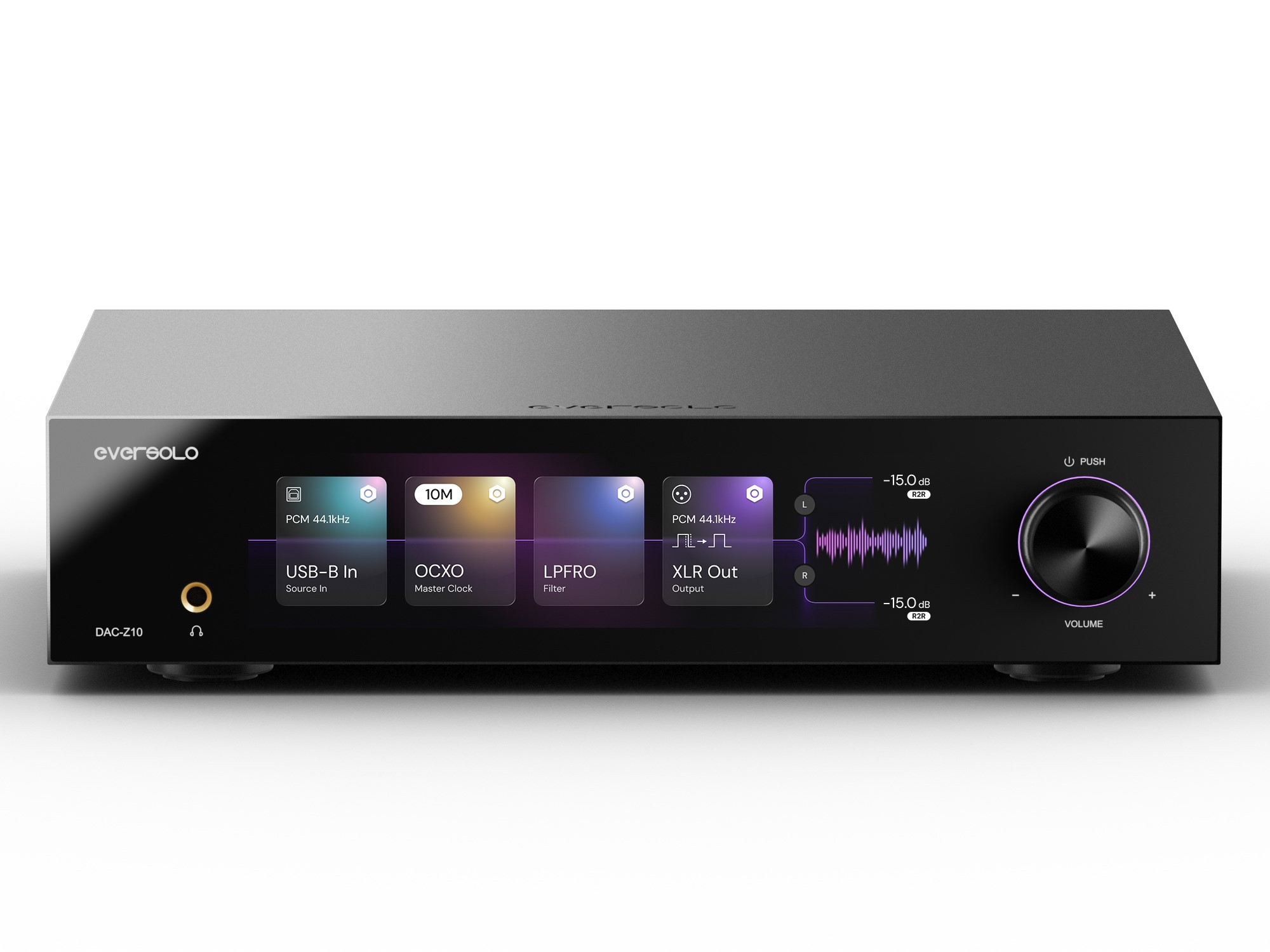

EVERsolo DAC-Z10

Περιγραφή

EVERsolo DAC-Z10

EVERsolo DAC-Z10

Το Eversolo DAC-Z10 είναι DAC, προενισχυτής, ενισχυτής ακουστικών, με πλήρη dual-mono «FIA» αρχιτεκτονική και υποστηρίζει PCM 32-bit/768kHz και Native DSD512 με πολλές εισόδους (USB-B, HDMI I²S, Coaxial, Optical, AES/EBU, Bluetooth) και έξοδους XLR, RCA, έξοδο ακουστικών με αυτόματη ανίχνευση της αντίστασης των ακουστικών.

Αναλυτικότερα,  το νέο Eversolo DAC-Z10,  είναι σχεδιασμένο για όσους απαιτούν τον ήχο
στην πιο καθαρή και πιστή μορφή του.
Τι το κάνει να ξεχωρίζει:
. Dual Mono αρχιτεκτονική με δύο DAC AK4191 + AK4499 για κάθε κανάλι — εξασφαλίζοντας εξαιρετικό
διαχωρισμό καναλιών και δυναμική αντίδραση.
. Aρχιτεκτονική «Fully Isolated Architecture (FIA)» που απομονώνει πλήρως κάθε στοιχείο (ψηφιακό και
αναλογικό) και προμηθεύει τροφοδοσία με τρία ανεξάρτητα γραμμικά τροφοδοτικά — για χαμηλό θόρυβο
και απόλυτη καθαρότητα ήχου.
. Δίκτυο αντιστάσεων R2R υψηλής ακρίβειας, με ξεχωριστές μονάδες R2R για κάθε κανάλι. Από πολύ
χαμηλά έως υψηλά επίπεδα αναπαραγωγής, ο ήχος παραμένει καθαρός και γεμάτος, καταγράφοντας κάθε
απόχρωση της μουσικής με την πιο αγνή αναλογική ακρίβεια.
. Υποστήριξη μορφών υψηλής ανάλυσης: PCM μέχρι 32-bit / 768 kHz και Native DSD512.
. Ενσωματωμένος ενισχυτής ακουστικών με έξοδο 6,35 mm που προσαρμόζει αυτόματα την ένταση στην
αντίσταση των ακουστικών — ιδανικός για απαιτητικά hi-fi ακουστικά.
. Πλούσιες συνδέσεις: USB-B, HDMI ARC/eARC, AES/EBU, Coaxial, Optical, I2S και Bluetooth 5.0 με
Qualcomm QCC5125 — για εύκολη ενσωμάτωση σε σύστημα ήχου υψηλών προδιαγραφών.

Γιατί να το επιλέξετε το EVERsolo DAC-Z10
Αν αναζητάτε ηχητική αναβάθμιση που θα σας φέρει πιο κοντά στην εμπειρία της ζωντανής μουσικής — με κάθε
λεπτομέρεια και κάθε παλμό — τότε το DAC-Z10 είναι αυτό που χρειάζεστε.
Δεν είναι απλώς ένας μετατροπέας ψηφιακού-αναλογικού. Είναι η γέφυρα ανάμεσα σε εσάς και την αυθεντική
μουσική έκφραση.

EVERsolo DAC-Z10

From digital to analog, the DAC-Z10 lets music unfold in its purest form. A DAC that reveals the authentic character and finest details of sound.

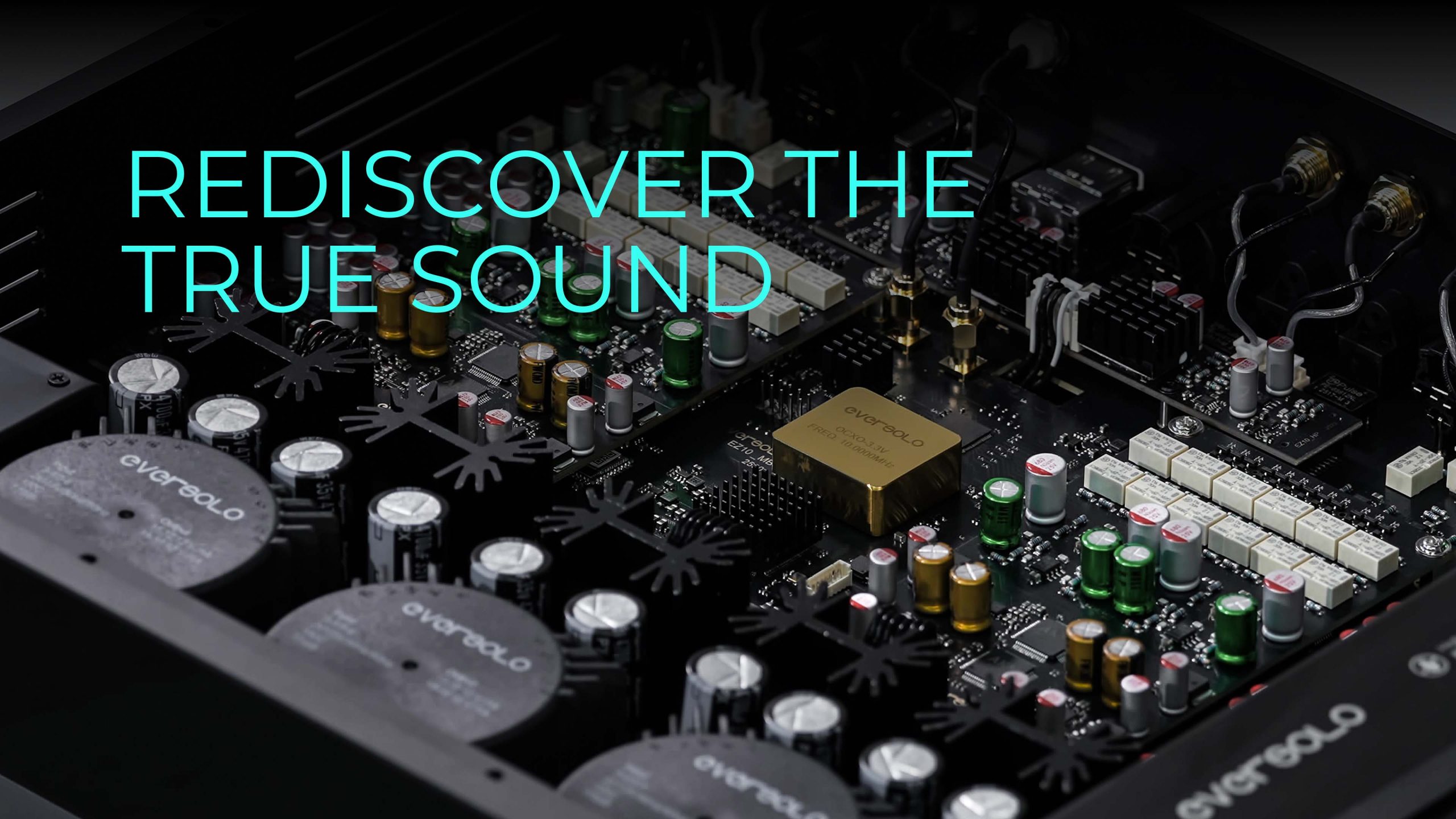

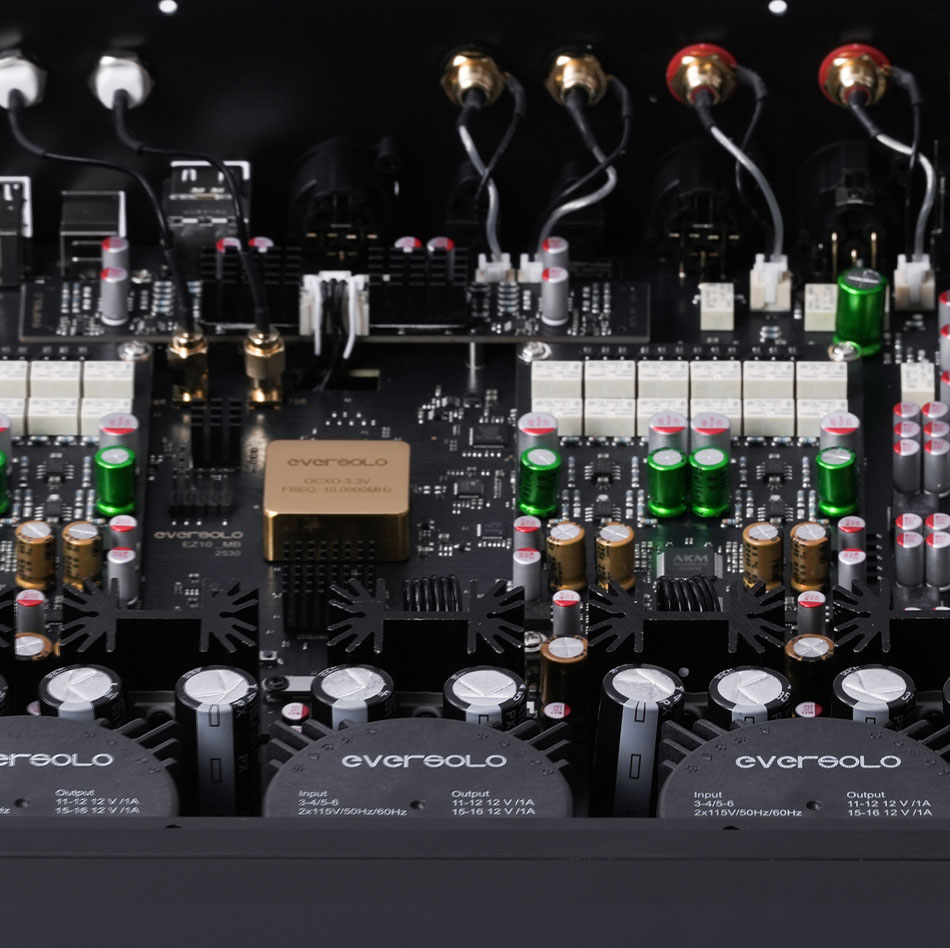

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Eversolo FIA™
Eversolo Precision Core™
Fully Balanced R2R Network
FPGA Clock Reconstruction

Three Independent Power Supplies

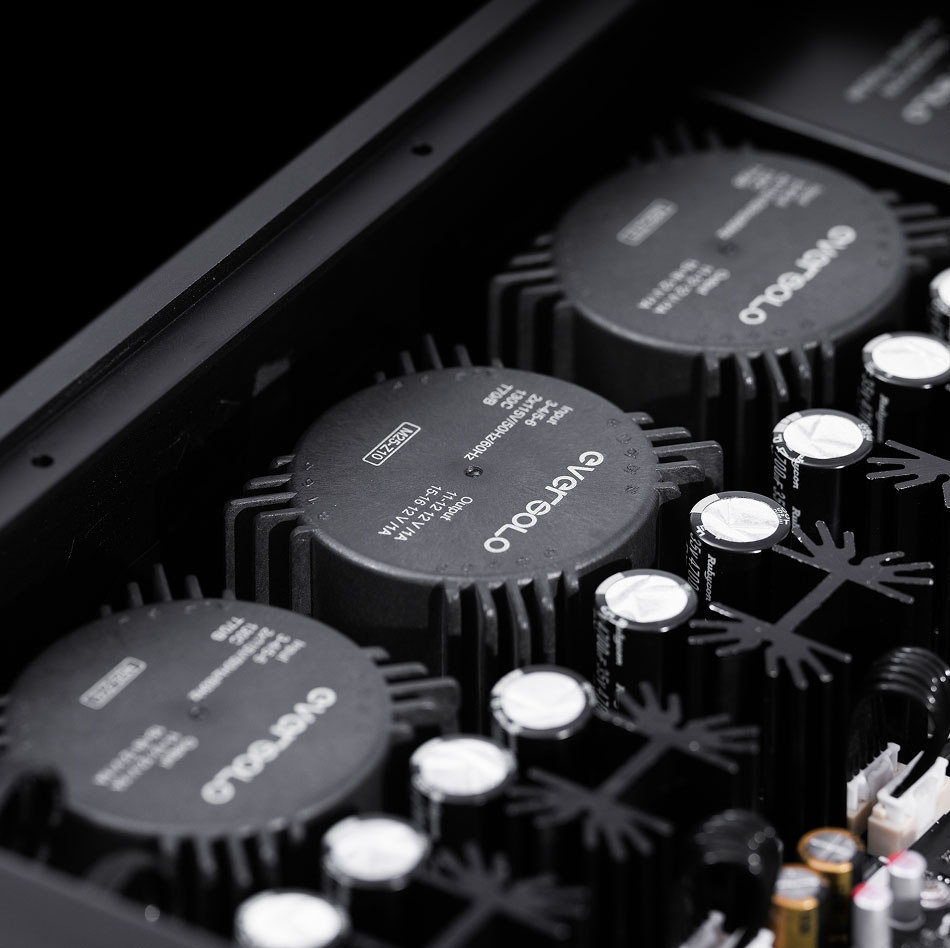

With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.

Dual Independent Channels

Dual Decoding Modules

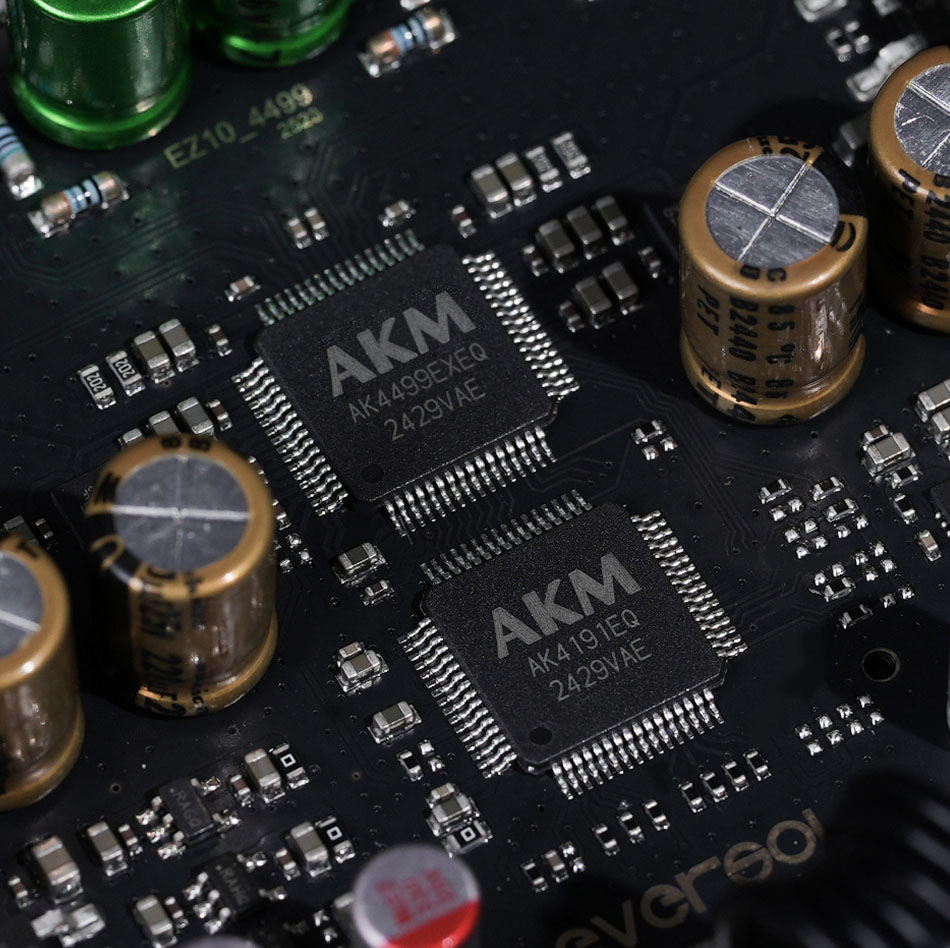

Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.

Native Support

DSD 512
PCM 768kHz/32Bit

Dual Independent Channels

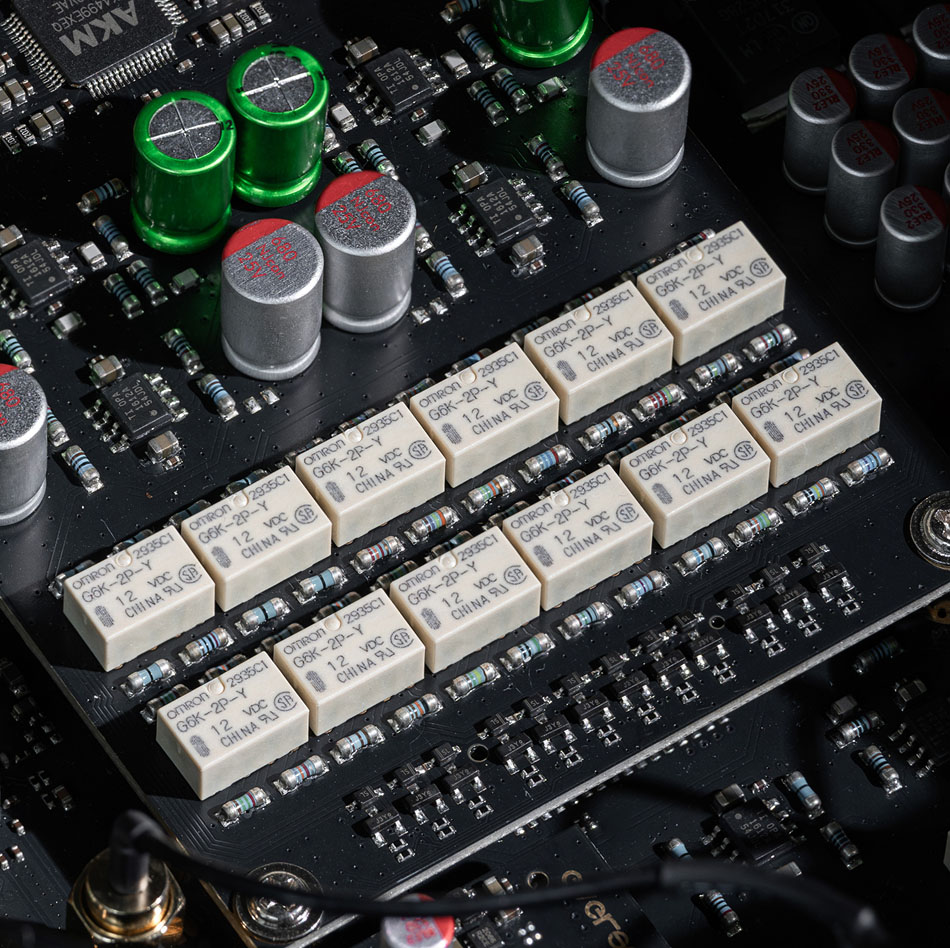

R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

Fully Balanced Preamplifier
The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo Precision Core™
Accurate Clock System
OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction

OCXO Temperature-Controlled Crystal Oscillator
Phase-Locked Loop Technology

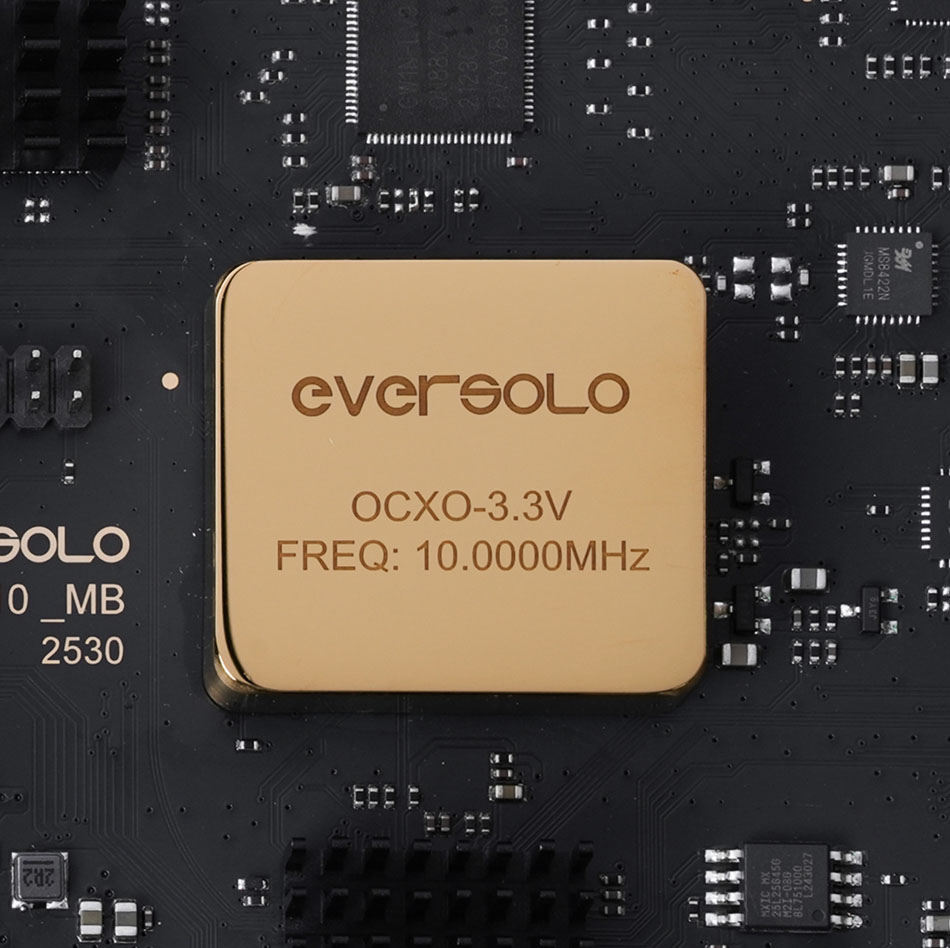

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.

Ultra-Low Distortion & Wide Dynamic Range
Capturing Every Nuance of the Music
The DAC-Z10 lets every listener hear the true sound. With ultra-low distortion and wide dynamic range, every note is crystal clear.

Multi-Core USB Audio Processor
The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

USB Audio In

DSD512 Native
PCM 768KHz/32Bit
Optical / Coaxial

PCM 192KHz/24Bit
DSD64 Dop

Grounding Post
The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

8-Mode IIS Digital Audio Input
Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

Isolated AES/EBU Input
To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.

HDMI ARC Integration
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Gain Output

1 W（16 Ω）
1 W（32 Ω）
0.16 W（300 Ω）

High Quality Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

The Balance of Simplicity and Strength
The DAC-Z10’s chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

Smooth Control Experience
The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.

Volume Control Knob
Multiple Exclusive Colors
To let every user tailor the DAC-Z10 to their personal taste and space aesthetics, we offer multiple knob colors.

Routing Information Interface
Intuitive Signal Path Display
On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control—all unfold clearly, revealing the full story of your music.

Sonic & Visual Enjoyment
The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.

Left/Right Balance Gain
The DAC-Z10 offers up to 15dB of left/right balance gain adjustment, allowing precise tuning of each channel according to your personal listening preference. With the DAC-Z10, every note reaches your ears accurately.

Customize Your Sound
The DAC-Z10 offers 6 DAC filter characteristics, letting you switch freely to suit different musical atmospheres. With its versatile filter curves, the DAC-Z10 shapes the sound to match your personal listening taste.

Accurate Signal Transmission
To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment according to different system requirements. This guarantees stable and accurate signal transmission.

Music at Your Fingertips
The DAC-Z10 supports both mobile App control and touchscreen control. Manage your system remotely from your smartphone, or interact directly via the large touchscreen. No matter how you choose, your music is always within reach.

EVERsolo DAC-Z10 Specifications

USB DAC

Full expansion
Basic Parameters
Model Eversolo DAC-Z10

Display 8.8″ IPS

Chassis Material Aluminium alloy

Main Processor DCP8568

DAC Left Channel: AK4191+AK4499

Right Channel: AK4191+AK4499

Audio Processor Multi-core USB audio processor

OPA Chip OPA1612

Power Triple ultra-low noise linear power supplies

Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

USB-B Audio Input Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

IIS Input Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

AES/EBU Input Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Optical Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Coaxial Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

ARC Input Up to Stereo PCM 192KHz/24Bit

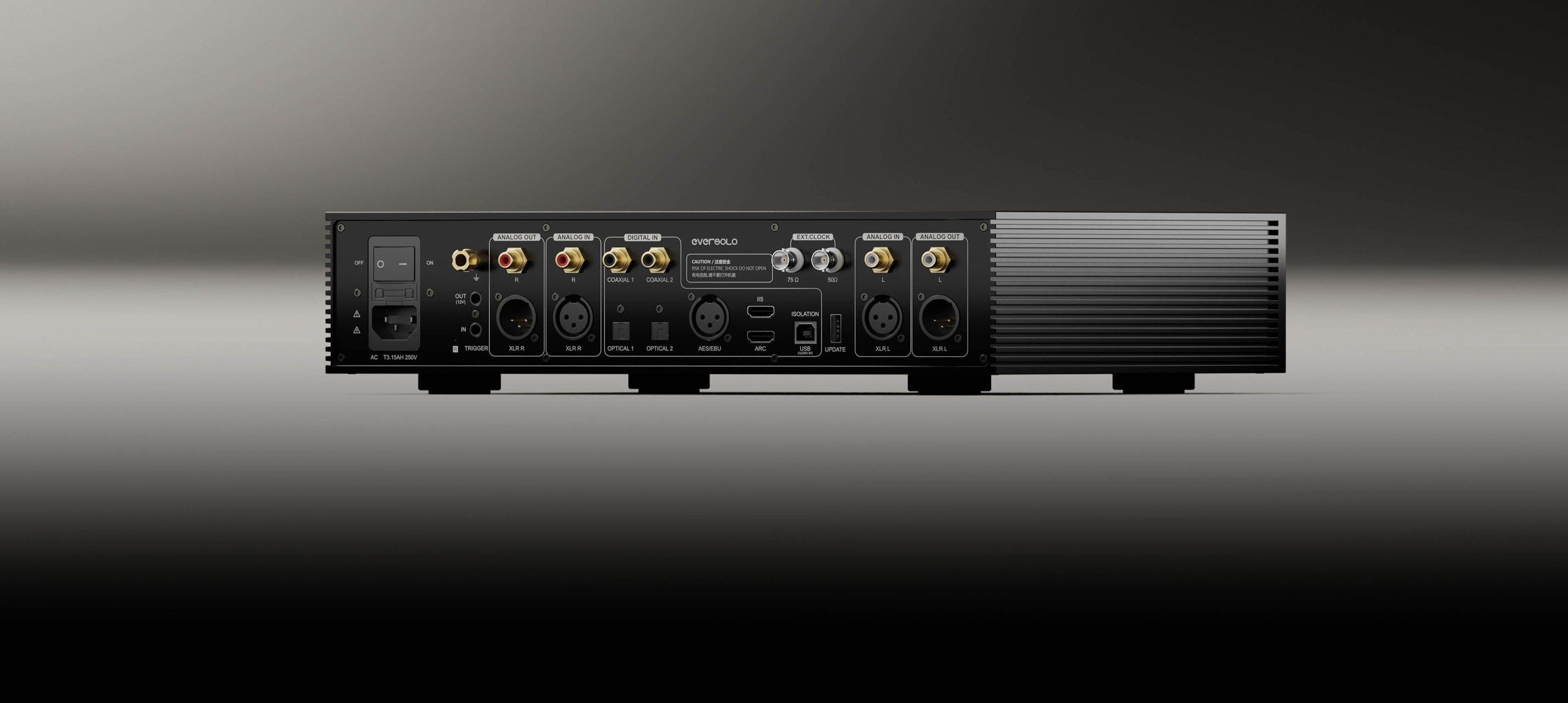

Analog Audio Inputs XLR (Balanced), RCA

Analog Audio Outputs Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

External Clock Input Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

Recommended Headphone Impedance 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Audio Characteristics
XLR Output Audio Characteristics
Output Level (Vrms): 5Vrms @ 0dBFS

THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)

Noise @ No-wt: <1.2uVrms

SNR @ A-wt: 130dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -130dB

DNR @ A-wt: 130dB

RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS

THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)

Noise @ No-wt: <1.5uVrms

SNR @ A-wt: 128dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -123dB

DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS

THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 124dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS

THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 126dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS

THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 127dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 127dB
