Περιγραφή
Rel Acoustics T5x
Κανένα subwoofer Rel στην μακριά ιστορία της εταιρείας δεν έχει κάνει περισσότερες πωλήσεις από το T5x μέχρι τώρα. Στην νέα εκδοχή του το T5x εξακολουθεί να έχει την ίδια αποστολή, να αποδώσει βαθύ πλούσιο χαμηλό παρά το μέτριο μέγεθος του. Το T5x είναι τέλειο για μικρούς και μεσαίους χώρους ακρόασης και με το μικρό μέγεθος του ποτέ δεν θα τραβήξει την προσοχή. Το T5x είναι ένα υπογούφερ με την μονάδα των χαμηλών συχνοτήτων 8 ιντσών από αλουμίνιο και χαρτί να ακτινοβολεί προς το πάτωμα και έτσι το χαμηλό να γεμίζει το χώρο κάνοντας το να ακούγεται σαν σαφώς μεγαλύτερο μοντέλο. Το T5x είναι εξοπλισμένο με ποιοτικό ενισχυτή 125 watt τάξης Α/Β ενώ διαθέτει όλες τις ρυθμίσεις και συνδέσεις που έχουν και τα μεγαλύτερα μοντέλα της εταιρείας όπως η High Level είσοδος που χρησιμοποιείται σε hi end δικάναλα συστήματα αλλά και LFE είσοδος με δικό της level control για συστήματα οικιακού κινηματογράφου. Επιπλέον το T5x διαθέτει standby κύκλωμα το οποίο ενεργοποιείται ακόμα και σε εξαιρετικά χαμηλές εντάσεις.
T/5x
No model in REL’s long history has sold more units nor engendered more affection than our T/5. Here reimagined in a modern, elegant, new form factor, T/5x’s mission remains the same: make remarkable bass far beyond its modest size, do so in a way that complements every interior’s style, and eliminate all visual distraction. Mission Accomplished.
- Designed for Elegance STUNNINGLY SIMPLE
Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms. - Slightly larger in volume than its predecessor, it actually appears to be smaller due subtle design changes to minimize it’s visual presence. Finally, 5 hand polished coats of lacquer in your choice of High Gloss White or Piano Black add luster to the softly rounded cabinetry.
- Designed for Elegance A 360-DEGREE UPGRADE
Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment. - Faster & Deeper SWIFT
T/5x borrows a single longthrow 8” (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminum and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throw–the ability to play louder–has been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car. More power, greater finesse. - Amplified Power REL’S RELIABLE BRAINS AND BRAWN

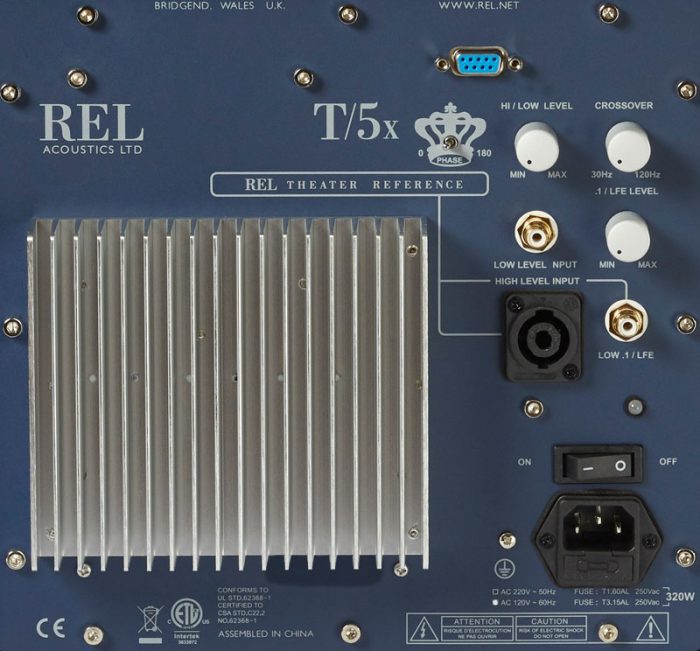

T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theater a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theater without needing to change a single setting. Magic? No, superior engineering. - Standby Mode switch is only included on 220V units.
- Zero Compression Wireless UNLIMITED POSSIBILITIES
At REL, we’ve developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. REL never rely upon digital compression as it results in thin, lifeless sound. Instead, we have perfected an (optional) Arrow™ Wireless system; so fast and dynamic we’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected hardwired with cable. - Specifications
TYPE
Closed Box, down-firing driver
ACTIVE DRIVER SIZE & MATERIAL
8 in. (200mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
N/A
LOW FREQUENCY EXTENSION
-6dB at 32 Hz - INPUT CONNECTORS
High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA
OUTPUT CONNECTORS
N/A
POWER OUTPUT
125 watts (RMS)
AMPLIFIER TYPE
Class A/B
WIRELESS CAPABILITY
REL Arrow (sold separately)
DUAL PARAMETRIC FILTER
N/A
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation
Dimensions
W X H X D
11.8 x 12 x 12.3 in., (300 x 307 x 313 mm)
NET WEIGHT
31.5 lbs. (14.3 kg)
FINISH
Piano Black Lacquer, Gloss White Lacquer 5 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
Yes
