CLEARAUDIO

Clearaudio Master Innovation

€29,699.00 – €31,199.00

Clearaudio Master Innovation

Clearaudio Master Innovation The latest model in the popular Innovation series shows clearly how even the best is constantly being further developed and brought to new sonic heights at Clearaudio. The 70mm-thick, dynamically balanced platter made of resonance damping plastic with a 15mm-thick precision-machined stainless steel sub platter delivers the highest mechanical standards. The Master Innovation doubles the inertia of the Innovation. Incredible rotational speed stability is achieved thanks to the combination of the patented Clearaudio ceramic magnetic bearing (CMB) supplemented by an additional flywheel and a high torque DC motor. An infrared sensor sends signals to an optical speed control mechanism to consistently maintain the perfect speed, while non-contact magnetic decoupling of the drive prevents any vibration or noise from the motor system from reaching the main turntable. Consequently, speed variations are eradicated and perfect pitch is obtained. The Master Innovation provides the ability to mount up to three tonearms. Existing Innovation owners have the option to upgrade to Master Innovation level.

Clearaudio Master Innovation

Add to compare
Add to wishlist
Κωδικός προϊόντος: Clearaudio Master Innovation Κατηγορία: Ετικέτες: , , , , ,
Περιγραφή

Περιγραφή

Clearaudio Master Innovation

Clearaudio Master Innovation The latest model in the popular Innovation series shows clearly how even the best is constantly being further developed and brought to new sonic heights at Clearaudio. The 70mm-thick, dynamically balanced platter made of resonance damping plastic with a 15mm-thick precision-machined stainless steel sub platter delivers the highest mechanical standards. The Master Innovation doubles the inertia of the Innovation. Incredible rotational speed stability is achieved thanks to the combination of the patented Clearaudio ceramic magnetic bearing (CMB) supplemented by an additional flywheel and a high torque DC motor. An infrared sensor sends signals to an optical speed control mechanism to consistently maintain the perfect speed, while non-contact magnetic decoupling of the drive prevents any vibration or noise from the motor system from reaching the main turntable. Consequently, speed variations are eradicated and perfect pitch is obtained. The Master Innovation provides the ability to mount up to three tonearms. Existing Innovation owners have the option to upgrade to Master Innovation level.

Clearaudio Master Innovation

Το πιο πρόσφατο μοντέλο της δημοφιλούς σειράς Innovation το Clearaudio Master Innovation δείχνει ξεκάθαρα πώς ακόμη και τα καλύτερα εξελίσσονται συνεχώς και φτάνουν σε νέα ηχητικά ύψη στην Clearaudio. Το δυναμικά ισορροπημένο πλατό πάχους 70 mm, κατασκευασμένο από πλαστικό απόσβεσης συντονισμού με υποπλατό από ανοξείδωτο χάλυβα, με μηχανική κατεργασία ακριβείας, πάχους 15 mm, προσφέρει τα υψηλότερα μηχανικά πρότυπα. Το Master Innovation διπλασιάζει την αδράνεια της καινοτομίας.

Η απίστευτη σταθερότητα περιστροφικής ταχύτητας επιτυγχάνεται χάρη στον συνδυασμό του πατενταρισμένου κεραμικού μαγνητικού ρουλεμάν Clearaudio (CMB) που συμπληρώνεται από έναν πρόσθετο σφόνδυλο και έναν κινητήρα DC υψηλής ροπής. Ένας αισθητήρας υπερύθρων στέλνει σήματα σε έναν οπτικό μηχανισμό ελέγχου ταχύτητας για να διατηρεί σταθερά την τέλεια ταχύτητα, ενώ η μαγνητική αποσύνδεση της μονάδας χωρίς επαφή εμποδίζει τυχόν κραδασμούς ή θόρυβο από το σύστημα του κινητήρα να φτάσει στο κύριο πικάπ. Κατά συνέπεια, οι διακυμάνσεις ταχύτητας εξαλείφονται και επιτυγχάνεται τέλειο βήμα. Το Master Innovation παρέχει τη δυνατότητα τοποθέτησης έως και τριών ακτινικών βραχιόνων. Οι υφιστάμενοι ιδιοκτήτες Innovation έχουν τη δυνατότητα να αναβαθμιστούν σε επίπεδο Master Innovation.

Clearaudio Master Innovation

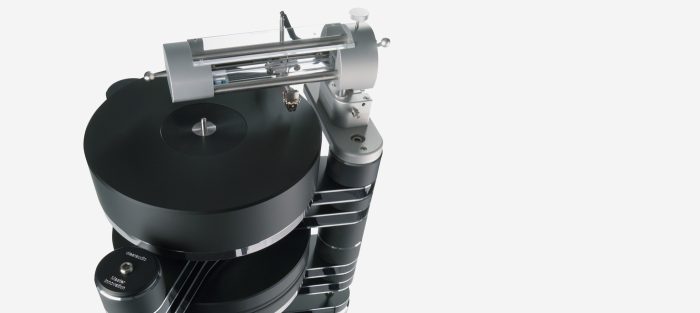

The latest model in the popular Innovation series shows clearly how even the best is constantly being further developed and brought to new sonic heights at Clearaudio.
The 70mm-thick, dynamically balanced platter made of resonance damping plastic with a 15mm-thick precision-machined stainless steel sub platter delivers the highest mechanical standards. The Master Innovation doubles the inertia of the Innovation.

Incredible rotational speed stability is achieved thanks to the combination of the patented Clearaudio ceramic magnetic bearing (CMB) supplemented by an additional flywheel and a high torque DC motor. An infrared sensor sends signals to an optical speed control mechanism to consistently maintain the perfect speed, while non-contact magnetic decoupling of the drive prevents any vibration or noise from the motor system from reaching the main turntable. Consequently, speed variations are eradicated and perfect pitch is obtained. The Master Innovation provides the ability to mount up to three tonearms. Existing Innovation owners have the option to upgrade to Master Innovation level.



Clearaudio Master Innovation Specifications
CONSTRUCTION DETAILS:
Resonance-optimised chassis shape
Made of bullet proof wood and aluminium with precision CNC machined surface
All turntable feet are finely adjustable
Playback with three tonearms possible
SPEED OPTIONS: 33 ⅓, 45, 78rpm
DRIVE UNIT: High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-driven
Magnetic decoupling of turntable and addtional drive platter
BEARING: Clearaudio patented ceramic magnetic bearing (CMB) in main platter / upper drive platter assembly
Inverted bearing in lower drive platter
PLATTER: 70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimension stability // precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
SPEED ACCURACY (MEASURED): < ± 0.05%
POWER CONSUMPTION: Max. consumption: 9.5 watts
Consumption in operation: 4.1 watts
Standby mode: 2.4 watts
Off mode: 0.0 watts
TOTAL WEIGHT: Approx. 60kg (without tonearm and power supply)
DIMENSIONS (W/D/H): Approx. 18.11 × 19.09 × 15.59 inches (with tonearm base, without tonearm)
DIMENSIONS (W/D/H): Approx. 460 × 485 × 396mm (with tonearm base, without tonearm)
MANUFACTURER’S WARRANTY: 5 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
Η αναγραφόμενη τιμή είναι για πλατώ χωρίς βραχίονα

Δείτε εδώ τα υπόλοιπα προϊόντα μας.

Δείτε προσφορές στο BLOGSPOT μας



Επιπλέον πληροφορίες

Επιπλέον πληροφορίες

Brand

CLEARAUDIO
Color

Black

,

natural wood
