Clearaudio Innovation

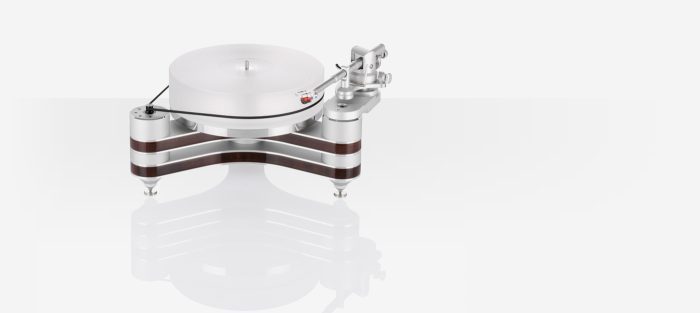

![Clearaudio Innovation In the world of turntable construction the Innovation is the ultimate technological prototype. An infrared sensor combined with Clearaudio's optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Clearaudio-Innovation-400x179.jpg)
Clearaudio Innovation
Στον κόσμο της κατασκευής πικάπ, η καινοτομία είναι το απόλυτο τεχνολογικό πρωτότυπο. Ένας αισθητήρας υπερύθρων σε συνδυασμό με τον οπτικό έλεγχο ταχύτητας (OSC) της Clearaudio εξασφαλίζει εξαιρετικό επίπεδο σταθερότητας ταχύτητας – προϋπόθεση για βέλτιστη ακρόαση. Ένας αποσυνδεδεμένος κινητήρας DC υψηλής ροπής περιστρέφει αβίαστα την επεξεργασμένη με μηχανική ακρίβεια πιατέλα πάχους 70 mm από ακρυλικό υψηλής πυκνότητας. Η πλάκα περιστρέφεται σε ένα σχεδόν περιβάλλον χωρίς τριβές πάνω από το υποπλατώ από ανοξείδωτο χάλυβα πάχους 15 mm, χάρη στο πατενταρισμένο κεραμικό μαγνητικό ρουλεμάν (CMB) της Clearaudio. Μια βολική επιλογή τριών ταχυτήτων περιστροφής είναι επίσης στη διάθεσή σας και είναι δυνατή η εγκατάσταση ενός δεύτερου βραχίονα.
Clearaudio Innovation
In the world of turntable construction the Innovation is the ultimate technological prototype. An infrared sensor combined with Clearaudio’s optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio’s patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.
Clearaudio Innovation Specifications
CONSTRUCTION DETAILS:
Resonance–optimised chassis shape
Made of bullet proof wood and aluminium with precision CNC machined surface
All turntable feet are finely adjustable
Playback with two tonearms possible
SPEED OPTIONS: 33 ⅓, 45, 78rpm
DRIVE UNIT:
High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-drive
BEARING: Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
PLATTER: 70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
SPEED ACCURACY (MEASURED): < ± 0.05%
POWER CONSUMPTION: Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
TOTAL WEIGHT: Approx. 24kg (without tonearm and power supply)
DIMENSIONS (W/D/H): Approx. 18.11 × 19.09 × 8.66 inches (with tonearm base, without tonearm)
DIMENSIONS (W/D/H): Approx. 460 × 485 × 220mm (with tonearm base, without tonearm)
MANUFACTURER’S WARRANTY: 5 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
Η αναγραφόμενη τιμή είναι για πλατώ χωρίς βραχίονα
