Monitor Audio Gold 500 6G

Περιγραφή

Monitor Audio Gold 500 6G

Monitor Audio Gold 500 6G

Η ναυαρχίδα Monitor Audio Gold 500 6G έχει σχεδιαστεί για να προσφέρει τα υψηλότερα επίπεδα απόδοσης. Διαθέτει τον πιο πρόσφατο μετατροπέα υψηλών συχνοτήτων MPD III μαζί με μια μονάδα οδήγησης HDT, C-CAM 3 ιντσών στη μέση και δύο μονάδες οδήγησης μπάσων 8 ιντσών.

Monitor Audio Gold 500 6G

The flagship Gold 500 6G is engineered to deliver the very highest levels of performance. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and twin 8-inch bass drivers.

The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.

Monitor Audio Gold 500 6G Key Features
Three-way design
1 x MPD III high-frequency transducer
1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
Steel mid-pod enclosure with die-cast aluminium baffle
2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
New crossover design utilising carefully selected high-quality capacitors
Ported cabinet design using HiVe II port technology and through-bolt technology
All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability

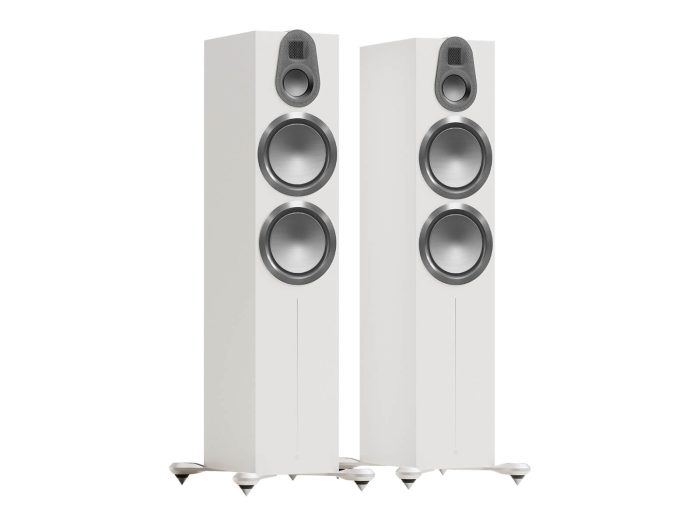

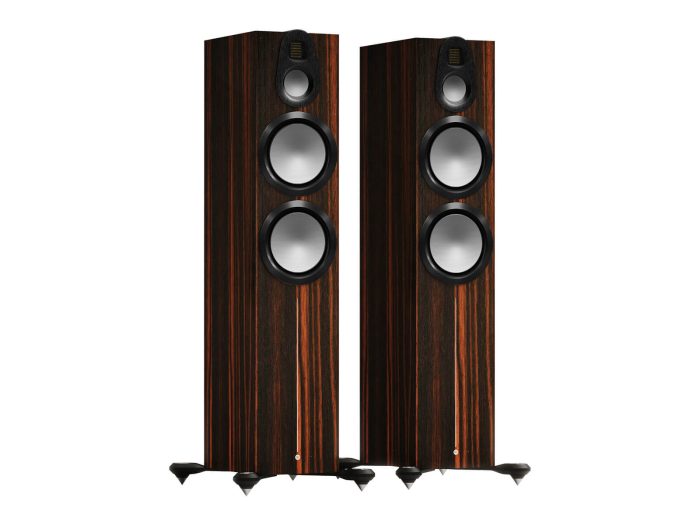

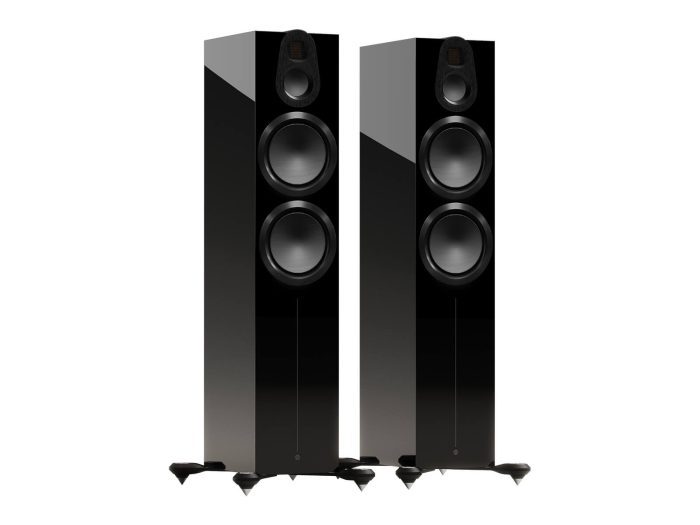

Finishes available: Macassar wood veneer, High-Gloss Black and Satin White

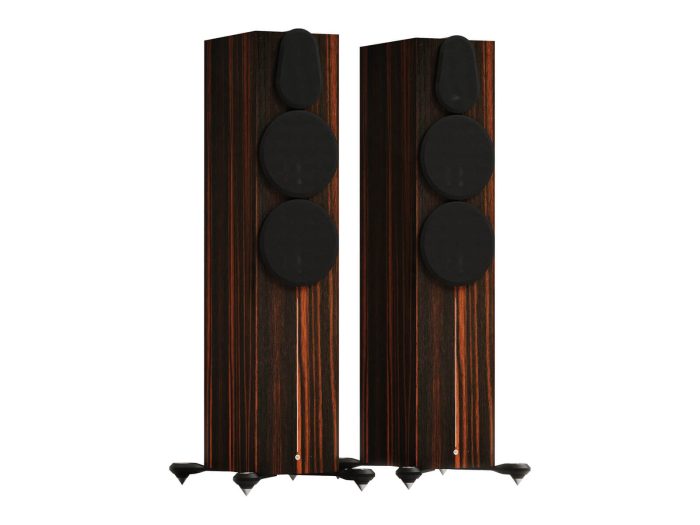

Individual driver ‘Magnetic grilles’ included

A Contemporary Classic.
The story of Monitor Audio’s Gold Series reaches back 36 years. At this level there is no more accomplished combination of speaker design, engineering and truly enjoyable acoustic performance.

Gold in every sense of the word.
Gold Series 6G is comprised of six highly-distinctive models. Each of which is crafted to celebrate and exude the distinctiveness and quality of the Gold Series, while adding innovative acoustic technologies that not only move the envelope of performance, but heighten both the quality of the craftsmanship and listening pleasure.

The all-new Gold Series 6G is built upon an R&D philosophy of maintaining a balance between design and technology. One is never allowed to overpower the other and both play a vital role in delivering on our promise of musical neutrality and acoustic transparency. The physical speakers are designed to sit comfortably within their environment. They are a beautiful statement, but one where perfectly balanced design neutrality means they will blend in for a lifetime of use.

Light, strong, powerful – the perfect piston.
Monitor Audio has been leading the industry in the field of metal driver cone technology for over 40 years. The new Gold Series 6G boasts a totally new metal cone technology in the form of HDT (Hexagonal Diaphragm Technology).

HDT draws on the design of the RDT III cones utilised in Hyphn and the Platinum Series, which consist of a Nomex honeycomb layer sandwiched between Aluminium and Carbon Fibre skins. The new HDT cone employs a hexagonal pattern to disrupt symmetries in the cone breakup.

The finest details, delivered.
The result of an extensive development process to refine and achieve even greater performance, the latest generation of Monitor Audio’s MPD III (Micro Pleated Diaphragm) transducer delivers precise high-frequency sound with greater consistency, clarity and accuracy. The detail achieved makes music sound lifelike, crisp and real. Fine-tuned for effortless musicality.

Impactful, dynamic and controlled bass.
With the new HDT, C-CAM cone, FEA-optimised surround and spider designs, plus increased voice coil length, the new Gold Series 6G’s 6- and 8-inch bass drivers exhibit greater linearity, reducing distortion for cleaner and punchier low end. Rigidly secured in place by a new cast aluminium, light-weight chassis design, it provides the optimum structure with maximum airflow around the drive unit.

Crossover Design – the purest of signals.
Gold Series 6G’s crossovers have been developed using high-quality capacitors and have undergone hundreds of hours of listening by Monitor Audio’s acoustics team. Many iterations have been repeatedly tested to ensure the smoothest, cleanest audio signal is delivered to each drive unit.

As beautifully finished as luxury furniture.
All Gold Series 6G’s cabinets are designed to form the most rigid structure possible, which allows the drivers to perform to their optimum capabilities. Coupled with cleverly calculated geometry, advanced bracing techniques and technically accurate crossovers, the cabinets are an important element of the total system under Monitor Audio’s Transparent Design Philosophy.

Completed in beautiful, contemporary high-gloss, painted and a new, more sustainable man-made veneer, offering a significant reduction compared to the carbon impact of traditional methods of real-wood veneered production. Gold Series 6G exudes a quality that continues to ensure Monitor Audio retains its reputation as a world leader in speaker cabinet design.

The quality of Gold Series 6G will last a lifetime, just as a beautiful piece of luxury furniture would.

Machined & Die-Cast Aluminium Details
The exquisite quality of the Gold Series 6G is the result of paying close attention to even the smallest details. Carefully conceived and delivered with conviction throughout the design, these details combine to make the whole special. The machined aluminium, anodised driver trims are precise and clean; the delicate shadow gaps around them offer a subtle lift to provide an element of sophistication atop the beautifully veneered wooden or painted cabinets.

Plinth and foot assembly
Providing the most stable platform possible for the Gold Series 6G floorstanding speakers to perform from, cast aluminium outrigger style assemblies with steel bracing allow the user to adjust the speaker level with ease.

A machined magnetic top cap, hides the hex key adjustment – and with a simple twist, the height of the spike or rubber foot (depending on the floor surface) can be adjusted simply to find the perfect level.

Monitor Audio Gold 500 6G Specification
System Format 3-way
Sensitivity (2.83v @ 1m, Free-Field) 88.5 dB
Sensitivity (2.83v @ 1m, Installed) N/A
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) 130 – 600 W
Continuous Power Handling (CTA 426-B) 300 W
Nominal Impedance 4 Ohms
Minimum Impedance (20Hz to 20kHz) 4 Ohms @ 150 Hz
Drive Unit Complement
2 x 8” (203 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter
Frequency Response Free-Field (-6dB) 44 Hz – 60 kHz
Frequency Response, In-Room (-6dB) 25 Hz – 60 kHz
Maximum Peak SPL (AES75, Z-weighted) 122 dB
Bass Alignment HiVe II Ported
Port Tuning Frequency 33 Hz
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 2.6 kHz
External Dimensions with all accessories fitted (H x W x D)
1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”)
Weight (each) 26.5 kg (58 lb 7 oz)
Sold As Pair
