Gold Note PH-1000

Περιγραφή

GOLD NOTE PH-1000

THE MOST ADVANCED PHONO STAGE

Το Gold Note PH-1000 είναι απλώς το καλύτερο Phono Stage που έχουμε δημιουργήσει ποτέ, ένα μηχάνημα σχεδιασμένο να είναι καινοτόμο με κάθε δυνατό τρόπο ενώ είναι κατασκευασμένο από την αρχή ώς το τέλος στην Ιταλία. Διαθέτει διακριτά εξαρτήματα, Class A τοπολογία, έξοδο ακουστικών, άπειρες καμπύλες EQ με 4 χειροκίνητα ρυθμιζόμενες προεπιλογές συν 36 καμπύλες EQ. Για πρώτη φορά μπορείτε να παίξετε οποιονδήποτε δίσκο με τον τρόπο που γράφτηκε, χάρη στις άπειρες καμπύλες EQ που είναι διαθέσιμες – γι’ αυτό το PH-1000 είναι ένα πλήρες παιχνίδι που αλλάζει το παιχνίδι, ανοίγοντας μια νέα εποχή στην αναπαραγωγή βινυλίου.

• The PH-1000 is simply the best Phono Stage we have ever created, a unique piece of audio engineering designed to be innovative in every possible way and 100% made in Italy. Featuring class A exclusive discrete components like a class A headphone output, infinite EQ curves with 4 manually adjustable presets plus 36 EQ curves. For the first time ever, you will be able to play virtually any record the way it’s meant to be thanks to the infinite EQ curves available – that’s why the PH-1000 is a complete game-changer, opening a new era in vinyl reproduction.
• PERFECT CARTRIDGE MATCHING
• With 14 Gain levels and 12 Load levels, as well as 7 Capacitance options dedicated to MM cartridges, it is the ideal phono stage for high-performance analogue systems, capable of driving even the most exotic cartridges with perfect synergy, making the PH-1000 a professional instrument for high-end studio recording.
  On top of that, you can change settings and make ultra-fine adjustments, including the EQ curve, simply by using the SKC and the display as you are playing music. Our innovative technology allows the best ease of use while preserving entirely the sound quality as it works in the analogue domain: the interface is digital and independent from the audio path, which is completely analogue. The result is an ultra-low noise phono stage with high gain and no audio filters.
  All the functionalities are in fact managed through discrete audio-grade components and sealed single switches, always shortening the signal path to deliver superior audio quality and extract even the finest details from the vinyl record. Powered by our custom firmware, the PH-1000 can be easily updated via computer when necessary.
• MAXIMUM FLEXIBILITY

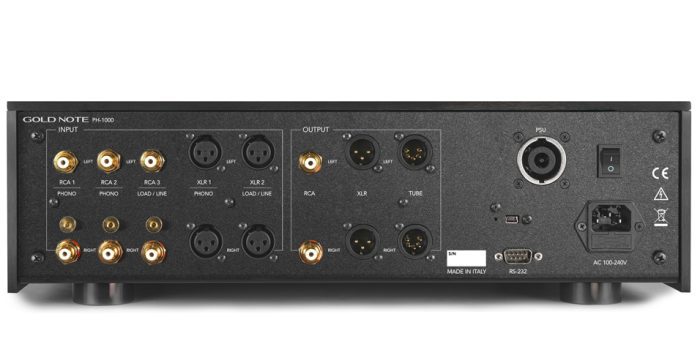

• The PH-1000 offers 3 independent inputs, two RCA and one XLR. There are also 2 other inputs, one RCA and one XLR, that can be used either for the external load plugs for even finer control of the Load or as line inputs on the PH-1000 with Preamp.
  Add the other functionalities, such as the Headphone Output, the Stereo/Mono control with phase inversion, the L/R Channel Swap, and the Rumble Subsonic Filter, and here you have it, the most advanced phono stage on the market.
• HIGH-QUALITY COMPONENTS
• The level of quality meets the highest standard throughout the entire production: from the aluminium ultra-solid chassis machined with precision to the electronic components and circuitry that undergo strict QC computer-controlled tests.
• UNLIMITED EQ CURVES
• RIAA, Capitol, Columbia/CBS, Deutsche Grammophon, Decca London USA, Decca London UK, and Decca Mono 78rpm,
  Epic, HMW, Mercury, RCA Victor, Philips, Elektra, L’Oliseau-Lyre, Parlophone, and more. Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.
• TOTAL CONTROL

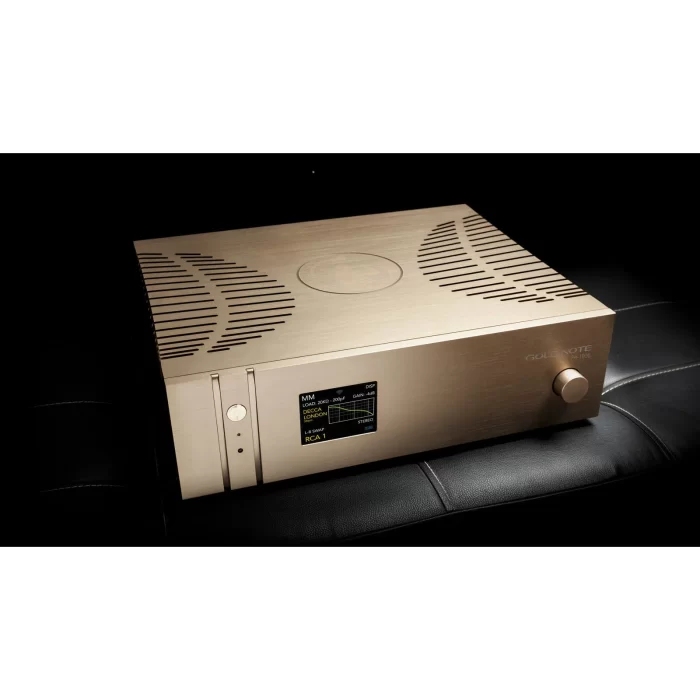

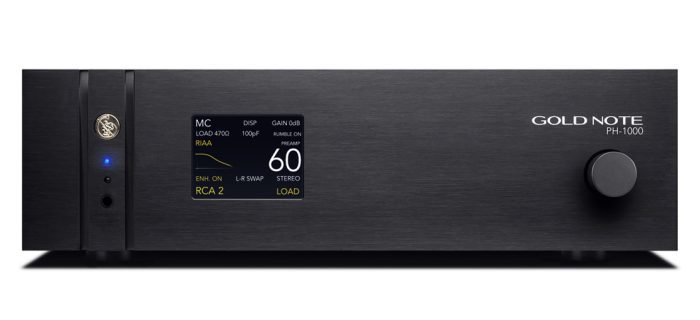

• The PH-1000 shows every detail on the colour display powered by our proprietary firmware. With the SKC (Single Knob Control technology) and the display, you have an intuitive system to easily control the phono stage and quickly make fine adjustments without even interrupting the playback.
• HEADPHONE OUTPUT
• You can now enjoy the shortest audio path ever with the PH-1000, your turntable, and your headphones – that’s all you need for the audio signal to go from the vinyl directly into your headphones without the need for additional stages.
• MODULAR DESIGN
• For the most demanding audiophiles, the PH-1000 can also be further enhanced with our external power supply PSU-1250 / PSU- 1000, or even the external tube output stage TUBE-1012 / TUBE-1006, to reach the highest level of musical realism in terms of dynamic, details, and imaging.
• GOLD NOTE PH-1000 TECHNICAL SPECIFICATIONS
• FREQUENCY RESPONSE
• 20Hz – 20kHz
• EQ CURVES
• 18 EQ curves all with Enhanced option (+/- 0.3dB)
• Infinite EQ curves with 4 manually adjustable presets (only on PH-1000 / PH-1000 LINE)
• THD (TOTAL HARMONIC DISTORTION)
• <0.01% max.
• SIGNAL TO NOISE RATIO
• 100dB
• DYNAMIC RANGE
• 110dB
• INFRASONIC FILTER
• 10Hz/36dB octave (ON/ OFF)
• MONO/STEREO
• Stereo, Stereo 180°, Mono, Mono 180°, Mono L
• CHANNEL SWAPPING
• R/L, L/R
• IR RECEIVER
• For multifunctional remote control
• AUDIO INPUTS
• 2x unbalanced RCA (0.1mV MC up to 8.0mV MM)
• 1x balanced XLR (0.1mV up to 1.0mV MC)
• LOAD
• 12 options for RCA
  [100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
• 8 options for XLR
  [4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
• External Load supports RCA and XLR plugs (only on PH-1000 / PH-1000 LINE)
• CAPACITANCE
• OFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
• GAIN
• PH-1000 / PH-1000 LINE
  40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
• PH-1000 LITE
  40dB MM to 60dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
• LINE INPUT LEVEL
• 2Vrms (standard) up to 2,5Vrms (max)
• AUDIO OUTPUTS
• 1x unbalanced RCA @1V
• 1x balanced XLR @4V
• 1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
• OUTPUT IMPEDANCE
• Unbalanced 100Ω
• Balanced 300Ω
