Douk Audio T4 PLUS

Περιγραφή

Douk Audio T4 PLUS

Douk Audio T4 PLUS

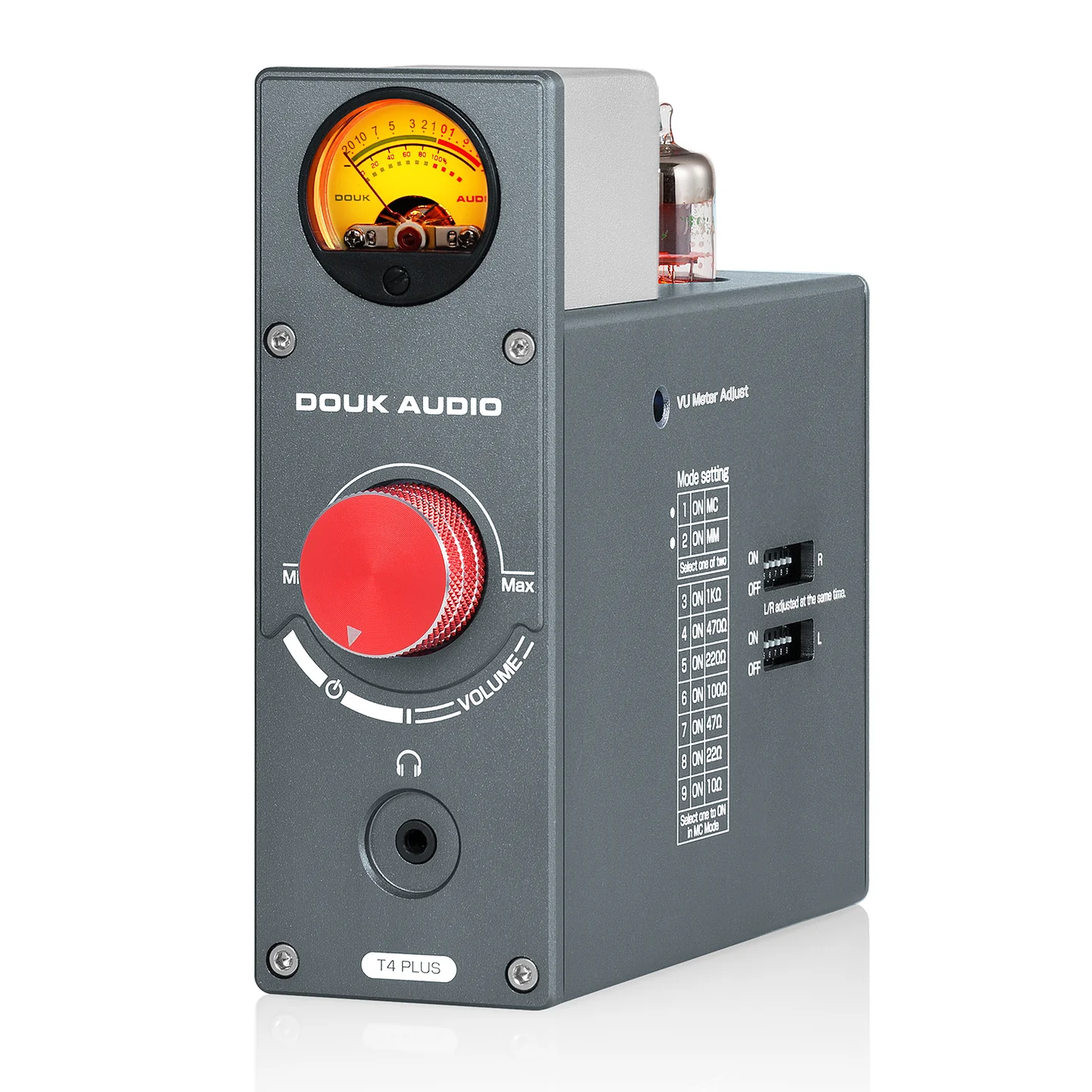

Douk Audio T4 PLUS HiFi προενισχυτής Phono λυχνίας για πικάπ με προενισχυτή ακουστικών και VU μετρο

Douk Audio T4 PLUS

Douk Audio T4 PLUS HiFi Vaccum Tube Phono Preamp for Turntable Stereo Preamp Headphone Amp w/VU Meter

Douk Audio T4 PLUS Features

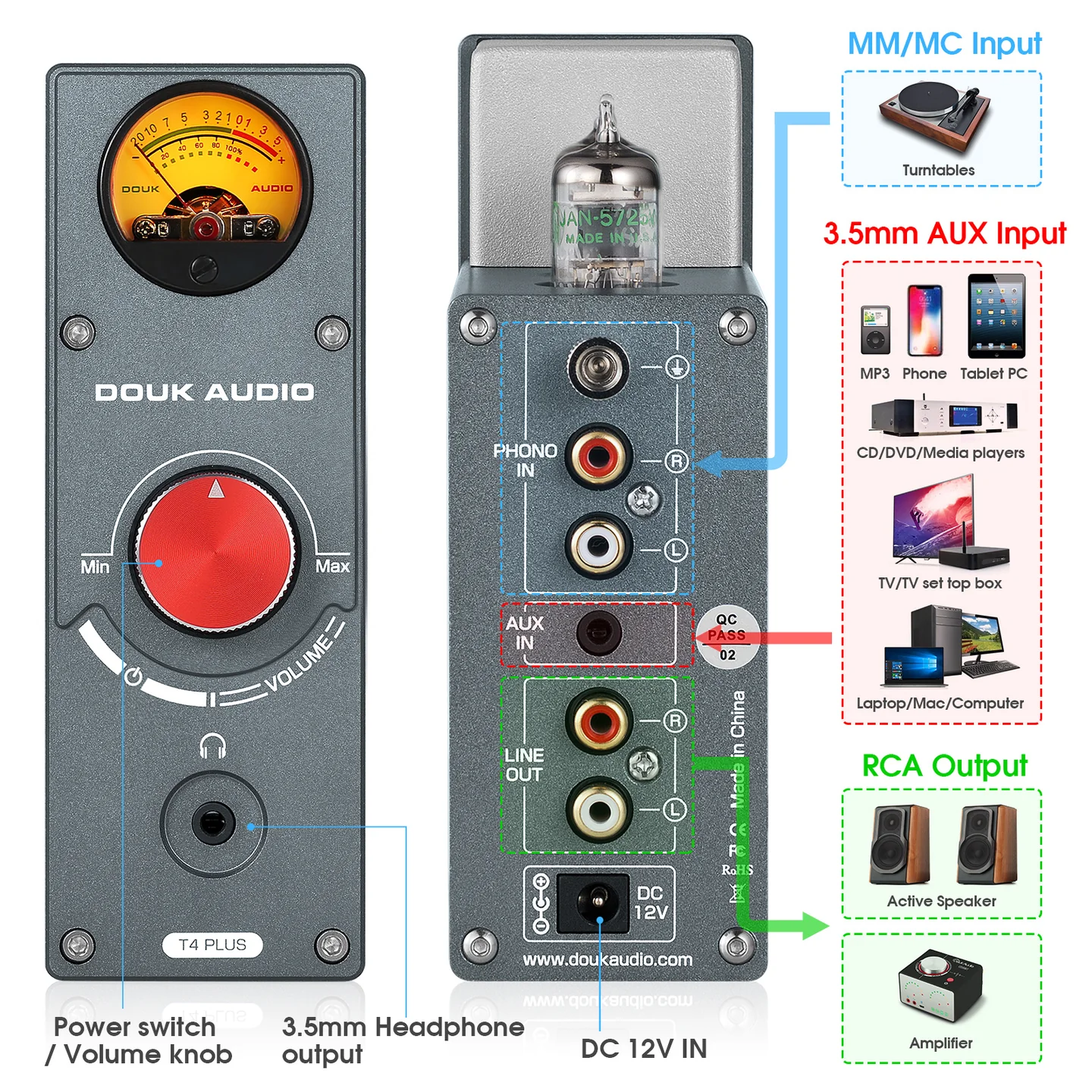

Input: MM Phono / Turntable / 3.5mm AUX
Output: Stereo L/R RCA / 3.5mm Headphone Jack
JAN5725 Retro Tubes + VU Meter
Built-in Classic Headphone Amp Circuit (2*NE5532)
Solid Aluminum Alloy Knob & Gold-Plated Terminals
T4 PLUS tube preamp meets more HiFi audio needs: MM /MC phono input, support multiple input impedance switch (1KΩ/470Ω/220Ω/100Ω/47Ω/22Ω/10Ω), converts phono signal to line level signal, low-noise integrated circuits and high-quality components to ensure clear sound. 3.5mm AUX input, amplify the low level audio signal from your phone, tablet, PC, MP3 etc., easier to drive amplifier or active speaker and greatly improve the sound quality.
Unique and amazing combination in the appearance: integrated T4 PLUS preamp with retro tubes and VU meter into a whole, the pointer dancing in the warm light with strong vintage feelings when enjoy HiFi music, dynamically decorates the audio system and give you a different acoustic enjoyment with large dynamic and sweet tube sound even in limited space.

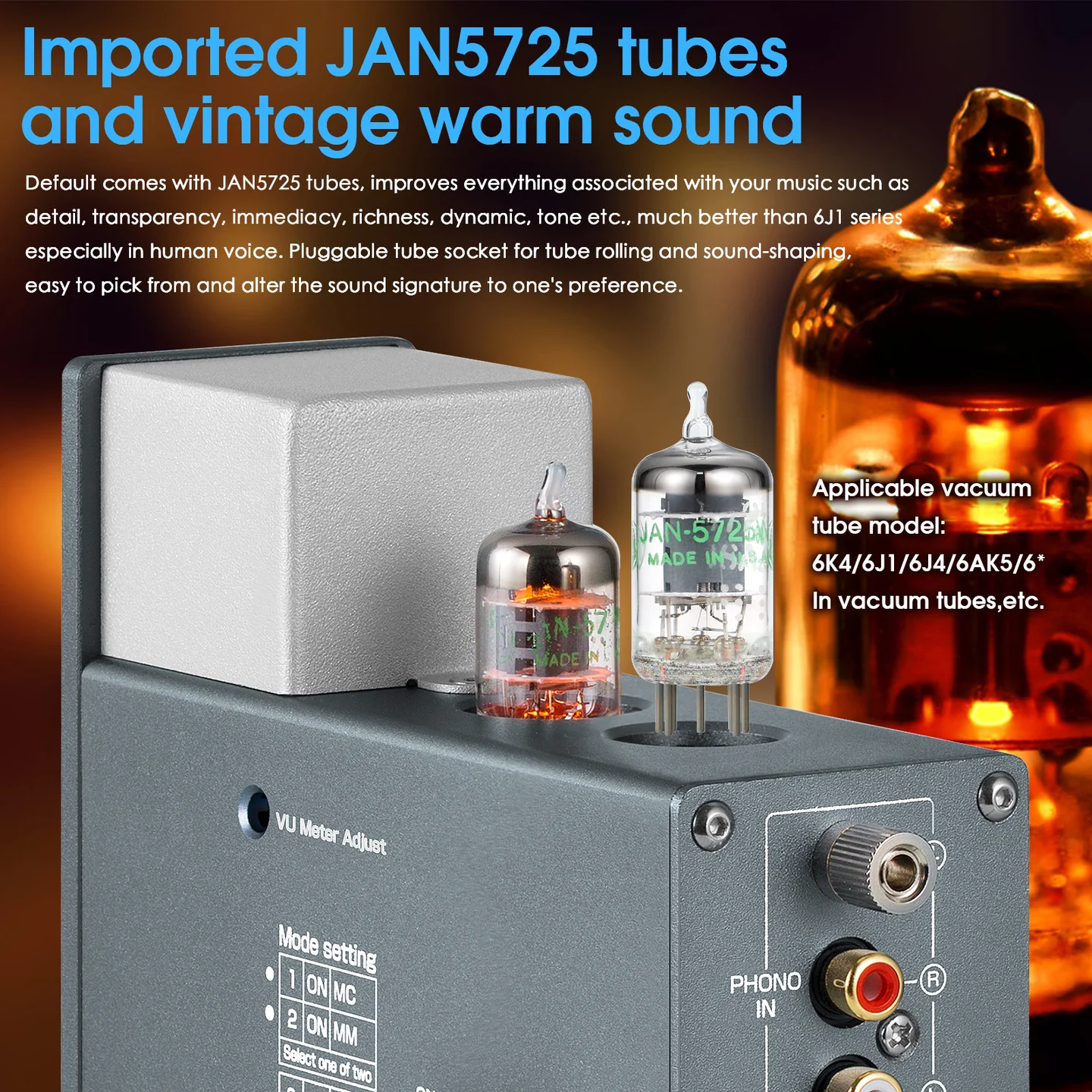

Imported JAN5725 tubes and vintage warm sound: default comes with JAN5725 tubes, improves everything associated with your music such as detail, transparency, immediacy, richness, dynamic, tone etc., much better than 6J1 series especially in human voice. Pluggable tube socket for tube rolling and sound-shaping, easy to pick from and alter the sound signature to one’s preference.

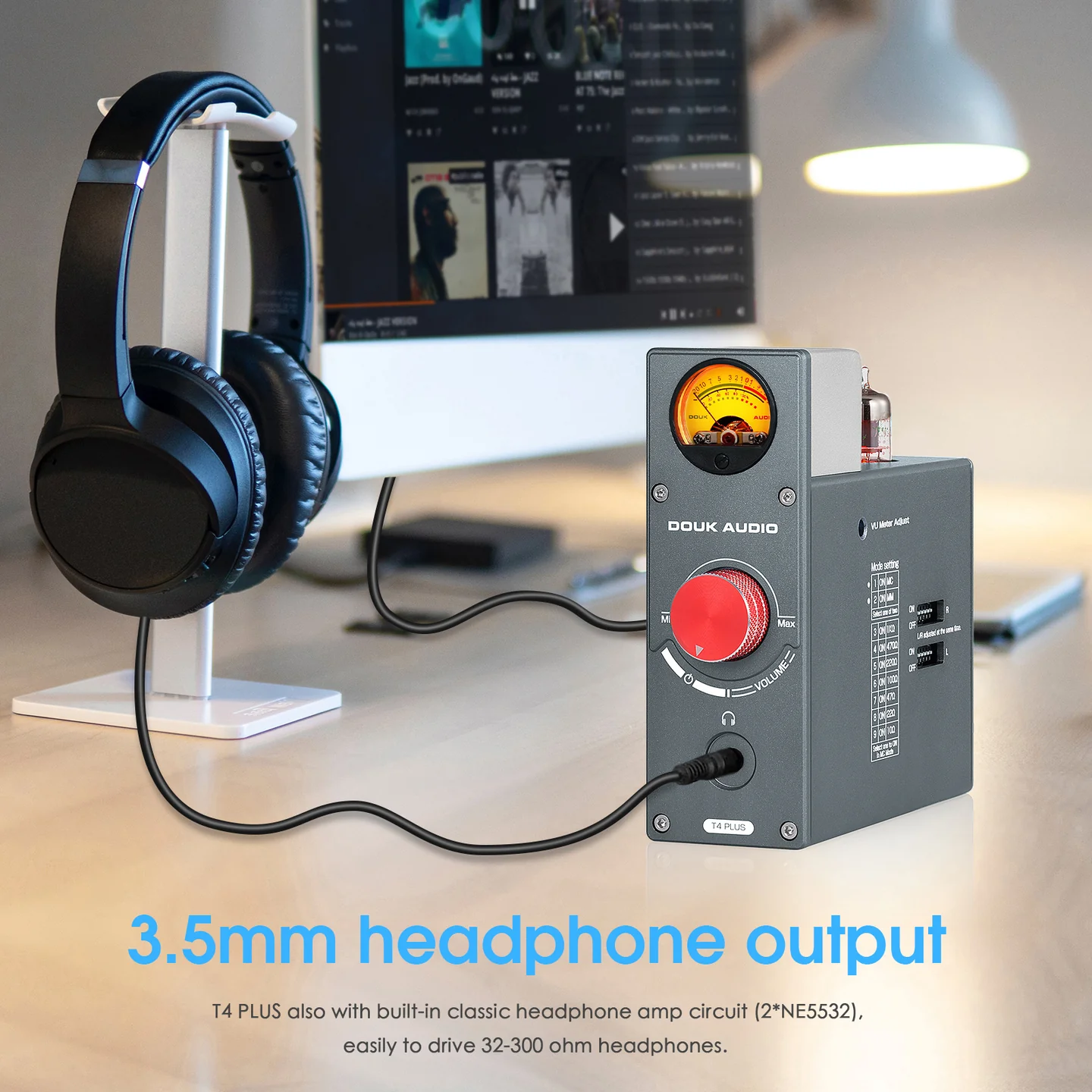

3.5mm headphone output and perfect circuit design: T4 PLUS also with built-in classic headphone amp circuit (2*NE5532), easily to drive 32-300 ohm headphones. Reasonable and advanced architecture, TI TPS5430+7205MOS for power management, TL071+JRC2068 phono preamp circuit etc., enjoy HiFi analog sound and first-class design with an unbeatable low cost.

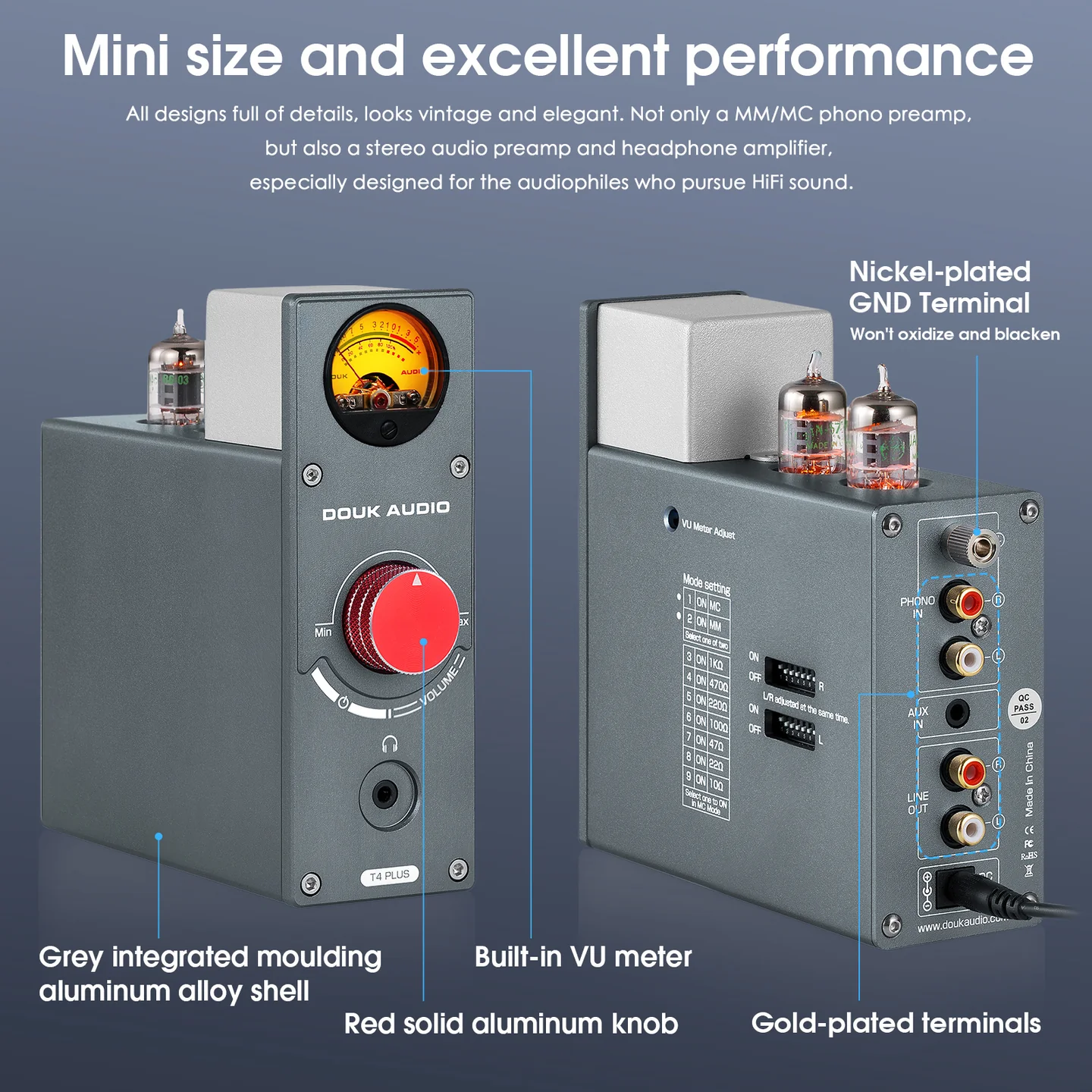

Mini size and excellent performance: all designs full of details, such as solid aluminum alloy knob, gold-plated terminals, grey integrated moulding aluminum alloy shell decorates with built-in VU meter, looks vintage and elegant. Not only a MM/MC phono preamp, but also a stereo audio preamp and headphone amplifier, especially designed for the audiophiles who pursue HiFi sound.
Brand: Douk Audio
Model: T4 PLUS
Audio input: MM phono / turntable / 3.5mm AUX
Audio output: stereo L/R RCA / 3.5mm headphone jack
Max output power of headphone jack: 150mW@32Ω
Matched headphone impedance: 32-300Ω
AUX IN
AUX input level: 0.775V
RCA max output level: 1.5V
Frequency response: 20Hz-20KHz (±0.3dB)
S/N ratio: ≥110dB
THD: 0.2%
Phono IN
Phono input level: 0.005V
RCA max output level: 300mV (MM) / 3V (MC)
Frequency response: conforms to RIAA characteristics (±3dB)
S/N ratio: 71dB
THD: 0.8%
Working voltage: DC 12V
Dimensions(W*D*H): 50*137*146mm / 1.97*5.39*5.75in
Package dimensions(W*D*H): 300*230*65mm / 11.81*9.06*2.56in
Net weight: 640g / 1.41lb
Package weight: 1000g / 2.20lb

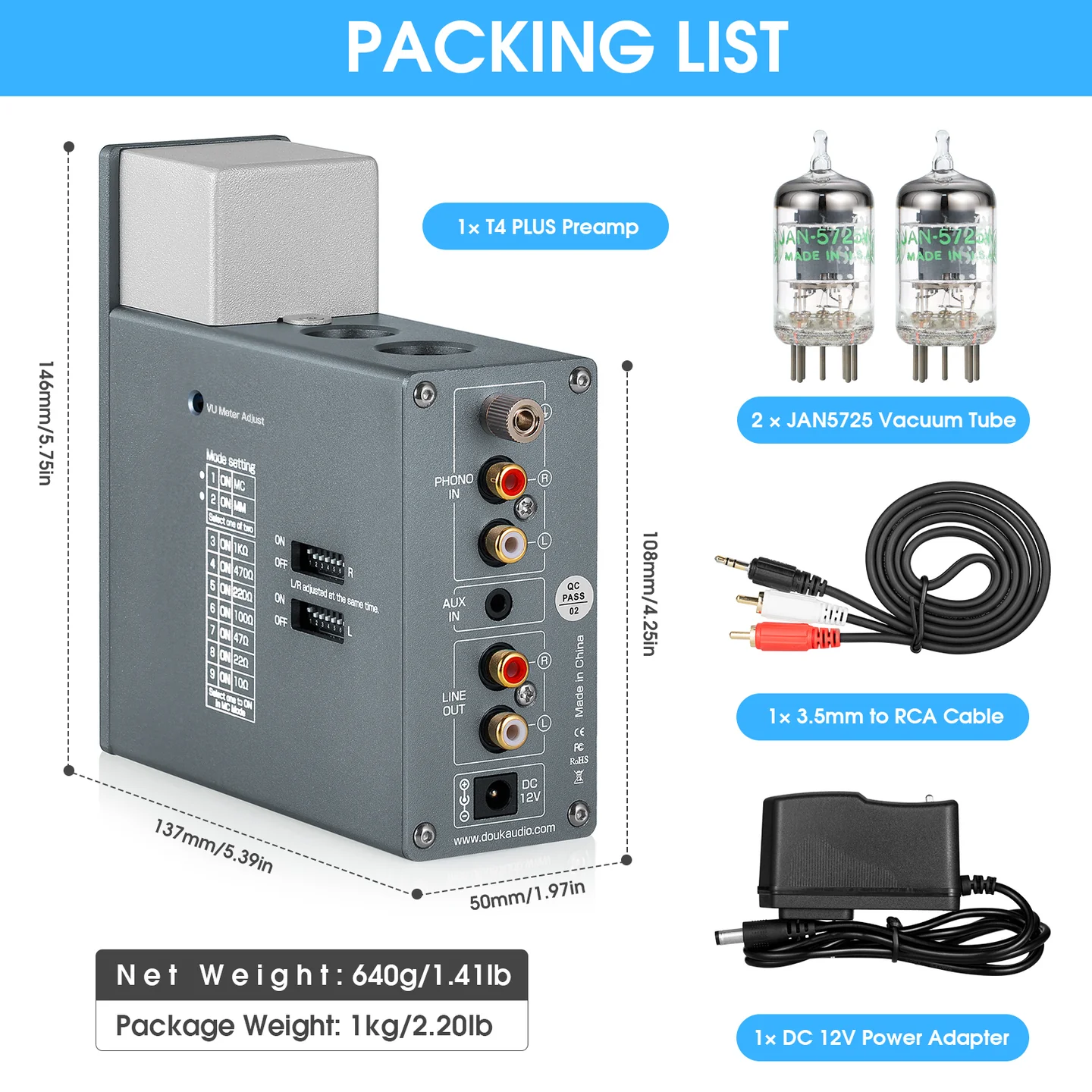

T4 PLUS Preamp ×1
JAN5725 Vacuum Tube ×2
DC 12V Power Adapt
Versatile Phono Input
Douk Audio T4 Plus offers a range of input impedance options, from 10Ω to 1KΩ, ensuring compatibility with various turntables and delivering a pristine, noise-free audio experience.
Multi-Device Compatibility
With a 3.5mm AUX input, this preamp can amplify audio from smartphones, tablets, PCs, and MP3 players, enhancing sound quality and making it a versatile addition to any audio setup.
Vintage Aesthetics with Modern Performance
T4 Plus combines a retro tube design with a VU meter, creating a visually stunning piece that evokes nostalgia while providing a dynamic and rich HiFi sound.
Premium Tube Amplification
Equipped with US JAN5654 tubes, this preamp enhances music detail and warmth, offering superior sound quality, especially in vocal clarity, compared to the 6J1 series.
Customizable Sound Experience
The pluggable tube socket allows for easy tube rolling, enabling users to tailor the sound signature to their personal preferences.
High-Performance Headphone Output
The built-in headphone amp circuit (2*NE5532) is designed to drive a wide range of headphones from 32 to 300 ohms, providing a first-class listening experience with an unbeatable cost.
Compact Size with Big Performance
Despite its mini size, T4 Plus boasts a solid aluminum alloy construction, gold-plated terminals, and a sophisticated design that makes it a high-performance, elegant addition to any HiFi system.
