Clearaudio Basic V2 MM-MC
![Already the design, with all its minimalism, points to the decisive progress that lies in this phono pre-stage. Visually inspired by the legendary absolute phono paart also the basic V2 audiophile innovation with the grown analog competence of clearaudio.](https://nexusacoustics.gr/wp-content/uploads/2024/07/Clearaudio-Basic-V2-MM-MC-400x276.jpg)
Clearaudio Basic V2 MM-MC
Ήδη ο σχεδιασμός, με όλο τον μινιμαλισμό του, δείχνει την αποφασιστική πρόοδο που βρίσκεται σε αυτό το phono pre-stage. Εμπνευσμένο οπτικά από το θρυλικό απόλυτο phono part και τη βασική audiophile καινοτομία V2 με την αυξημένη αναλογική ικανότητα του clearaudio.
Clearaudio Basic V2 MM-MC
Already the design, with all its minimalism, points to the decisive progress that lies in this phono pre-stage. Visually inspired by the legendary absolute phono paart also the basic V2 audiophile innovation with the grown analog competence of clearaudio.
Already the design, with all its minimalism, points to the decisive progress that lies in this phono pre-stage. Visually inspired by the legendary absolute phono paart also the basic V2 audiophile innovation with the grown analog competence of clearaudio.
Their case is milled from high quality all-aluminum and is available in the original color of the material or black anodised. The only visible control element on the top is a discreet power switch, which – once activated – opens up the entire spectrum of complex sound spectra.
This can be optimally exploited according to the technical equipment of the user: At the bottom can be selected manually by means of a switch between moving coil (MC) and moving magnet operation (MM).

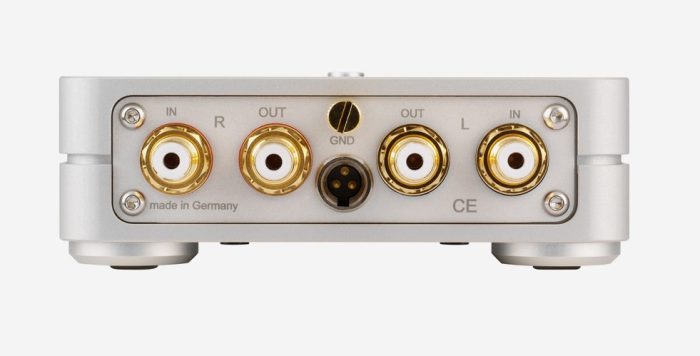

Due to the pickup adjustment in active MC mode, the basic V2 is compatible with the most demanding MC systems on the market without additional settings. Their equipment guarantees a significant improvement in performance. On the one hand there are the gold-plated RCA inputs and outputs, the processing of which sets standards in quality and performance in the trouble-free signal transmission.
On the other hand, the basic V2 has an optionally switchable subsonic filter that suppresses extremely low, potentially disturbing frequencies in MM / MC mode. The RIAA equalization accuracy is well below 0.1 decibels.
Because of such features, this reveals an analogous sound image of revolutionary authenticity in the audiophile allrounder segment. Conserved music was never accessible to consumers in such detail.
Clearaudio Basic V2 MM-MC Specifications
FASHION MM / MC (Subsonic filter switchable)
GAIN @ 1 KHZ +46 dB (MM mode)
+66 dB (MC mode)
INPUT IMPEDANCE 47 kOhm / 270 pF (MM mode)
500 ohms / 270 pF (MC mode)
MM / MC INPUT switchable (on underside)
RIAA 75 μs / 318 μs / 3180 μs, 2 passive filters
RIAA ACCURACY ± 0.1 dB
THD <0.002% (IEC A)
SIGNAL-TO-NOISE RATIO -72 dB (MM mode)
-67 dB (MC mode)
CROSSTALK > 90 dB (@ 1 kHz)
MAX. OUTPUT VOLTAGE > 10 V (@ 1 kHz)
SUBSONIC FILTER 20 Hz (-18 dB / oct .; switchable to underside, for each channel)
POWER CONSUMPTION Max. Power consumption during operation: 3 Watt
standby mode: <0.3 Watt
POWER SUPPLY ± 18 V DC (external power supply, 1.4 m cable length)
OUTPUTS asymmetric (cinch)
MASS approx. 1.2 kg (pre-stage + power supply)
DIMENSIONS (B / T / H in inches) Pre-Stage: 4.64 x 5.71 (6.22 with MPC Cinch) x 1.65
Power Supply: 3.94 x 2.17 x 3.46
DIMENSIONS (W / D / H in mm) Pre-Stage: 118 x 145 (158 with MPC Cinch) x 42
Power Supply: 100 x 55 x 80
WARRANTY 3 years *
