Electrocompaniet EC 4.8 MKII Reference

Περιγραφή

Electrocompaniet EC 4.8 MKII Reference

Ο Electrocompaniet EC 4.8 MKII Reference είναι ο προενισχυτής αναφοράς Line Level, Dual Mono, Balanced που λειτουργεί σε τάξη Α. Ο προενισχυτής διαθέτει xlr & rca εισόδους και εξόδους.

Electrocompaniet EC 4.8 MKII Reference

• EC 4.8 MKII REFERENCE PREAMPLIFIER
  With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!
• Electrocompaniet EC 4.8 MKII Reference TECHNICAL SPECIFICATIONS
  All measurements are made at 120V / 240V //50Hz / 60HzInput impedance 47 Kohm
  Output impedance 100 ohm
  Max input +-15 Vp-p ( +- 30Vp-p Bal)
  Max output +-30 Vp-p ( +- 30Vp-p Bal)
  Minimum gain -111dB
  Maximum gain 6dB
  Noise Floor(0 dB gain) < -130 dB
  Frequency responce 1 – 200 kHz
  Channel Seperation > 120dB
  THD (1V in, 1V out) <0.002%Power consumption (no load or signal) 30 WDimensions and Waight
  Width 470 mm – 18.5 inches
  Depth 372 mm – 14.64 inches
  Height 80 mm – 3.14 inches
  Weight 11.3 kg – 24.9 lbsInputs
  Balanced 2 x 2 channel
  Single ended 3 x 2 channelControl Ports
  Nettwork 3 x SPAC
  Programming 1 x USB

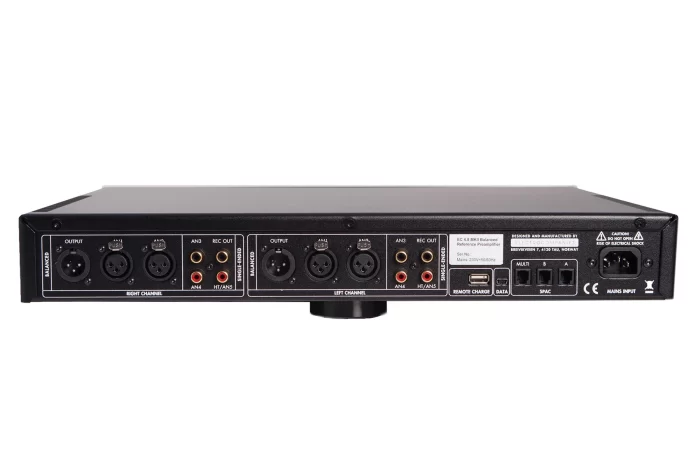

  Outputs
  Balanced 1 x 2 channel
  Single ended Record Out
