Περιγραφή

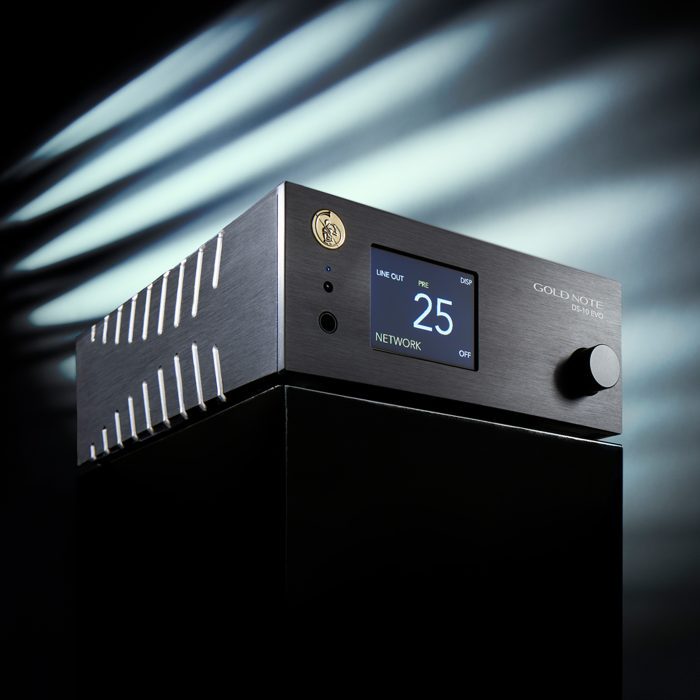

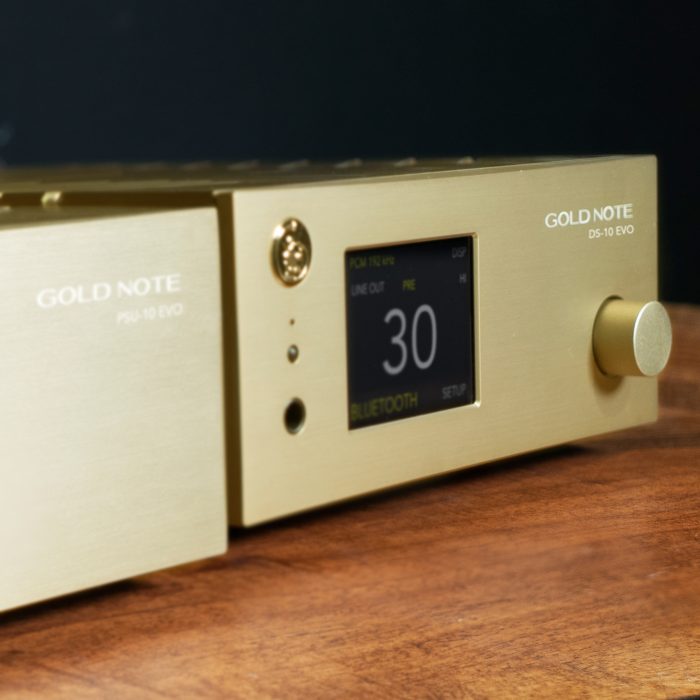

GOLD NOTE DS-10 EVO
- Το νέο σύνορο στην ψηφιακή μουσική
Το DS-10 EVO είναι ένα ευέλικτο και καινοτόμο streaming DAC, εξοπλισμένο με έναν μετατροπέα D/A τελευταίας τεχνολογίας, έναν προενισχυτή γραμμής και έναν ενισχυτή ακουστικών. Εκτός από τις πολυάριθμες επιλογές συνδεσιμότητας, διαθέτει επίσης Bluetooth υψηλής ευκρίνειας και επαγγελματική έξοδο ακουστικών. Το DS-10 EVO υποστηρίζει αρχεία υψηλής ανάλυσης, όπως MQA και DSD (μέχρι DSD512), για να προσφέρει μια απαράμιλλη εμπειρία ακρόασης ψηφιακής μουσικής. Η τεχνολογία του DS-10 EVO στεγάζεται σε ένα συμπαγές πλαίσιο αλουμινίου, καθιστώντας αυτή τη μονάδα την τέλεια προσθήκη σε κάθε σύγχρονο ηχοσύστημα High-End. - Με το DS-10 EVO, μπορείτε να κάνετε ροή μουσικής μέσω Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner και Deezer, να αποκτήσετε πρόσβαση σε μια συλλογή ψηφιακής μουσικής που είναι αποθηκευμένη τοπικά σε μονάδα flash NAS ή USB ή από smartphone ή tablet σας, μέσω της εφαρμογής GN Control (διατίθεται δωρεάν σε iOS και Android) και απευθείας από την εφαρμογή Tidal χάρη στην εφαρμογή του Tidal Connect. Επιπλέον, το DS-10 EVO είναι Roon Ready και συμβατό με όλες τις υπηρεσίες UPnP/DLNA και Airplay 2.0. Μπορεί να συνδεθεί στο δίκτυο χρησιμοποιώντας θύρα Wi-Fi ή Ethernet και, ταυτόχρονα, σε ενισχυτή ισχύος ή ενεργά ηχεία για να εξερευνήσετε τις απεριόριστες δυνατότητες της μουσικής υψηλής ανάλυσης.
- GOLD NOTE DS-10 EVO
- The new frontiers of digital music
The DS-10 EVO is a versatile and innovative streaming DAC, equipped with a state-of-the-art D/A converter, a line preamplifier and a headphone amplifier. In addition to its numerous connectivity options, it also features high-definition Bluetooth and a professional headphone output. The DS-10 EVO supports high-resolution files, such as MQA and DSD (up to DSD512), to provide an unparalleled digital music listening experience. The DS-10 EVO’s technology is housed in a compact aluminium chassis, making this unit the perfect addition to any modern High-End audio system. - With the DS-10 EVO, you can stream music via Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner and Deezer, access a collection of digital music stored locally on a NAS or USB flash drive, or from a smartphone or tablet, via the GN Control app (available for free on iOS and Android) and directly from the Tidal application thanks to the implementation of Tidal Connect. Furthermore, the DS-10 EVO is Roon Ready and compatible with all UPnP/DLNA and Airplay 2.0 services. It can be connected to the network using Wi-Fi or Ethernet port and, at the same time, to a power amplifier or active speakers to explore the limitless possibilities of high-resolution music.
- The DS-10 EVO features a unique function that sets it apart from any other DAC, making it extremely flexible: it is possible to modify the DAC profile to adapt it to the music being played, without degrading the audio signal and maintaining the highest quality, by acting on the de-emphasis parameters, on the low-pass digital filters and the DSD filter. These parameters can be adjusted in real-time during playback, quickly and intuitively thanks to the dedicated menu and the TFT display.
- On the 2.8″ TFT display, it is possible to quickly view all the available functions and manage them via the SKC (Single Knob Control) knob located on the front panel, the Gold Note remote control or the dedicated GN Control App.
GN Control shows on a smartphone or tablet all the information regarding the track being played, such as the format and resolution, while the user experience is super intuitive thanks to a cutting-edge interface and the possibility of performing firmware updates directly from the internet.
Roon Ready devices have integrated Roon streaming technology and are certified by Roon Labs to provide the highest level of quality and performance in high-resolution streaming. - GOLD NOTE DS-10 EVO INPUTS AND OUTPUTS
- DIGITAL INPUTS
1x RCA coaxial PCM up to 24bit/192kHz
1x AES/EBU balanced PCM up to 24bit/192kHz
2x TOS-Link PCM up to 24bit/192kHz
1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz
1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in
FAT32/NTFS (32Gb max for pen drives)
ANALOGUE INPUT
1x 3.5mm mini-jack (input impedance 10kΩ) - AUDIO OUTPUTS DAC
1x unbalanced RCA 2Vrms
1x balanced XLR 2Vrms
AUDIO OUTPUTS PREAMP
1x unbalanced RCA
1x balanced XLR
1x headphone 6,3mm jack on front panel (double gain)
OUTPUT IMPEDANCE
50Ω - GOLD NOTE DS-10 EVO MAIN FEATURES
- MAIN FEATURES
D/A CONVERTER CHIP AKM AK4493
FREQUENCY RESPONSE 20Hz-20kHz +/-0.1dB
THD (Total Harmonic Distortion) 0.001% max
SIGNAL TO NOISE RATIO 125dB
DYNAMIC RANGE 120dB
PREAMP STAGE VOLUME CONTROL Enabled/Disabled
NETWORK CONNECTIVITY LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps) Bluetooth: High Definition 5.0 (44/16)
HIGH QUALITY STREAMING Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner - SUPPORTED AUDIO FORMATS
Up to PCM 32bit/384kHz
DSD256 (DSF, DFF)
AIFF (.aif, .aiff, .aifc)
ALAC
WAV (.wav) packed/unpacked
FLAC
MP3
Apple Lossless
OGG
Monkey’s
SUPPORTED MEDIA SERVERS
All UPnP*
DLNA
Roon
*UPnP server must support DSD streaming in order to stream DSD files.
