FiiO Warmer R2R

Περιγραφή

FiiO Warmer R2R

FiiO Warmer R2R

Το FiiO Warmer R2R ειναι 24bit/192kHz dac. Εισοδοι: 1x Coaxial, 1x Optical, 1x USB-C. Εξοδοι: 1x RCA Line, 1x XLR Line.
Το FiiO Warmer R2R ειναι Coaxial 24bit/192kHz και USB 32bit/384kHz, DSD256 dac. Εισοδοι: 1x Coaxial, 1x Optical, 1x USB-C. Εξοδοι: 1x RCA Line, 1x XLR Line.

FiiO Warmer R2R

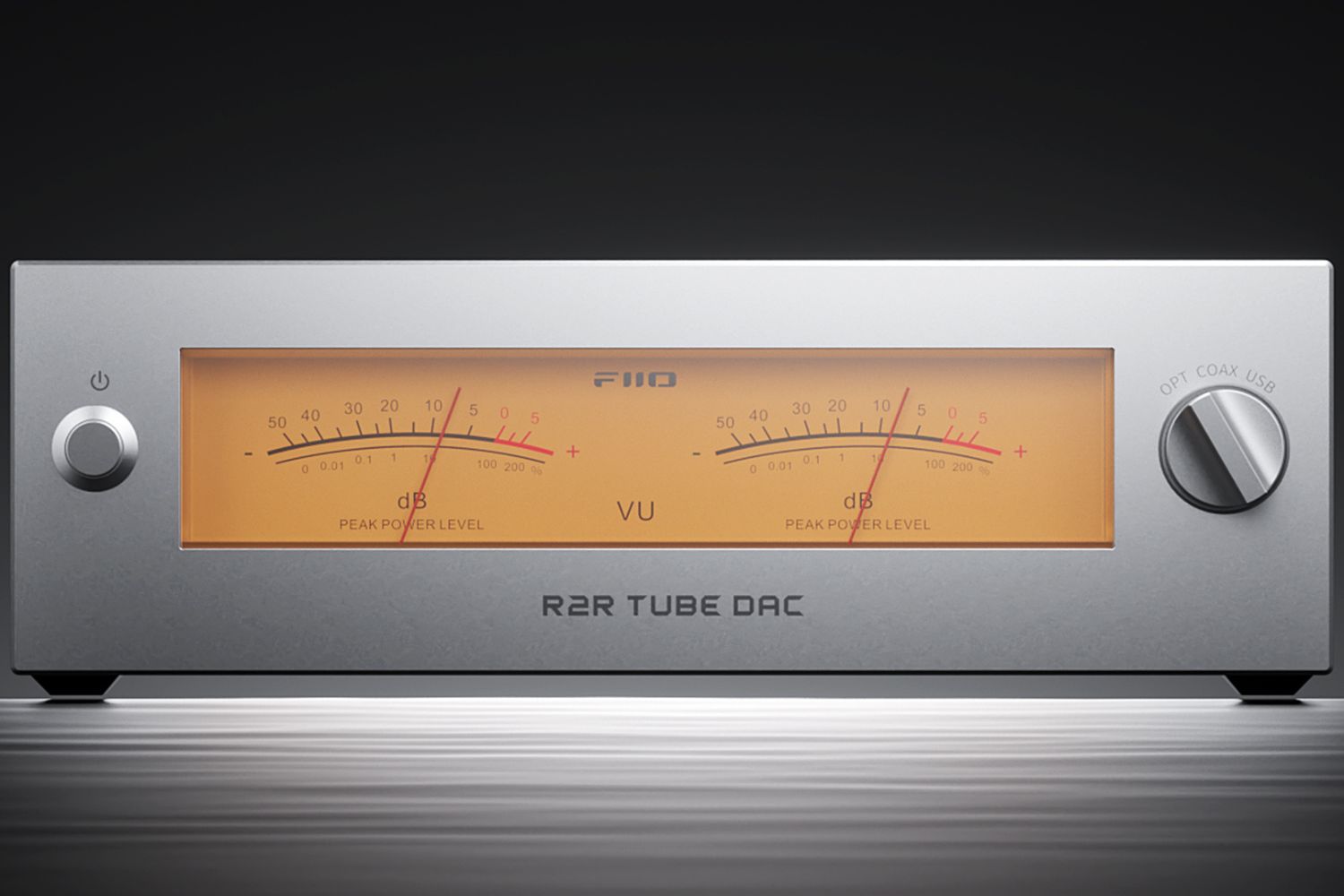

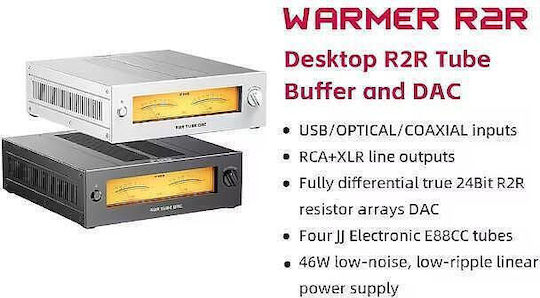

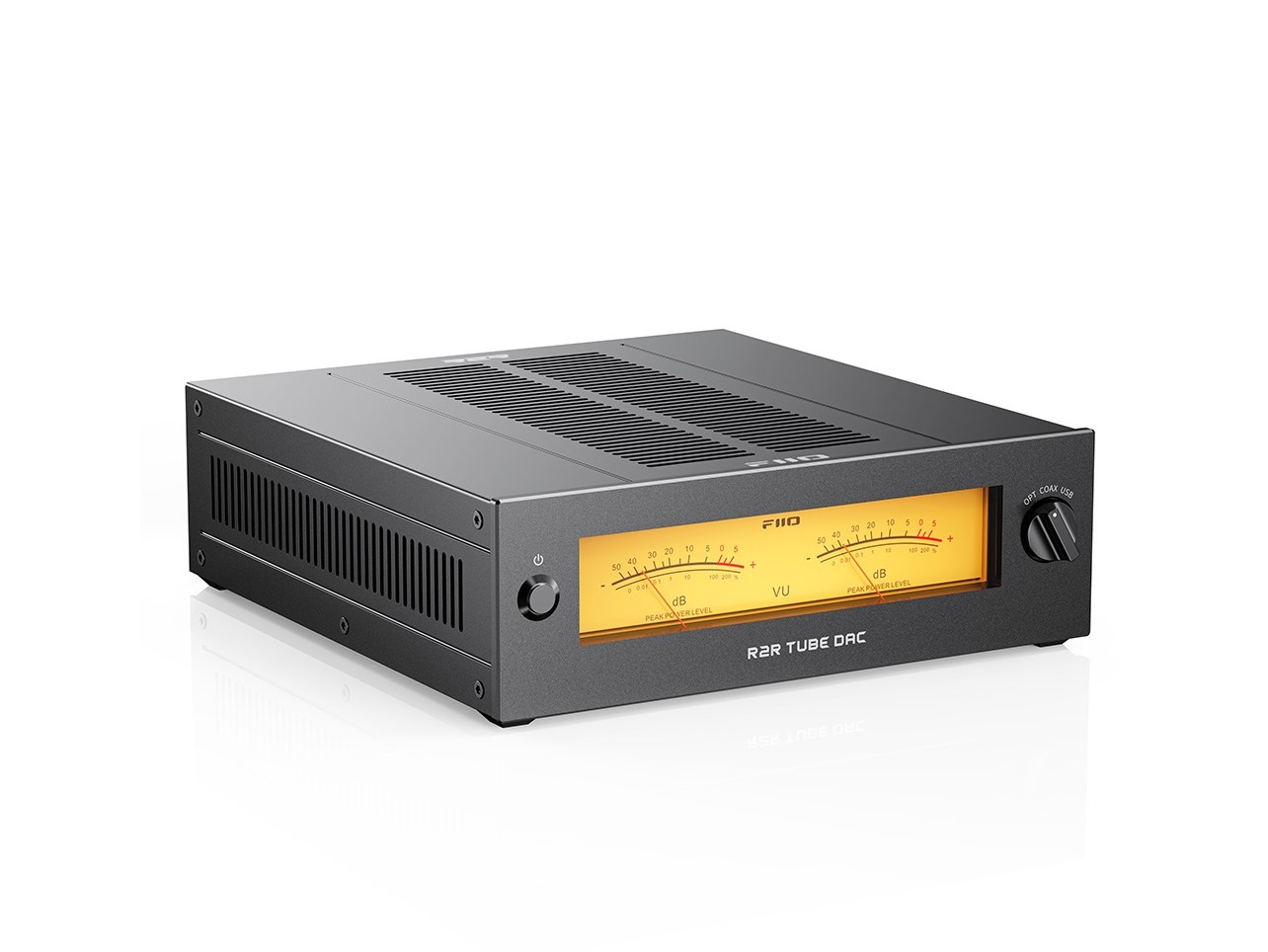

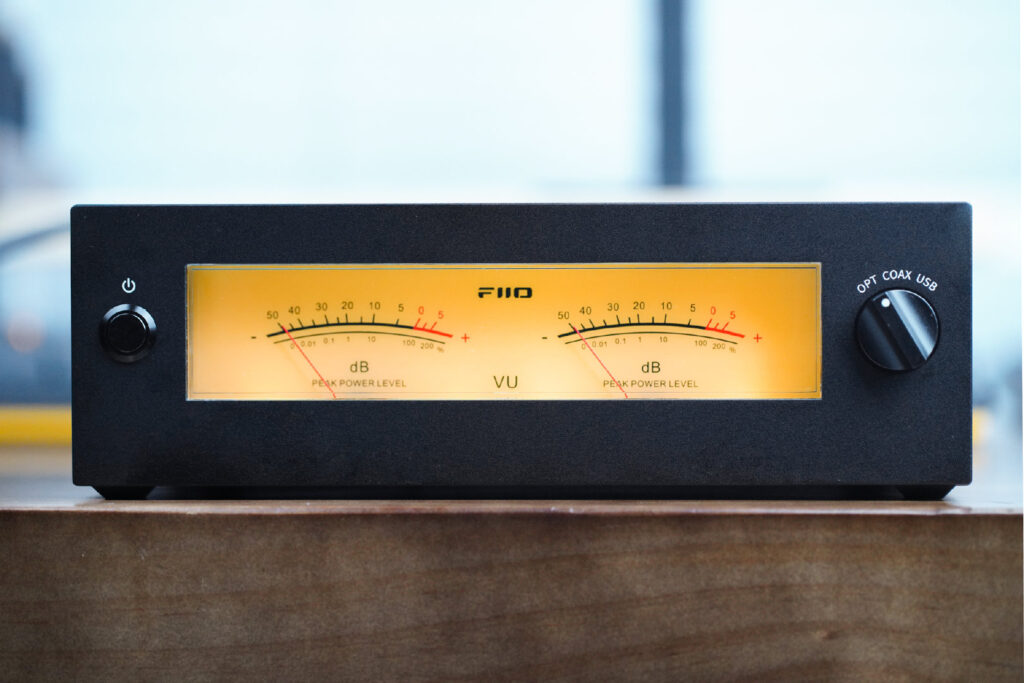

The FiiO WARMER R2R is a fully balanced desktop DAC and preamplifier that blends modern digital engineering with the rich, classic character of tubes. At its core lies a discrete 24-bit R2R ladder DAC for natural, highly musical conversion, paired with four JJ E88CC tubes that add warmth, depth, and a smooth analog texture to any recording. It is designed for listeners who appreciate both precision and emotional engagement in their sound.

With USB, optical, and coaxial digital inputs, along with simultaneous RCA and XLR analog outputs, the WARMER R2R integrates seamlessly into a wide range of audio systems — from computers and streamers to integrated amplifiers and active monitors. Its flexible connectivity and clean signal path make it a versatile centerpiece for both modern and vintage-inspired Hi-Fi setups.

A robust linear power supply with a toroidal transformer ensures stable performance and low noise, while the illuminated VU meters add a nostalgic visual element reminiscent of classic studio gear. By combining elegant design, high-end components, and a uniquely warm sonic signature, the FiiO WARMER R2R stands out as an exceptional choice for audiophiles seeking character, musicality, and refinement in their desktop system.

FiiO Warmer R2R Specifications

Name / Model: WARMER R2R
DAC Architecture: Fully-differential 24-bit R2R resistor array (4-way differential, 192 thin-film resistors)
Analog Stage: Tube buffer with 4 × JJ E88CC tubes
Digital Inputs
USB-C
Optical
Coaxial

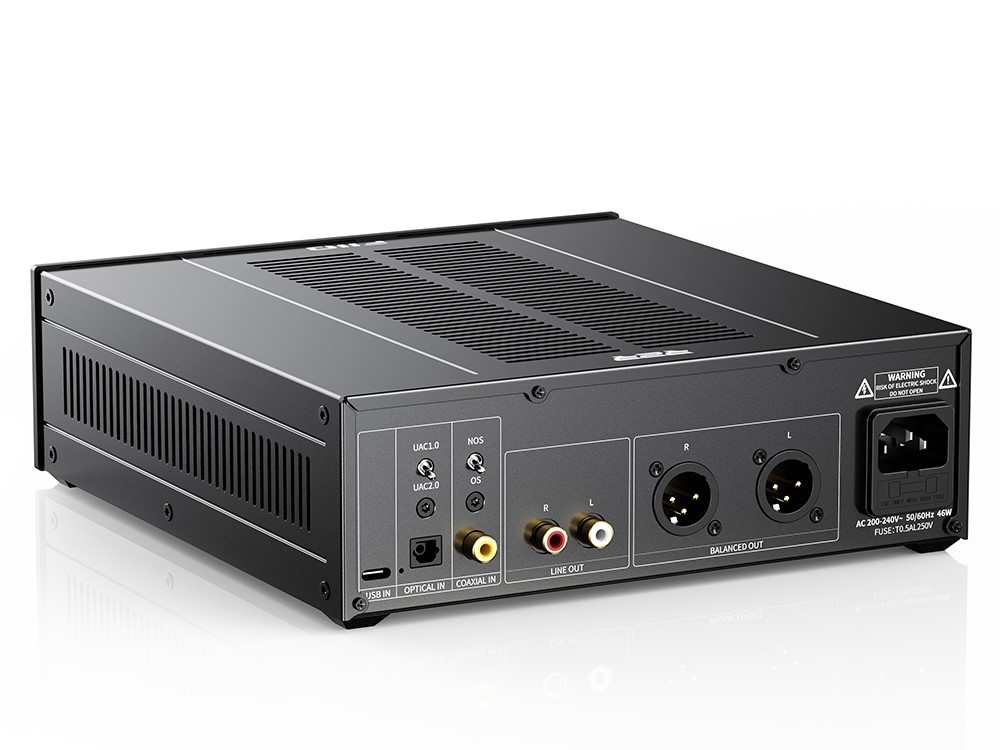

Outputs
RCA single-ended
XLR balanced
Simultaneous RCA + XLR supported
Supported Sampling Rates
USB: up to 384 kHz / 32-bit, DSD256
Coaxial: up to 192 kHz / 24-bit
Optical: up to 96 kHz / 24-bit
Operating Modes: NOS (non-oversampling) / OS (oversampling up to 384 kHz)
Power Supply: Low-noise linear power supply with toroidal transformer (46 W)
RCA Output Performance
THD+N: ~0.052%
SNR: ≥ 112 dB (A-weighted)
Crosstalk: ≥ 96 dB
Noise Floor: < 4.5 μV (A-weighted)
Output Level: 1.8 Vrms
Frequency Response: 20 Hz – 20 kHz (< 0.6 dB), up to 45 kHz (< 2.4 dB)
XLR Balanced Output Performance
THD+N: ~0.053%
SNR: ≥ 114 dB (A-weighted)
Crosstalk: ≥ 104 dB
Noise Floor: < 7 μV (A-weighted)
Output Level: 3.3 Vrms
Frequency Response: 20 Hz – 20 kHz (< 1.5 dB), up to 45 kHz (< 2.4 dB)
Dimensions: 223.5 × 213 × 66.8 mm (with feet)
Weight: 2.86 kg
What’s in the box

FiiO WARMER R2R unit
Power cable
USB-C data cable
Remote control
Spare vacuum tubes (pair)
User manual
Warranty card
