Cocktail Audio X14

Cocktail Audio X14 streamer dac amplifier

Το Cocktail Audio X1 είναι το πιο βολικό και συμπαγές σύστημα HD HiFi All-In One με υψηλής ποιότητας τσιπ DAC και ενσωματωμένο ενισχυτή ισχύος κατηγορίας D. Συνδυάζοντας ένα CD ripper (προαιρετική λειτουργία), μουσική βάση δεδομένων με υψηλής ποιότητας μεταδεδομένα και εξώφυλλο, διακομιστή μουσικής, δέκτη Bluetooth, εγγραφή, streamer δικτύου και μεγάλη οθόνη 5 ιντσών, σίγουρα θα ανακαλύψετε ότι υπάρχουν πολλά να σας αρέσουν αυτό το ευέλικτο σύστημα.

Cocktail Audio X14

The X14 is the most convenient and compact HD HiFi All-In One system with a high quality DAC chip and D-class power amplifier built-in. Combining a CD ripper(Optional function), Music database with high quality metadata and cover art, Music server, Bluetooth receiver, Recording , network streamer and 5 inch big screen, you will surely discover there’s much to like about this flexible system.

Cocktail Audio X14 Features of Hardware and Engineering
Equipped with high-performance Dual Core ARM Cortex A9 processor running at 1.0Ghz
192Khz Stereo CS4350 DAC chip with integrated PLL built-in
Combined with high-performance 30 watts per channel of Class D power amplifier(total 60Watts)
5 inch TFT LCD(800 x 480 pixel) screen built-in on the front for Intuitive User Interface
Bluetooth Receiver(Profile: A2DP, AVRCP / Supported Codec: SBC(Subband Codec), aptX, AAC, MP3)
Giga Fast Ethernet(10/100/1000Mbps) built-in
Support up to 8TB(Tera Bytes) storage like 3.5″/2.5″ hard disk or SSD

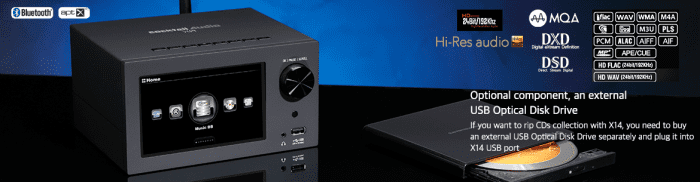

Important Optional Component for CD Ripping: You need to buy an external USB Optical Disk Drive separately if you want to do CD-Ripping with the X14
Versatile Software functionalities and usage
Support various file formats like MQA, DSD(64/128), DXD(24Bit/352.8Khz) including 24Bit/192Khz WAV/FLAC and other audio file formats
Optional function: CD Ripping with professional CD metadata and album cover art provided by Gracenote
Load your vinyl and cassette tape collections to the X14 in hi-res sample rate 192Khz
Play music files in your mobile devices via the X14 through its Bluetooth receiver
Versatile network functions such as UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
Major Music Streaming Services(TIDAL, TIDAL MQA, Deezer, Qobuz, Napster) and Internet Radio(Airable) available
Customized Remote Control App, NOVATRON MusicX for iOS and Android
Provides customized Web Interface(WebUI) for remote control and MusicDB management by PC
Support ‘Roon Ready’, which is the famous Music Player for Music Lovers
You can discover much more wonderful features and functions

All-in One HiFi system, Just add speakers, you will get a great hifi system with versatile functions and various features immediately.
High Performance Digital Amplifier built-in. The X14 has D-class power amplifier built-in with rated output total 60Watts @1Khz, 8 ohm, 1% THD
Great Sound Quality created by X14. A perfect combination of circuit design technology and qualified major components like DAC, Amp, etc will deliver wonderful sound to music lovers
High Performance System Resources and custom-designed software. Based on Dual Core ARM Cortex A9 processor running at 1.0GHz and custom-designed software, the X14 got everything ready for delivering powerful operation performance, plenty of features and functions created by advanced software developed by in-house R&D team.
Support various Hi-Res audio formats. MQA, DSD64, DSD128, DXD(24Bit/352.8KHz), HD FLAC(24Bit/192KHz), HD WAV(24Bit/192KHz), CAF, APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, Ogg Vorbis, PCM, M3U, PLS, etc
Bluetooth built-in with aptX supported The X14 offers Bluetooth receiver which allows you to play music files in your mobile devices via the X14. It supports A2DP and AVRCP profiles and SBC(Subband codec), aptX, AAC and MP3 codec.
Optional function, CD-Ripping with Gracenote CD metadata and album cover art. If you want to rip your CDs collections to X14 MusicDB, you need to buy an external USB Optical Disk Drive, and plug it into X14 USB host port. You can load all your CDs onto the MusicDB of X14 in FLAC, ALAC, WAV or MP3 file format easily
Music Database function. The X14 has a well-organized Music Database built-in, which offers very nice and convenient functions like SEARCH, Display by text or cover art, SORT, etc
Recording with 192Khz hi-res sampling rate. The X14 offers a recording function for internet radio, and Analog In. You can make your own digital music collection with 192Khz hires sampling rate and beautiful sound
Auto/Manual Editing for the recorded files. Very smart auto/manual editing function for the recorded files is available at the X14. You can easily edit the recorded files and make a nice digital music file collection
5 inch big screen will let you control the X14 easily with intuitive GUI and display cover art and all information for a playing song
Enough Storage for Music Server. 3.5″/2.5″ SATA hard disk and Solid State Drive(SSD) are accepted to the X14, which supports up to 8TB capacity. You can install a storage easily thanks to a customized storage drive bay
Versatile Networking and Remote Control with a Customized App. Connect the X14 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or Web Interface
Control remotely by mobile devices with Customized Remote Control App, MusicX. Connect the X14 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or Web Interface
Control remotely by PC with Web Interface. You can control the X14 by your PC thanks to its Web Interface function
Support various network protocols like UPnP Server/Client/Renderer, Samba Server/Client. You can stream songs to and from other compatible devices in the same network
AirPlay and Spotify Connect. You can play songs from iOS devices and musics from Spotify on the X14 wirelessly
Major Music Streaming Services integrated. You can access tens of thousands of internet radio stations and online music services like TIDAL, Deezer, Qobuz, Napster and Spotify Connect.
Control X14 by Roon. As X14 supports ‘Roon Ready’, you can control X14 with Roon, which is a great music player for music lovers

Cocktail Audio X14 Specifications
Host CPU & Memory CPU : Dual Core ARM Cortex A9 running at 1.0GHz
Main Memory : DDR-1066 1GByte
EMMC 8GByte
CD Player
(Optional) Type External USB Optical Disk Drive
If needed, user should buy an external USB optical disk drive separately for CD-Ripping or CD Playing
Display 5 inch TFT LCD (800 x 480 pixels)
Interface Key & Knob, IR Remote Control, Customized Remote App for iOS & Android devices and Web Interface (WUI)
Amp built-in Rated output : 30W + 30W @ 1Khz, 8 ohm, 1% THD

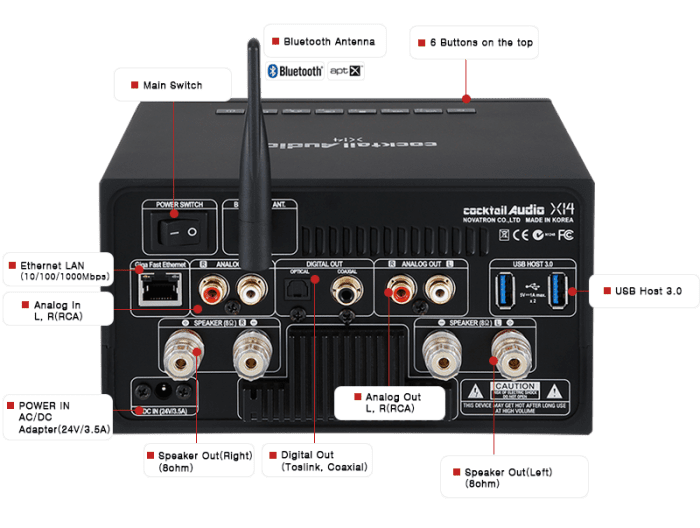

Analog Out
(Volume controllable) PRE-OUT (L & R RCA) Dynamic Range : 109dB (Max 2Vrms, Stereo)
THD+N: 0.001%
Unbalanced(PRE-OUT) RCA, Dynamic Range : 130dB (Max 2Vrms, Stereo) THD +N: 0.0004%
Headphone Out 3.5mm jack on the front, 150mW+150mW@1Khz,16 ohm, 0.1% THD
Digital out
(Volume controllable) Toslink x 1 Supported Sample Rate : up to 24bit/192Khz
COAXIAL x 1 SPDIF 75ohm RCA, Supported Sample Rate : up to 24bit/192Khz
Analog Input LINE In x 1 L & R RCA at the rear, default 2Vrms(controllable 1~4Vrms)
Bluetooth Bluetooth Receiver with A2DP, AVRCP profiles / support AAC and aptX
Connectivity 3 x USB Host ports(USB3.0/5V1A x 2, USB2.0/5V1A x 1)
Network Wired GigaFast Ethernet (10/100/1000Mbps) LAN
Wireless (Optional) 801.11b/g/n WiFi USB dongle (Optional)
Supported Storage 2.5” SATA HDD, SSD and 3.5” SATA HDD up to 8TB
* Supported file system: Linux, NTFS, FAT32.
Supported OSD Languages English, German, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, Russian, Danish, Korean (To be added by request)
Network protocol supported UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
Internet Services Internet Radio Airable
Online Music Service TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect
* Subscription required
Power (AC/DC Adapter) INPUT 100 – 240Vac, 50/60Hz (free voltage)
OUTPUT 24V/3.5A
Dimension 180mm (W) x 100mm (H) x 150mm (D)
※ Specification to be changed without notification
