Zidoo Neo S

4K Hi-end Media player NEO S

Το Neo S της Zidoo είναι μια all in one συσκευή η οποία αποκωδικοποιεί και αναπαράγει ψηφιακά αρχεία μουσικής ή ταινιών. Επιπλέον το Neo S είναι και εξαιρετικός ενισχυτής ακουστικών. Το Zidoo Neo S είναι μια εντυπωσιακή συσκευή κατασκευασμένη από κράμα αλουμινίου Στην πρόσοψη της συσκευής κυριαρχεί η μεγάλη 5 ιντσών OLED οθόνη στην οποία και απεικονίζονται οι λειτουργίες και οι ρυθμίσεις της συσκευής. Το Neo S ενσωματώνει διπλά DAC ES9068 δίσκο SSD για ταχύτατη λειτουργία με διπλά τροφοδοτικά για το ψηφιακό/αναλογικό τμήμα με τοροειδείς μετασχηματιστές. Το Zidoo Neo S είναι Asynchronous USB DAC υποστηρίζει αρχεία εως και DSD512 και 768kHz/ 32bit PCM ενώ είναι fully balanced design και διαχειρίζεται CD-quality lossless αρχεία όπως FLAC, WAV, APE, DTS.

NEO S is a new product which is all-round, high-performance and cost-effective
Provide excellent audio and video quality to users
NEO S is an all-in-one device with functions like HiFi music digital decoding,
streaming playback, headphone amplifier functions and movie playback
NEO S inherits NEO X’s craftsmanship with aluminum thickened chassis and 5-inch OLED
Built in with SSD, dual ES9068 DAC, dual digital/analog power supply modules and toroidal power supply.

• Anti-vibration design Resonance suppressing stiffener structure Shock-absorbing foot pads
• Technological aesthetics Beautiful modular professional circuit design Unique shielding treatment
• High Speed SSD
  NEO S is equipped with a 256G high speed SSD for local music playback. High-quality music files can be easily stored, data reading is stable and fast. Heating and noise problem of traditional mechanical hard disk can be avoided
• OLED Touch Screen

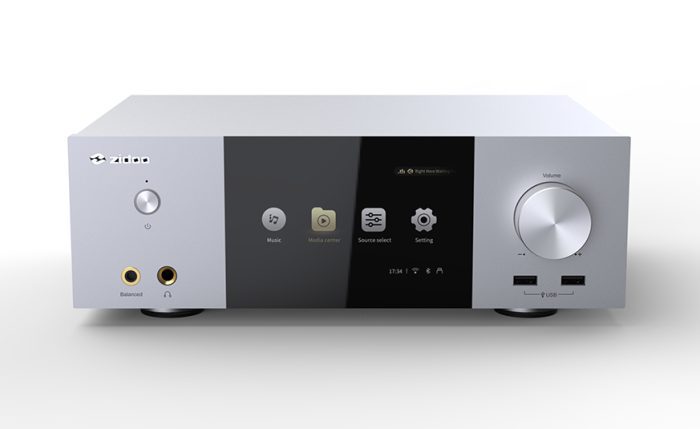

  The 5-inch OLED high-definition colorful touch screen is beautiful embedded full-screen design. Practical operations can be done with the collaboration of knobs, such as audio source switching, volume adjustment, system setting and playback status display
• Fever grade dual ES9068 DAC
  NEO S firstly uses two ES9068 DAC as the core of audio decoding. Two-channel audio is decoded independently to avoid interference and get better SNR and dynamic range. Supporting up to DSD512, PCM768@32bit and three-layer 8 times expanded MQA encoding format hardware decoding
• Dual Discrete Power Supplies
  Separate digital and analog power supplies to eliminate interference
  which significantly improves the sound purity
  Linear power supply designed for analog audio circuits
  which is composed of multi-winding large toroidal transformers
  Switching power supply with lower ripple and magnetic leakage interference
• Multiple digital inputs

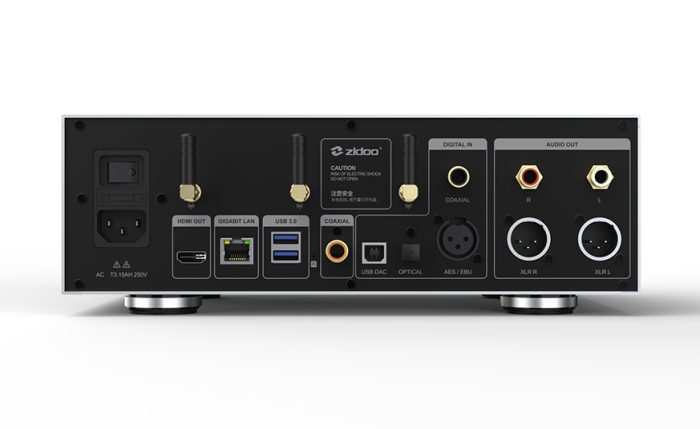

  Multiple ports including USB DAC, Optical, Coaxial and AES/EBU input
  Support various devices like turntables and CD players
  Perfect sound quality by the dual high-performance DAC
• Asynchronous USB DAC
  NEO S is just a good solution for PC HiFi enthusiasts
  USB DAC input supports asynchronous digital signal processing
  Which can be used as a sound card when connected to PC
  Also a professional USB DAC for IOS/Android phones or tablets via OTG
• High-performance headphone amplifier
  Monitor amp module is built in NEO S, 4.4 balance and 6.35 headphone jacks are available. Fully-balanced voltage design and graded amplified current provide high current thrust. Two gain modes correspond to different impedance ranges of headphone. The ultimate sound quality is comparable to desktop headphone amplifier
• Fully Balanced Circuit
  NEO S circuit adopts fully balanced design with better noise immunity and low distortion filtering technology. Channel separation is improved and signal is stable by eliminating the common return circuit. Buffering and amplification of multi-level operational amplifiers completely simulate signal processing path and bring natural sound quality
• HiFi Components
  In order to achieve the monitor-level HiFi sound quality, NEO S adopts good circuit design, immersion gold main board, 6 operational amplifiers and selected HiFi components such as NICHCON, WIMA and ELNA
• MQA (Master Quality Authenticated) is an award-winning British technology
  that delivers the sound of the original master recording
  The master MQA file is fully authenticated and is small enough to stream or download
  NEO S adopts MQA technology to receive and decode MQA audio and provide master-level sound
• Master Tape Music Playback
  NEO S is a powerful music player supporting CD-quality lossless formats
  Like FLAC, WAV, APE, DTS, etc.
  Advanced master tape music MQA, DSD512 (SACD ISO/DFF/DSF/DSD)
  And various sampling formats seamless playback
• Intelligent Music Library
  NEO S is good at managing music resource
  Music files from network drives and local hard drive can be added conveniently
  Matching and generating music library databases automatically
  Just enjoy music collection, management and playback in a easy way
• Multiple Music Streaming Services
  NEO S supports rich network streaming music services like Airplay/DLNA/Roon; Music in smart phones, computers and tablets can be simply pushed to NEO S
• Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that ZIDOO network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and ZIDOO deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.
• Bluetooth APTX HD
  We can easily enjoy music by connecting NEO S with cell phone via Bluetooth. Qualcomm flagship CSR8675 module supports APTX and LDAC lossless audio compression technology, which can overcome bandwidth barriers in standard technology. Even if audio is transmitted via Bluetooth, CD-level sound quality can be achieved
• CD Ripping and Playback
  NEO S supports CD ripping and playback when connecting with CD-ROM via USB port
  Names of albums/songs can be smartly matched by the ID of CD via special HASH
  Ripped files can be collected and managed in ZIDOO Music Player
• 4K UHD Image Quality
  NEO S adopts RTD1619 DR hexa-core 64-bit A55 processor. In addition to efficient and stable system, it has also equipped with 4K UHD decoding and processing technology. BD UHD Blu-ray disc and self-made media files are supported, and up to 3840 x 2160 60Hz, HDR and BT.2020 wide range
• HDR Technology
  NEO S not only supports ordinary high dynamic range HDR10 and HLG, but also advanced technology HDR10+ and Dolby Vision. Dolby Vision metadata processing technology can provide 4000nit peak brightness and 12Bit (around 68 billion) output. Stunning brightness, contrast and natural colors bring excellent image quality
• Wide Color Range
  NEO S can output up to 4K 60P
  Automatic resolution switching and precise frame rate (23.976) output
  RGB, YVU4:4:4, 4:2:2 and 4:2:0 and other color range are supported
• Network Protocols
  Multiple network protocols NFS, SMB v1/v2/v3 and UPnP work well. Files in NAS or network drives can be accessed effectively and stably via gigabit LAN. Meanwhile, SMB sharing is supported to share files from local hard disk to other devices
• Mobile Controller App
  NEO S can be controlled by mobile phone and tablet APP. Besides, mobile phone APP can display Poster Wall, Music Player and system setting. Program search and system setting can be done in the background without affecting movie playback
• Specification
  Model NEO S
  Display 5-inch OLED HD touch screen
  Chassis Aviation aluminum alloy
  CPU Realtek RTD1619DR ARM Cortex-A55(hexa-core)
  GPU ARM Mali-G51 MP3
  Internal SSD 256G SSD (M.2 SATA 3.0 2280, up to 1TB)
  Audio DAC ESS 9068*2
  Wi-Fi 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
  Ethernet RJ-45(10/100/1000Mbps)
  HDMI Output 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output)
  Support audio passthrough
  Video Decoding 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
  Audio Decoding Support true-hd HD audio passthrough, stereo PCM decoding
  Built-in DAC audio decoding: support up to stereo DSD512, PCM 768KHz 32Bit, MQA
  Bluetooth Audio Input CSR8675 flagship Bluetooth audio module(BT5.0)
  Support lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
  USB Audio Input USB audio compatible system: Windows(7,10), Mac, Android
  Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
  Digital Audio Input USB DAC IN, AES/EBU input, Coaxial input, Optical input
  Digital Audio Output Coaxial output, HDMI output, USB Audio output, Bluetooth output
  Analog Audio Output Preamp output: XLR(balanced), RCA
  Headphone amplifier output: 4.4mm balanced, 6.3mm single-ended
  Headphone Impedance 16-300Ω(low-gain mode: 16-32Ω; high-gain mode: 32-300Ω)
  XLR(balanced) Output Output Level(Vrms): 4.1 Vrms
  THD+N: -118dB
  Noise: 2uVrms
  SNR: 120dB(20Hz-20kHz)
  Frequency Response: ±0.25dB(20Hz-20kHz)
  Crosstalk: -120dB(1kHz,Fs=44.1kHz)
  DNR: 119dB
  RCA(single-ended) Output Output Level(Vrms): 2.16 Vrms
  THD+N: -116dB
  Noise: 2.5uVrms
  SNR: 119dB(20Hz-20kHz)
  Frequency Response: ±0.258dB(20Hz-20kHz)
  Crosstalk: -130dB(1kHz,Fs=44.1kHz)
  DNR: 118dB
  Headphone 4.4mm Balanced Output(low-gain mode) Output Level(Vrms): 2.26Vrms
  Output Power/Impedance: 310mW/32Ω
  THD+N: -116dB
  Noise: 1.7uVrms
  SNR: 118dB(20Hz-20kHz)
  Frequency Response: ±0.25dB(20Hz-20kHz)
  Crosstalk: -128dB(1kHz,Fs=44.1kHz)
  DNR: 118dB
  Headphone 4.4mm Balanced Output(high-gain mode) Output Level(Vrms): 4.1Vrms
  Output Power/Impedance: 110mW/300Ω
  THD+N: -118dB
  Noise: 3.5uVrms
  SNR: 120dB(20Hz-20kHz)
  Frequency Response: ±0.25dB(20Hz-20kHz)
  Crosstalk: -130dB(1kHz,Fs=44.1kHz)
  DNR: 119dB
  Headphone 6.3mm Single-Ended Output(low-gain mode) Output Level(Vrms): 1.5Vrms
  Output Power/Impedance: 138mW/32Ω
  THD+N: -114dB
  Noise: 3.2uVrms
  SNR: 116dB(20Hz-20kHz)
  Frequency Response: ±0.25dB(20Hz-20kHz)
  Crosstalk: -128dB(1kHz,Fs=44.1kHz)
  DNR: 115dB
  Headphone 6.3mm Single-Ended Output(high-gain mode) Output Level(Vrms): 2.7Vrms
  Output Power/Impedance: 47mW/300Ω
  THD+N: -114dB
  Noise: 3.5uVrms
  SNR: 118dB(20Hz-20kHz)
  Frequency Response: ±0.25dB(20Hz-20kHz)
  Crosstalk: -132dB(1kHz,Fs=44.1kHz)
  DNR: 118dB
  USB Ports USB3.0*2, USB2.0*2
  Control Ports IR IN, Bluetooth, TCP/IP control(WOL)
  Power Supply AC 110~240V 50/60Hz
  Dimensions 213(L)*292(W)*101(H)mm
  Packing List Remote control*1, Power cable*1, Antennas*3, Product manual*1
