Furman PS-8RE III

Περιγραφή

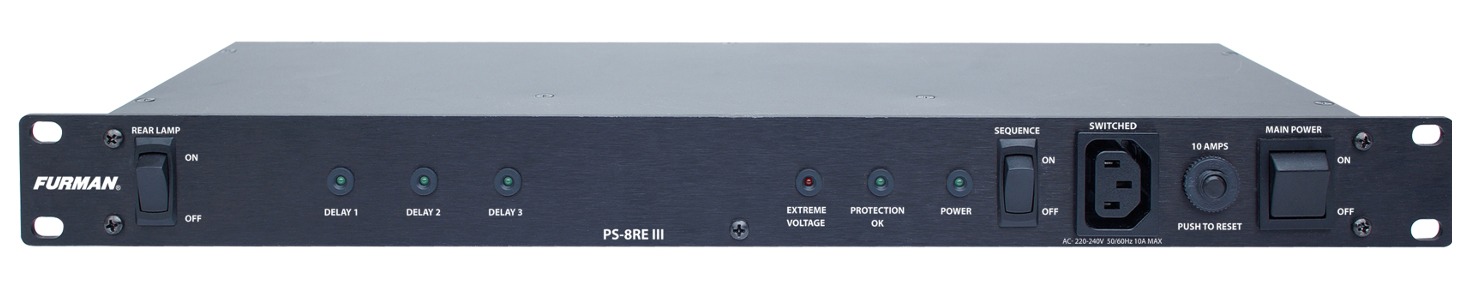

Furman PS-8RE III

Furman PS-8RE III

Το πιο ευρέως αναγνωρισμένο και αξιόπιστο όνομα στον κλιματισμό AC είναι περήφανο που παρουσιάζει τον επεξεργαστή/sequencer ισχύος PS-8RE III, που διαθέτει την επαναστατική τεχνολογία SMP της Furman, LiFT, EVS και TVZ-MOV υψηλού ρεύματος.

Το κύκλωμα προστασίας πολλαπλών σταδίων (SMP) της σειράς Furman διαθέτει επίσης την αποκλειστική μας τεχνολογία γραμμικού φίλτρου (LiFT) με διακοπή λειτουργίας σε ακραία τάση (EVS) και TVZ-MOV υψηλού ρεύματος. Μαζί, αυτές οι τεχνολογίες αποτελούν, αναμφίβολα, τον πιο προηγμένο και ολοκληρωμένο καταστολέα υπερτάσεων παροδικής τάσης στον κόσμο.

Furman PS-8RE III

The most widely recognized and trusted name in AC power conditioning is proud to introduce the PS-8RE III power conditioner / sequencer, featuring Furman’s revolutionary SMP technology, LiFT, EVS and a high current TVZ-MOV.

Furman’s Series Multi-Stage Protection (SMP) circuit also features our exclusive Linear Filter Technology (LiFT) with Extreme Voltage Shutdown (EVS) and a high current TVZ-MOV. Together, these technologies comprise what is, without question, the world’s most advanced and comprehensive transient voltage surge suppressor

Furman PS-8RE III – SMP (Series Multi-Stage Protection Plus)
SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman’s SMP, damaging transient voltages are safely absorbed, clamped and dissipated – no sacrificed parts, no service calls, no down time.

Unique to Furman’s SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of – USA/CIDA’s A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman’s SMP clamps at 376VAC peak, 266 VAC RMS even when tested with multiple 6000VAC – 3000 Amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.

Furman PS-8RE III – LiFT (Linear Filtering Technology)
Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.

Furman PS-8RE III – E.V.S. (Extreme Voltage Shutdown)
Furman’s trusted overvoltage circuitry protects against all too frequent accidental connections to high voltages by shutting off the incoming power until the overvoltage condition is corrected.

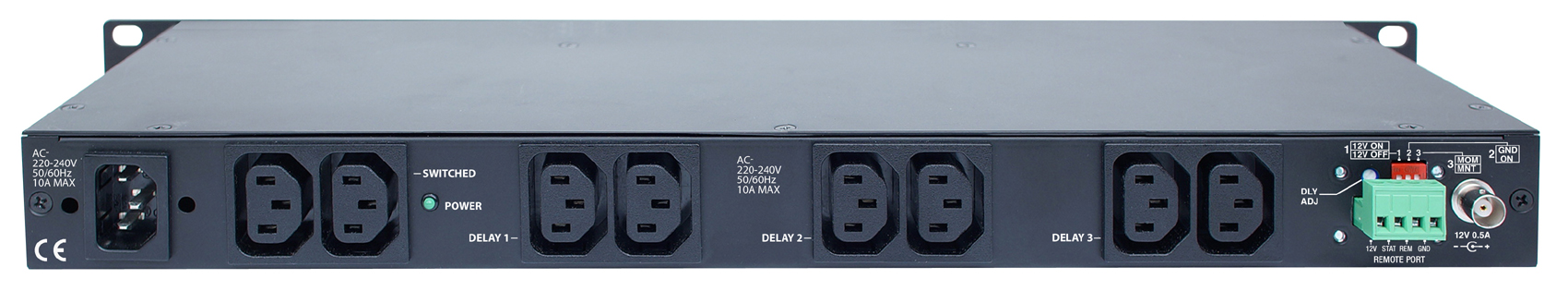

Furman PS-8RE III – Rear Panel BNC Connector
For rear panel illumination, a BNC connector is provided for connection of any standard gooseneck lamp, such as the Furman GN-LED or GN-I (sold separately).

Furman PS-8RE III – Sequencing
The PS-8RE III Power Conditioner/Sequencers is capable of powering up a rack full of equipment in a 3-step delayed sequence. The sequence is reversed for power-down. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided f

Furman PS-8RE III Features:

Series Multi-Stage Protection (SMP) for virtually maintenance free protection from surges and spikes – no sacrificed parts, no service calls, and no downtime
Furman’s unequaled Linear Filtering Technology (LiFT) rids systems of AC line noise for consistent audio/video clarity
Automatic Extreme Voltage Shutdown (E.V.S.) powers down equipment during a prolonged extreme over-voltage
Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel switched outlet
Momentary and Maintained sequencing via rear panel terminal block or front panel switch
10 amp rating

Furman PS-8RE III – Technical Specifications
Family Contractor Series 240V
Line Voltage 240 Volts
Maximum AC Current Rating 10 Amps, 220 – 240 VAC @ 50 – 60Hz (Thermal breaker)
AC Cord 1 mm² x 3, 2.5 m length, IEC-C13 (Female) to CEE-7/7 Schuko plug
AC Inlet IEC-C14 (Male) with metal wire retainer clip
AC Outlets Convenience Outlet (Front Panel): 1 Switched IEC C-13
Rear Panel Outlets: 2 Switched IEC C-13 (1 duplex), 6 Sequenced IEC C-13 (3 duplexes each controlled by separate relay)
Spike Protection Mode
Line to neutral, zero ground leakage
Spike Clamping Voltage 376VAC peak @ 6,000 Volts/3,000 Amps
Response Time 1 nanosecond
Maximum Surge Current 6,500 Amps
AC Over-voltage Protection EVS, 275VAC +/- 5VAC
AC Over-voltage Reset Modes Auto
Series Multi-Stage Protection Yes
AC Filtering LiFT Noise Attenuation 10dB @10KHz, 40dB@100KHz, 50dB@500KH
Dimensions
Length: 21.9 Inches
Width: 12.2 Inches
Height: 3.5 Inches
Weight 8.25 lbs
UPC 654061041085
